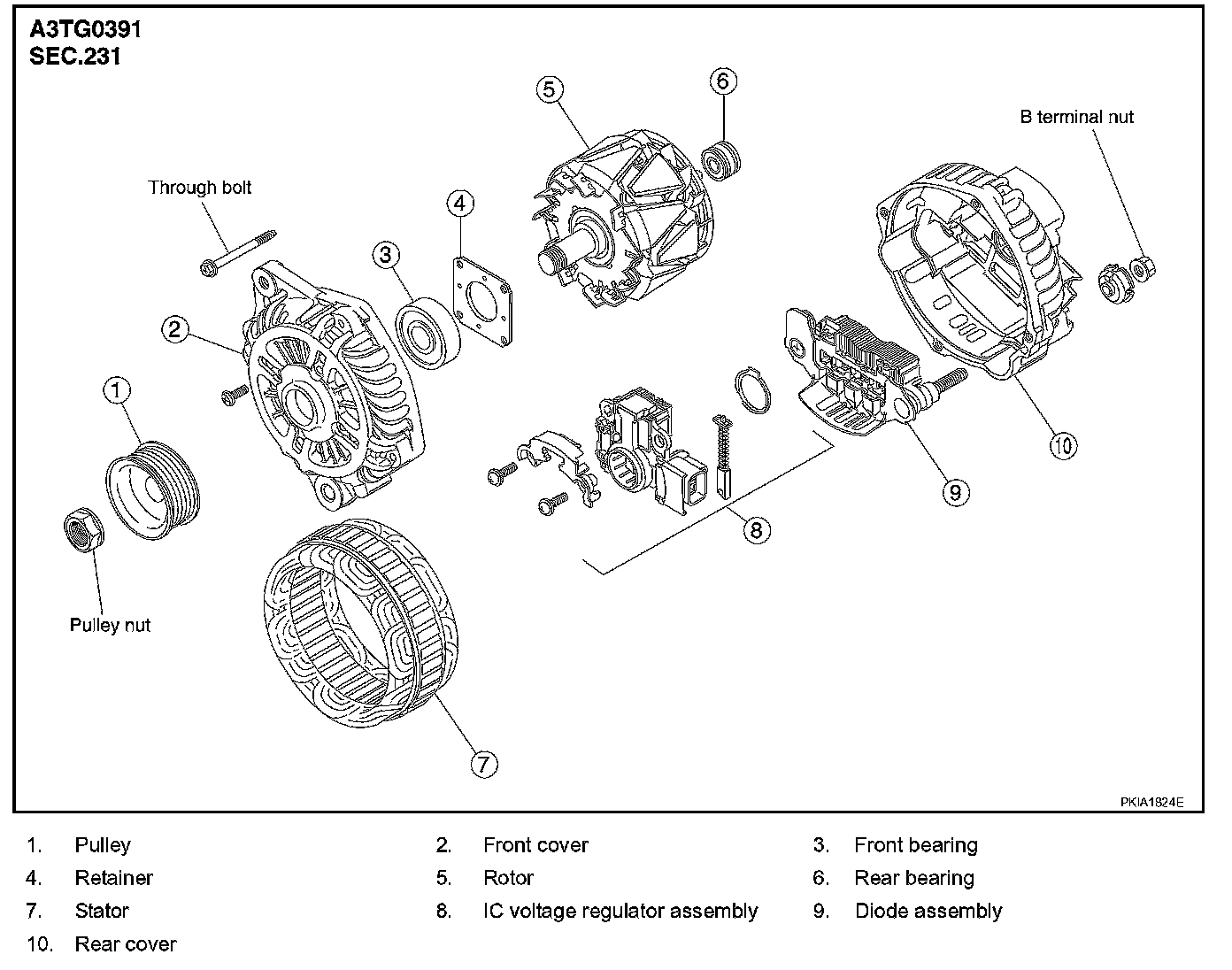

Disassembly and Assembly

Disassembly and Assembly






Through bolt:
Torque: 3.5 - 5.3 Nm (0.36 - 0.54 kg-m, 31 - 47 in-lb)

Pulley nut:
Torque: 99 - 137 Nm (10.1 - 14.0 kg-m, 73 - 101 ft-lb)
