Starter Motor
>>
Service and Repair
>>

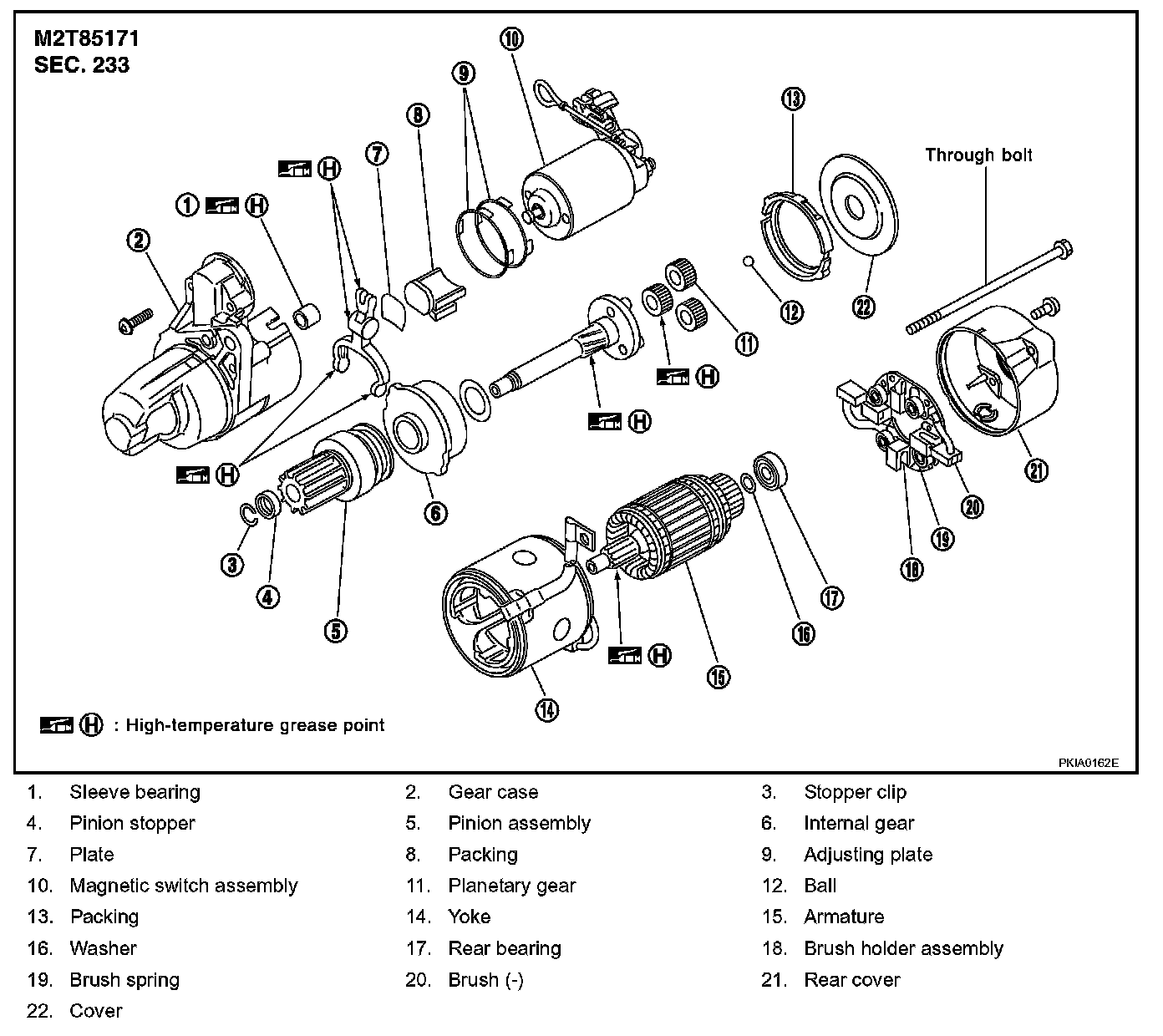

Disassembly and Assembly
Disassembly and Assembly
Through bolt:
Torque:
5.6 - 10.4 Nm (0.57 - 1.06 kg-m, 49.5 - 92 ft-lb)
