Tracking Mode

Tracking Mode






1. Start the engine.

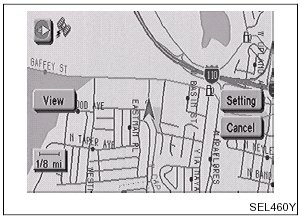

2. Push the "MAP" switch.
3. Touch "Setting".

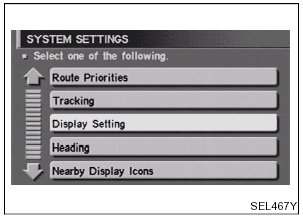

4. Touch "System Setting".






5. Touch "Tracking".






6. Touch the "On" or "Off" icon.
- If you don't need a trail on the map, select "Off".
- If you need a trail on the map, select "On".

7. Push the "MAP" switch to return the display to the current location map.

NOTE: When a trail display is turned OFF, trail data is erased from the memory.
