Vehicle Speed Sensor Motor

DTC VEHICLE SPEED SENSOR-MTR

Description
The vehicle speed sensor-MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle speed sensor.MTR.

TCM TERMINALS AND REFERENCE VALUE





Remarks: Specification data are reference values.





ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE





CAUTION:
^ Always drive vehicle at a safe speed.
^ If conducting this "DTC CONFIRMATION PROCEDURE" again, always turn ignition switch "OFF" and wait at least 5 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II





1) Turn ignition switch "ON" and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
2) Start engine and accelerate vehicle from 0 to 25 km/h (0 to 6 MPH).

No Tools





1) Start engine.
2) Drive vehicle under the following conditions: Selector lever in "D" position and vehicle speed higher than 25 km/h (16 MPH).
3) Perform self-diagnosis. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools).

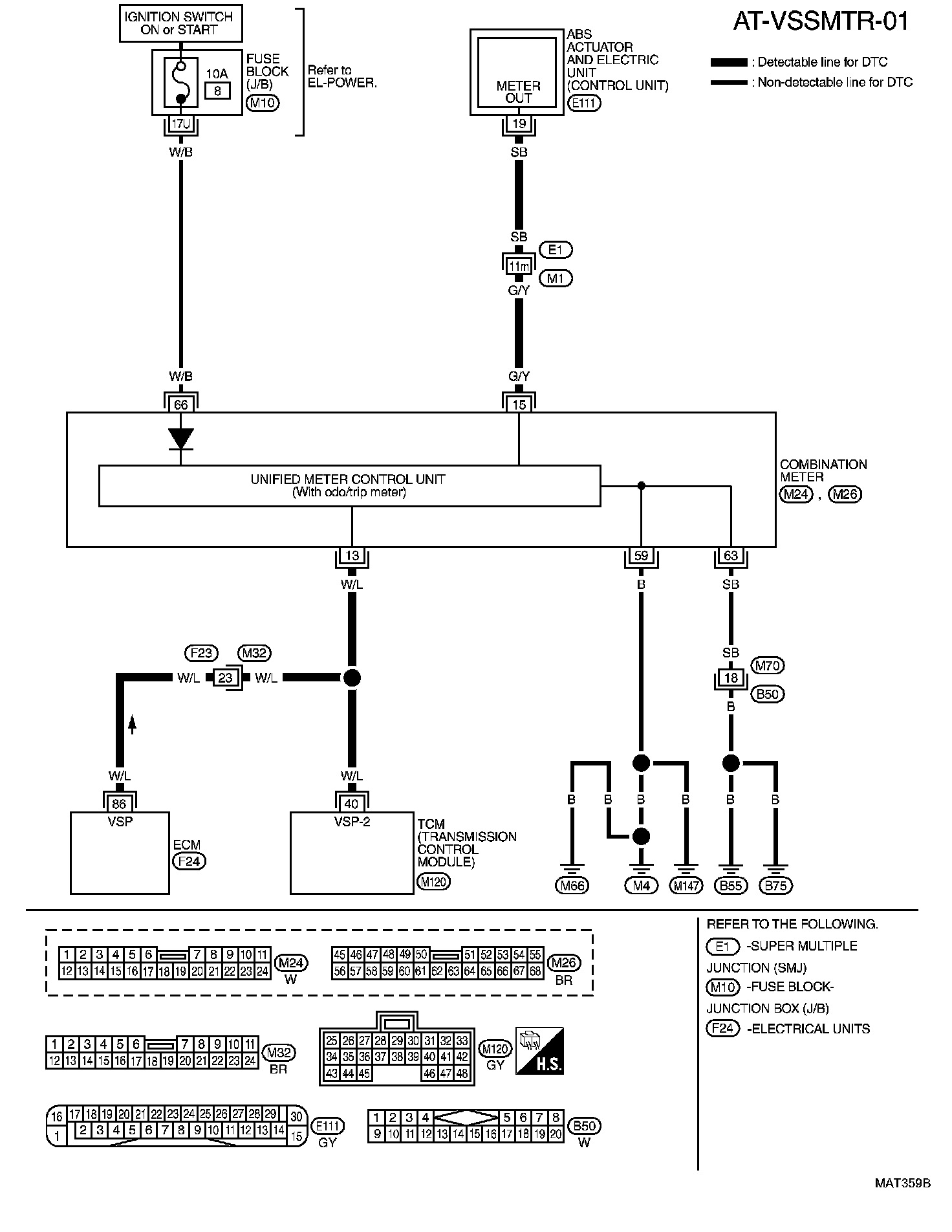

Wiring Diagram - AT - VSSMTR

Test 1 Of 4:

Test 2 Of 4:

Test 3 Of 4:

Test 4 Of 4:

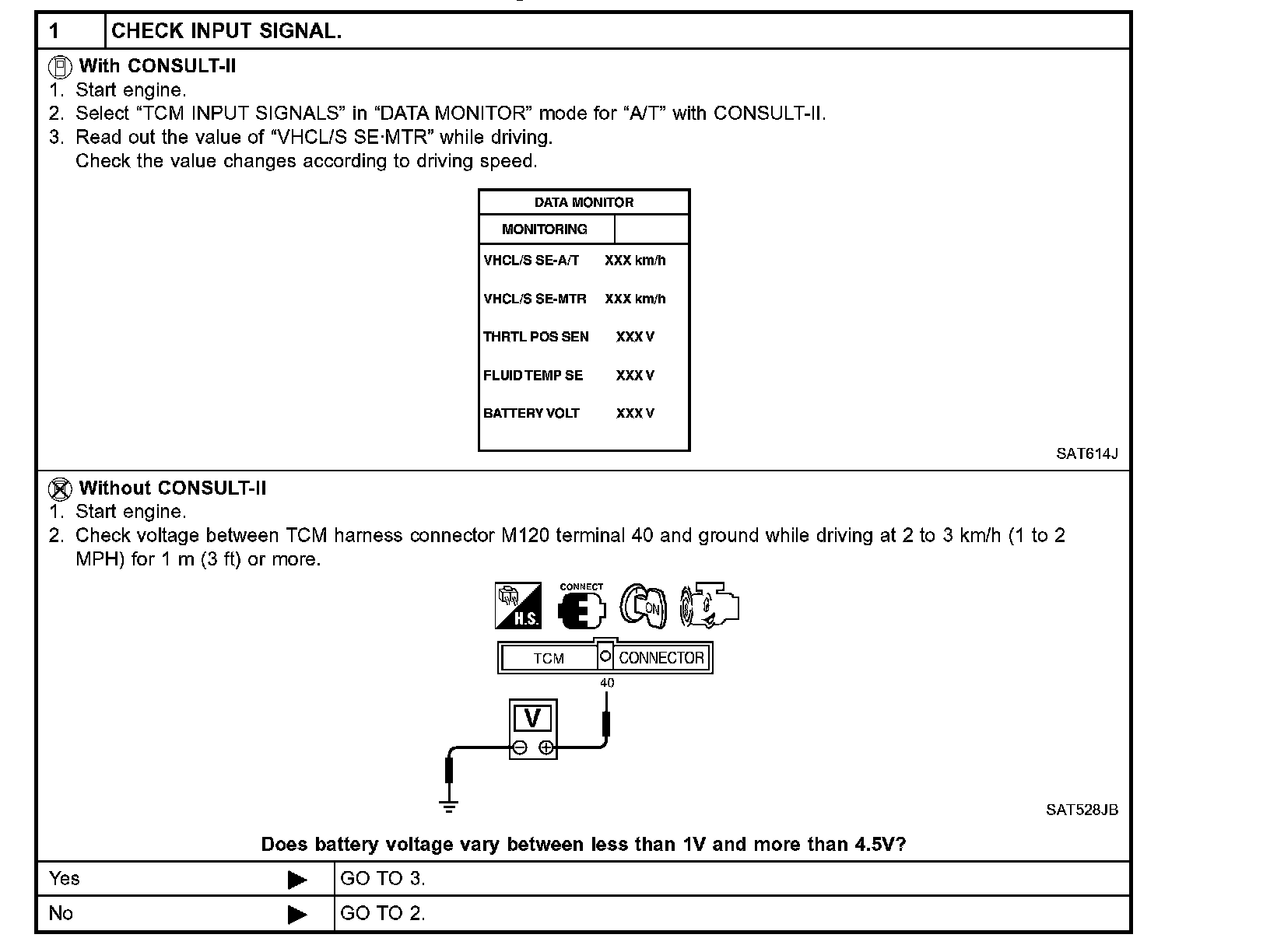

Diagnostic Procedure
