Map Light Bulb: Service and Repair

MAP LAMP

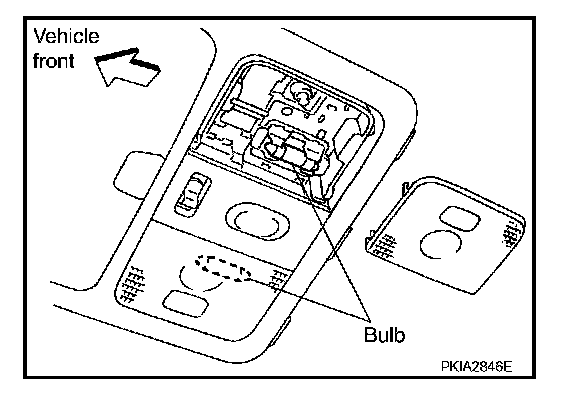

Bulb Replacement

1. Remove lens using clip driver or suitable tool.
2. Remove bulb.

Map lamp : 12 V - 8 W

3. Install in the reverse order of removal.
