Symptom Chart

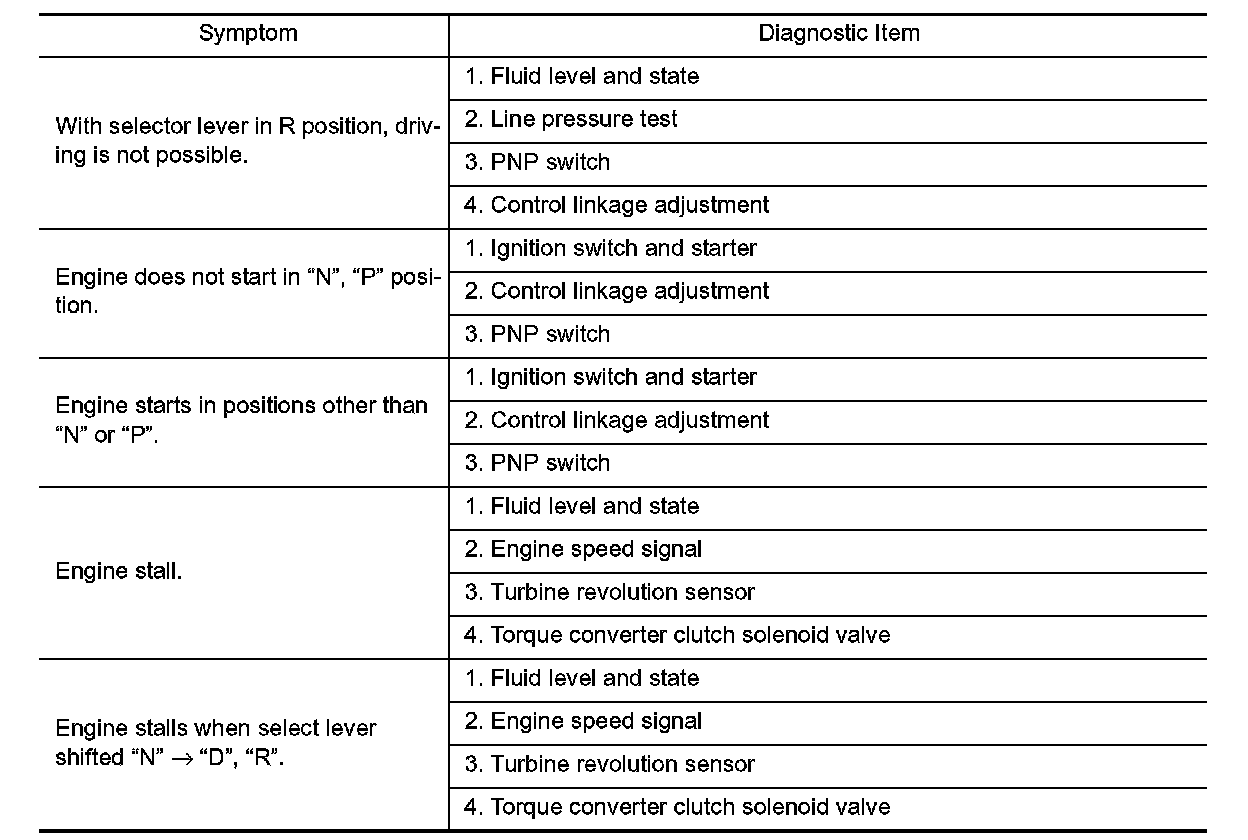

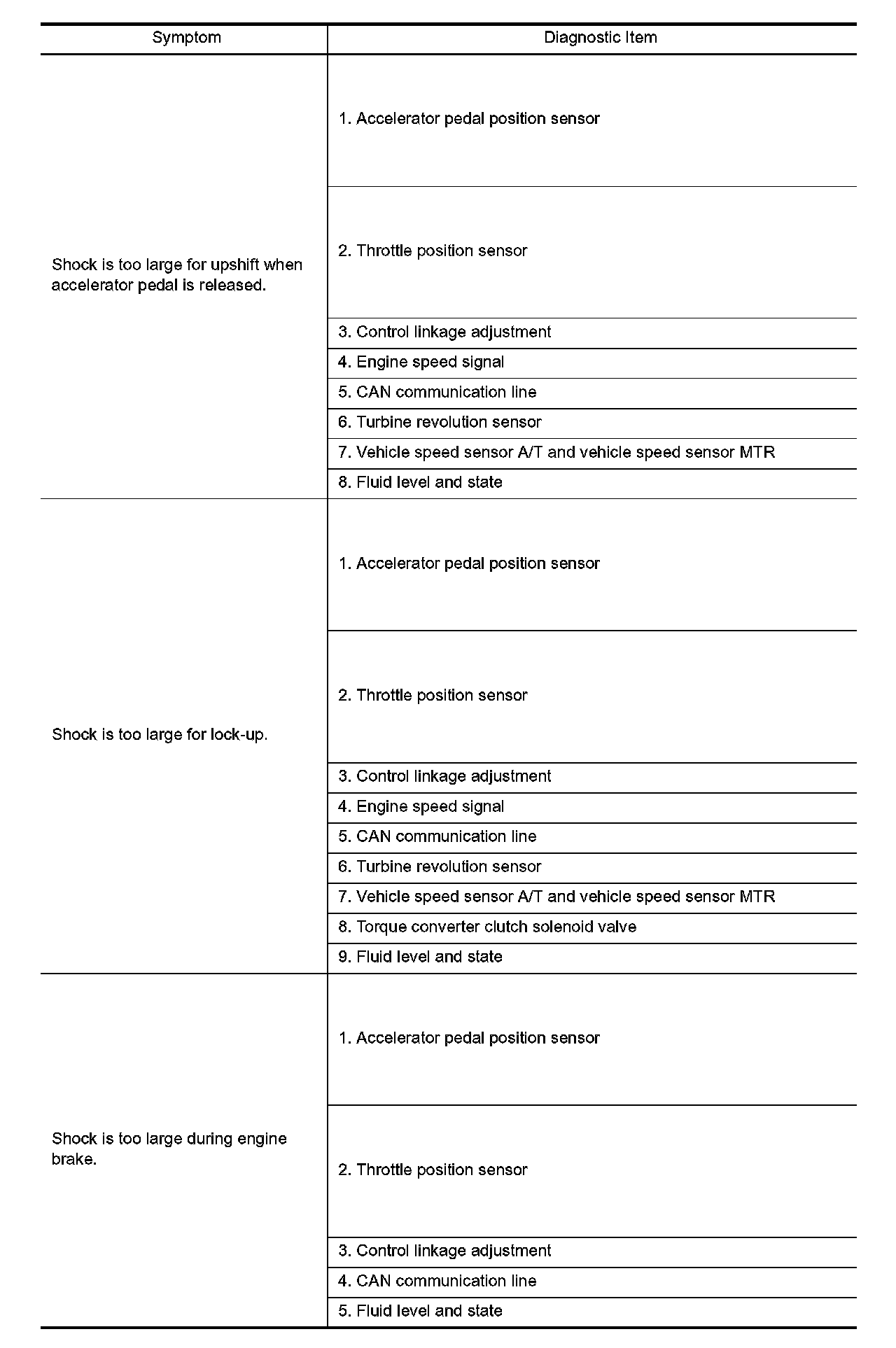

Symptom ChartThe diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.
CAUTION:
^ If any malfunction occurs in the RE5R05A transmission, replace the transmission assembly.
^ Condition for "on vehicle" only

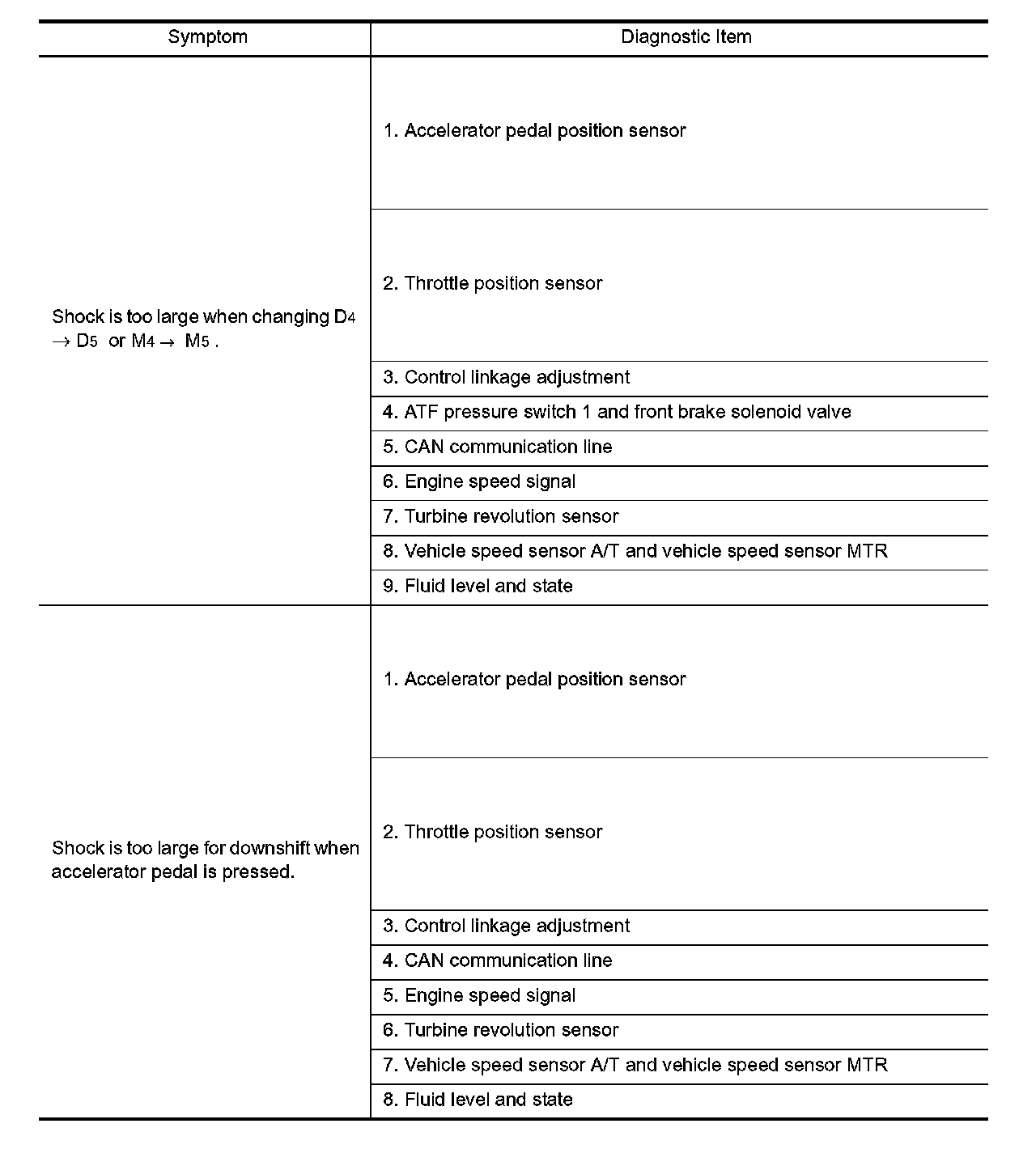

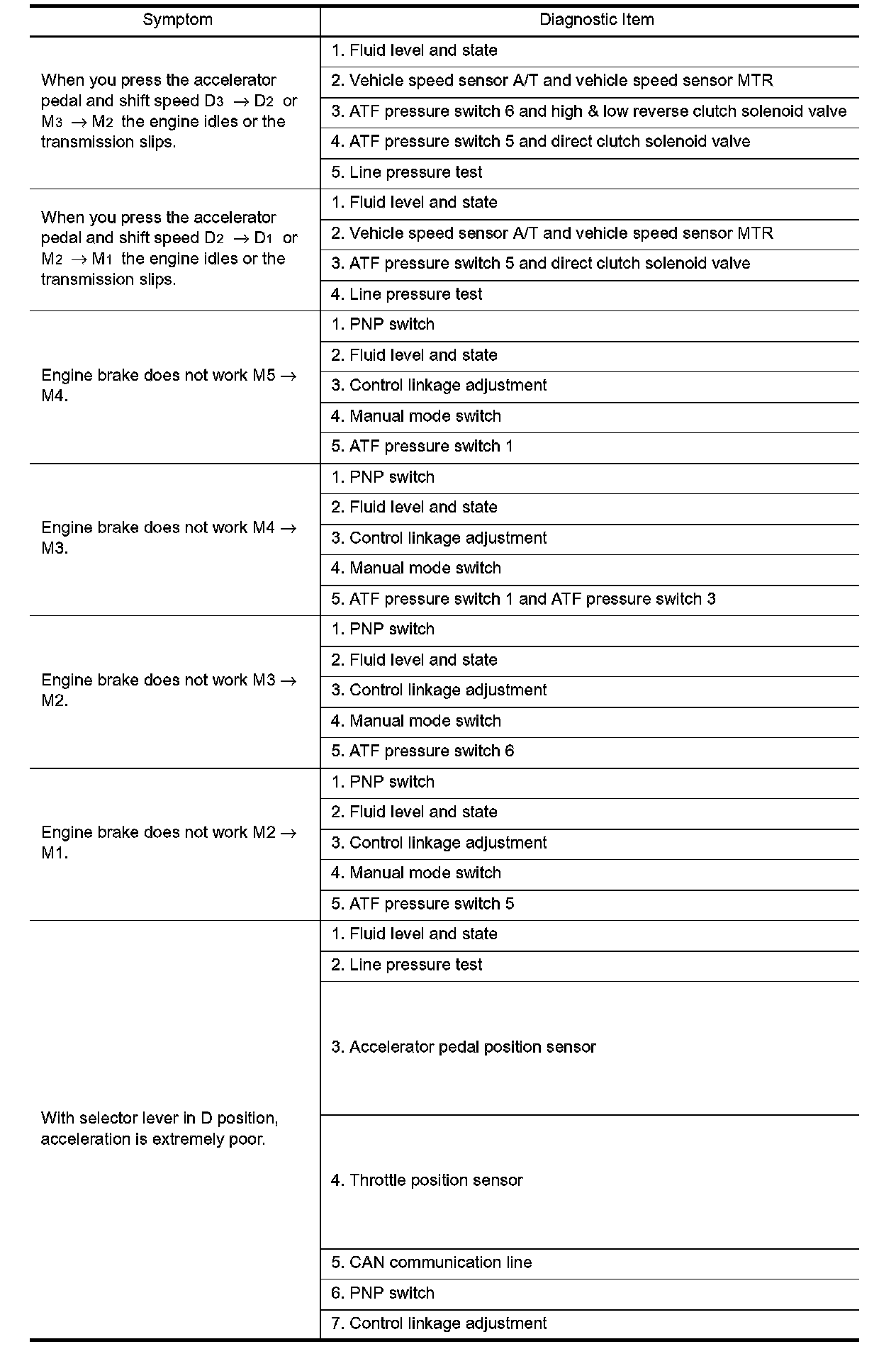

Chart 2 Of 13:

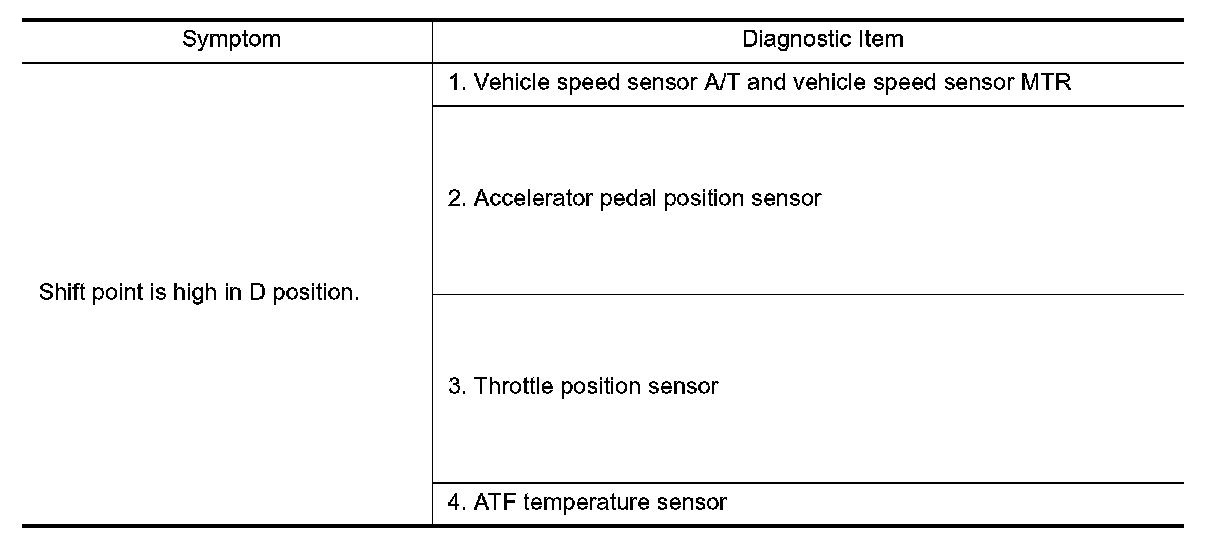

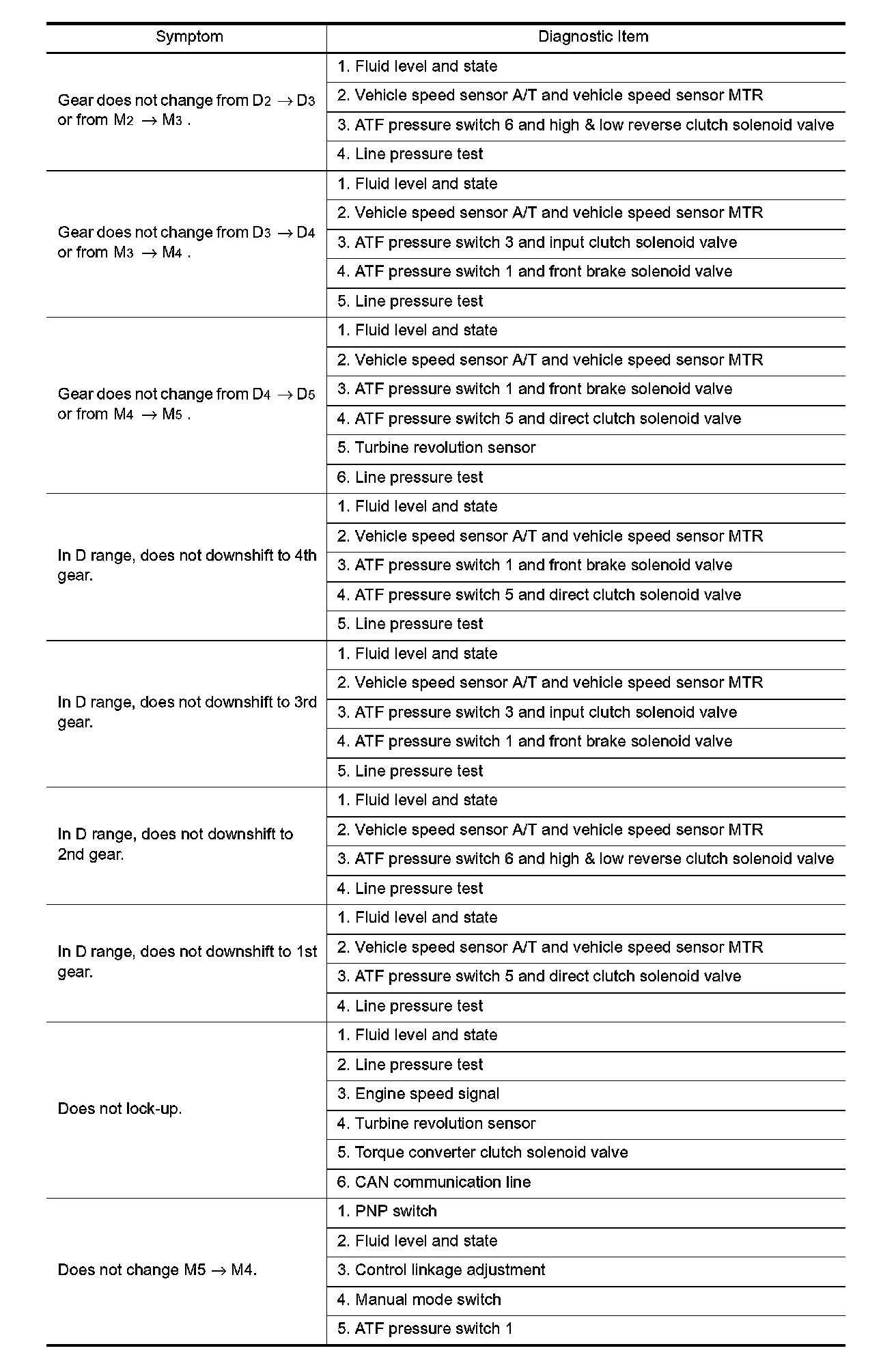

Chart 3 Of 13:

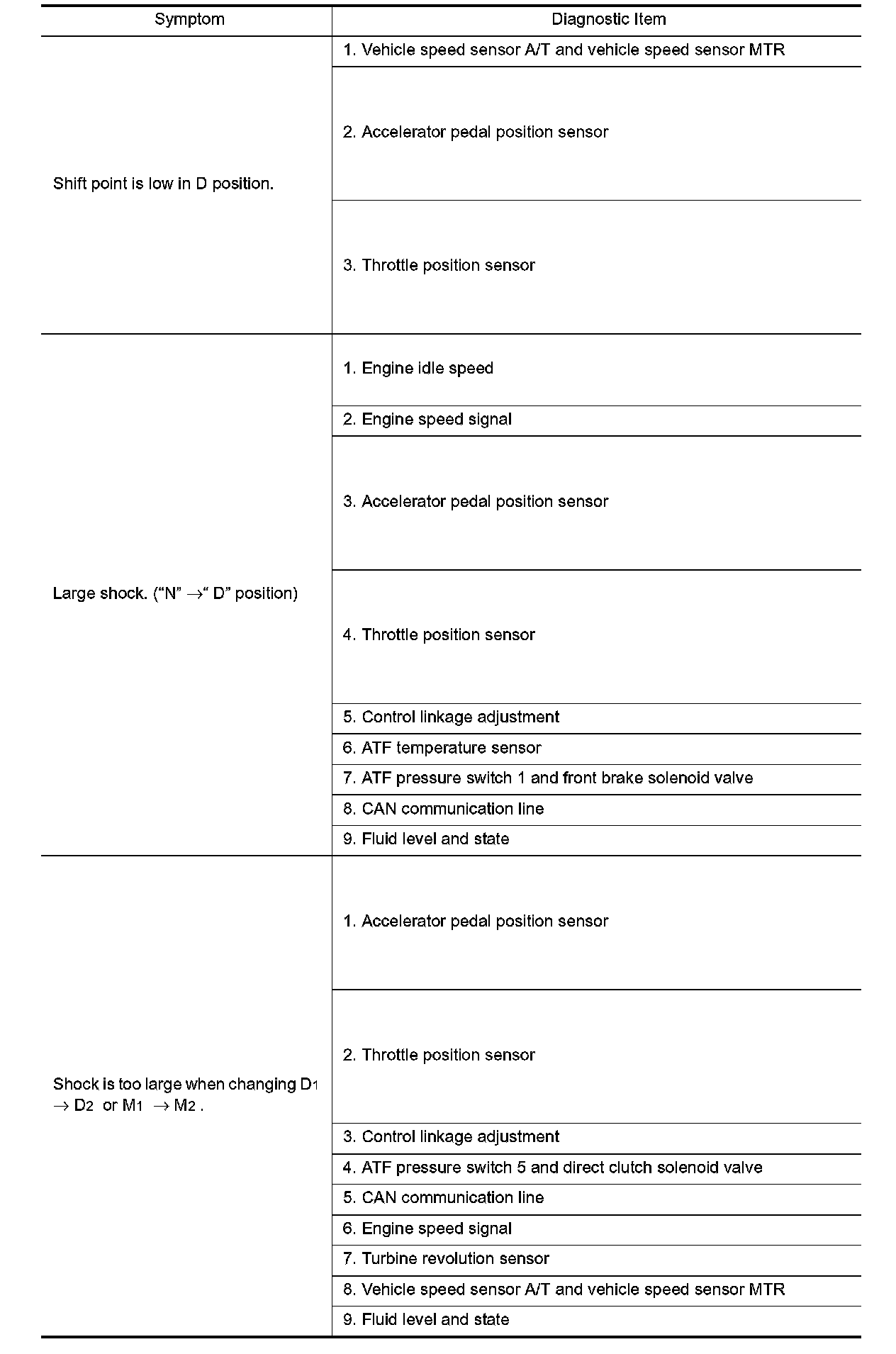

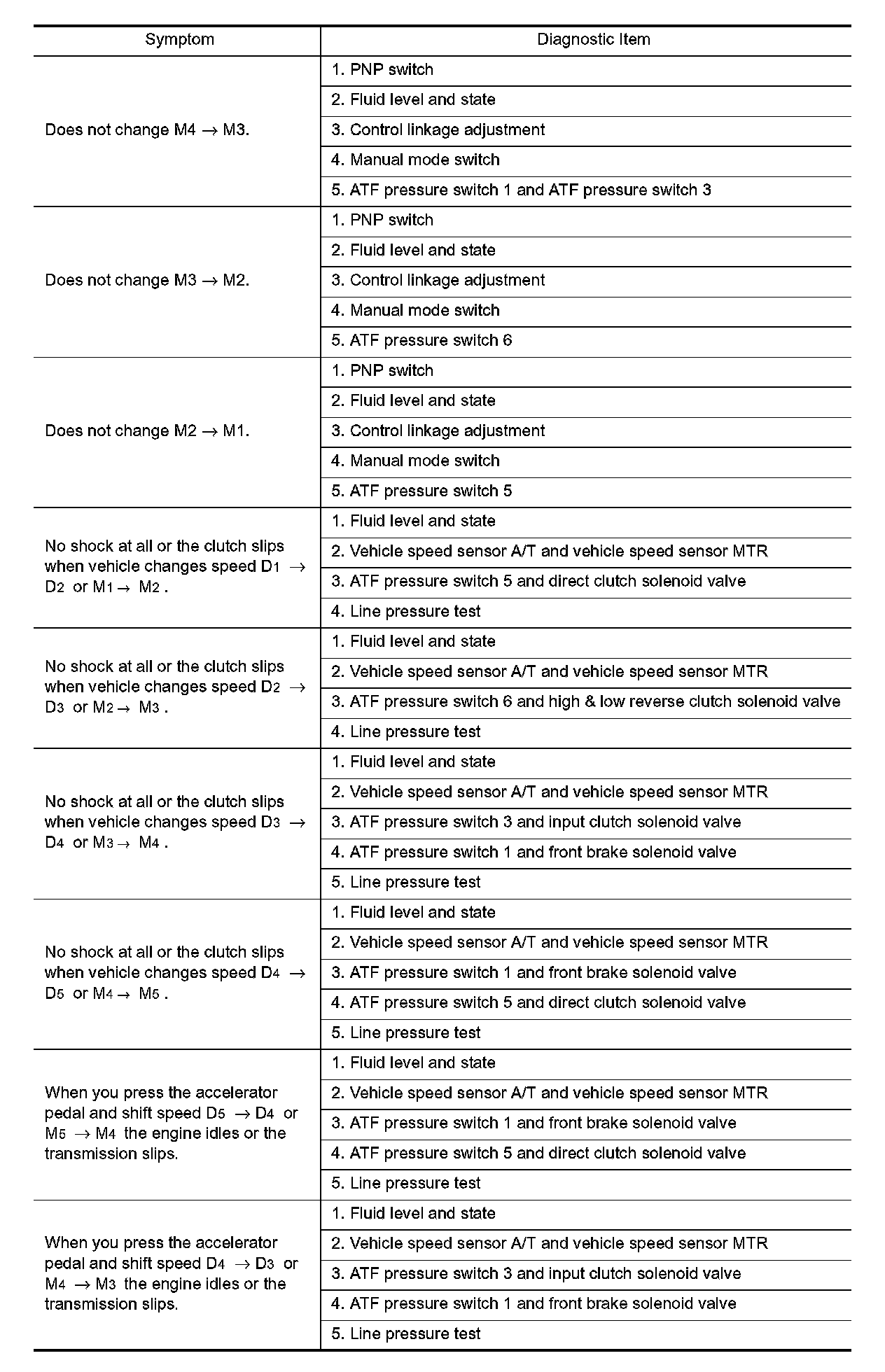

Chart 4 Of 13:

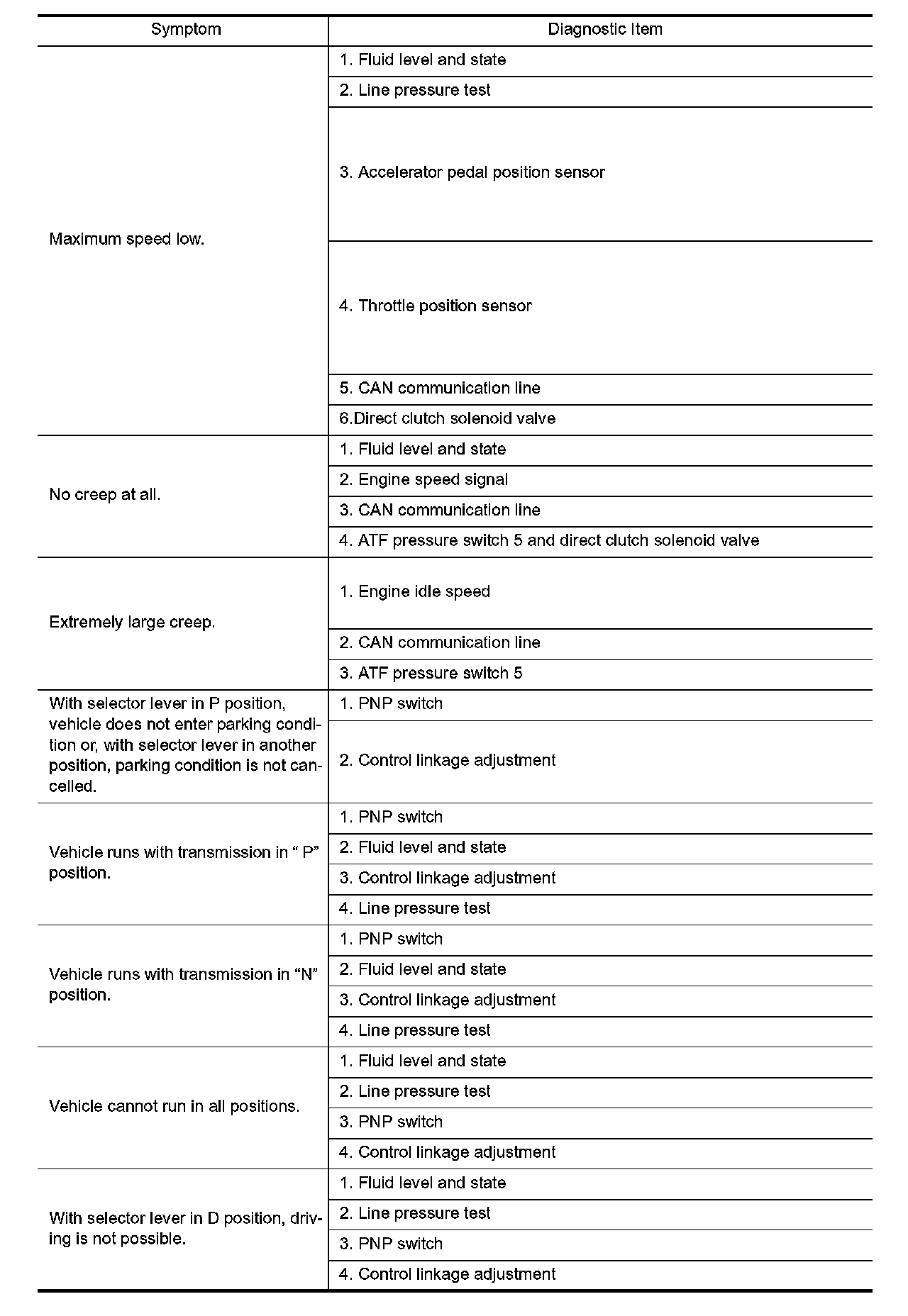

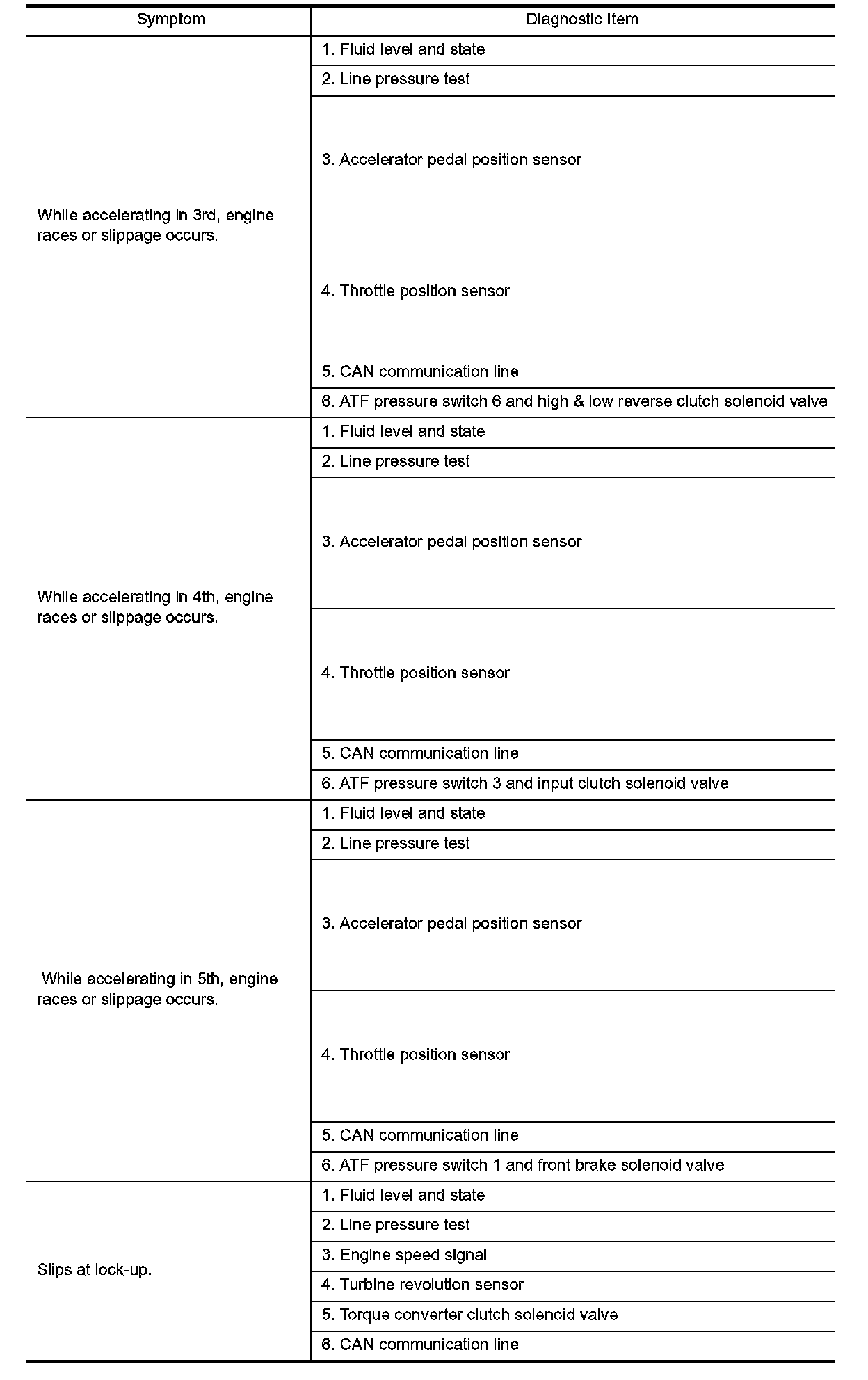

Chart 5 Of 13:

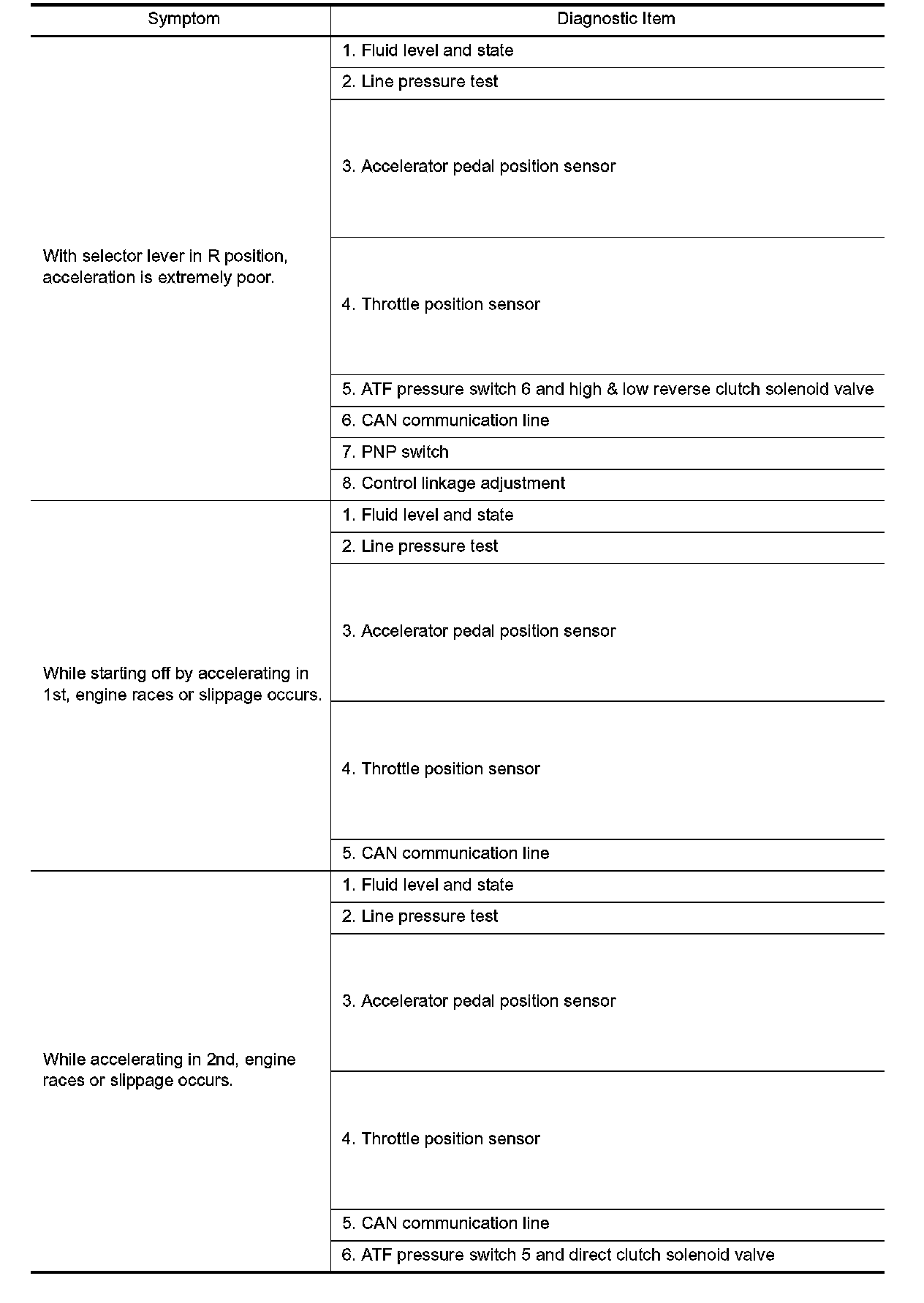

Chart 6 Of 13:

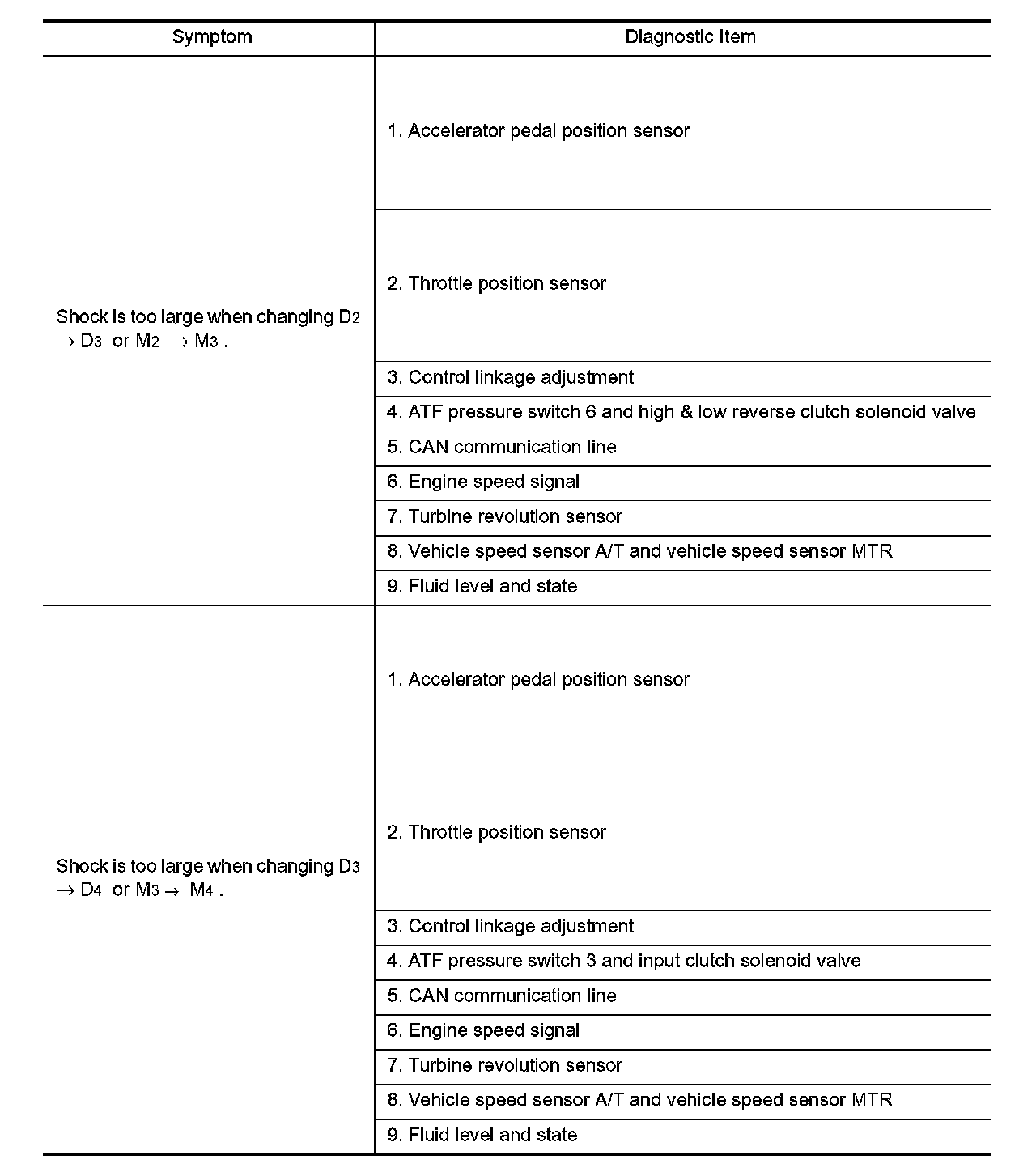

Chart 7 Of 13:

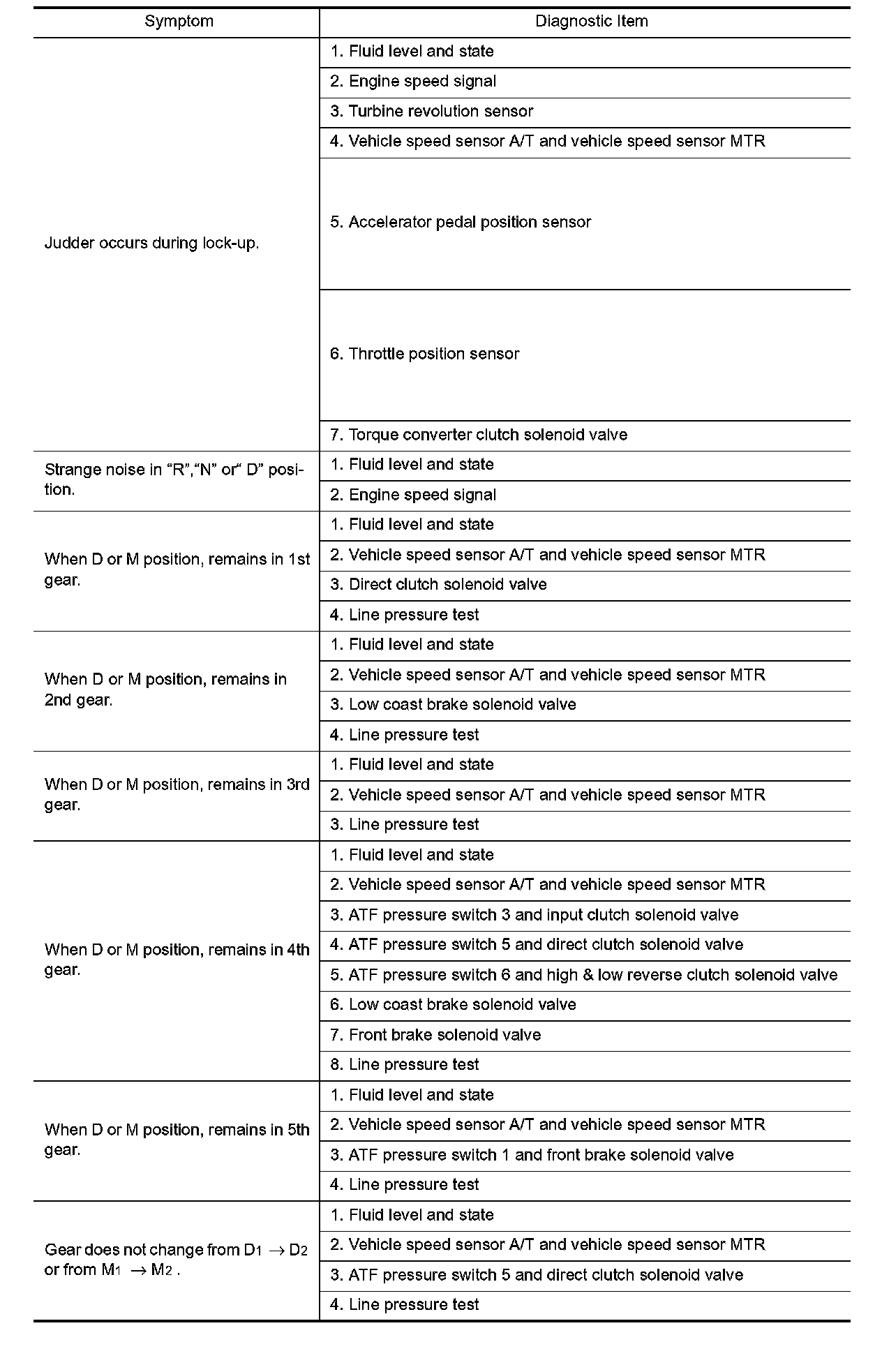

Chart 8 Of 13:
Chart 9 Of 13:
Chart 10 Of 13:
Chart 11 Of 13:
Chart 12 Of 13:
Chart 13 Of 13:
