Checking Brake Fluid

Checking Brake Fluid Level

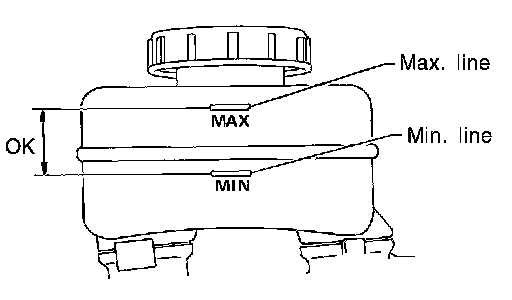

^ Check that the fluid level in the reservoir tank is within the standard (between MAX and MIN lines).
^ Visually check around the reservoir tank for fluid leaks.
^ If fluid level is excessively low, check brake system for leaks.
^ If warning lamp remains illuminated after parking lever is released, check brake system for fluid leakage.
