Cabin Temperature Sensor / Switch: Service and Repair

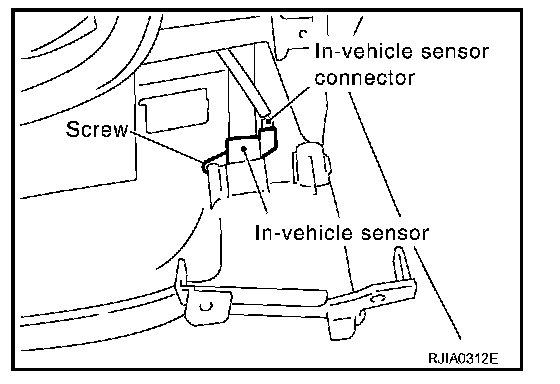

IN-VEHICLE SENSORRemoval and InstallationREMOVAL 1.
Remove instrument lower driver panel.
2.
Disconnect in-vehicle sensor connector and aspirator duct.
3.
Remove in-vehicle sensor.
INSTALLATIONInstallation is basically the reverse order of removal
