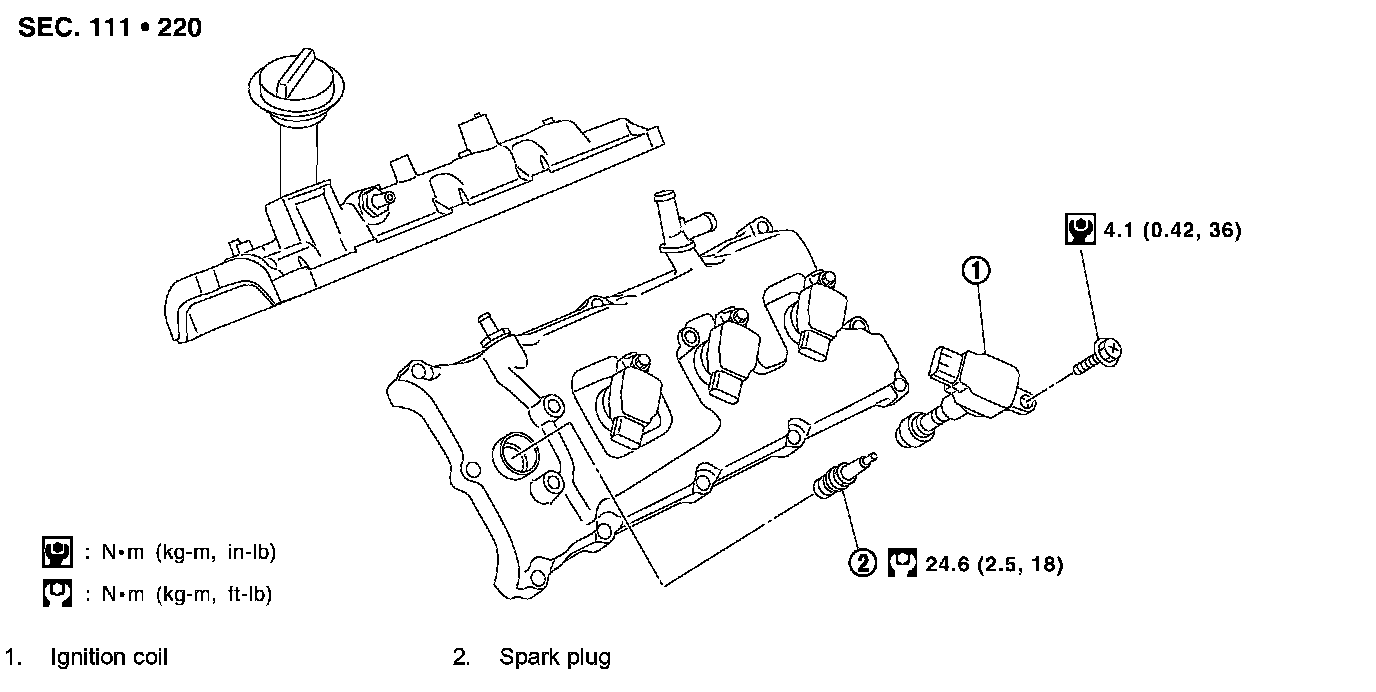

Ignition Coil: Service and Repair
Removal and Installation REMOVAL 1.
Remove engine cover (with power tool), air cleaner cover and battery cover.
2.
Move heater hose and its peripheral parts aside. (No.7 cylinder)
3.
Disconnect harness connector from
ignition coil.
4.
Remove
ignition coil.
CAUTION: Do not shock it.
INSTALLATION Install in the reverse order of removal.
