System Specifications

Part 1:

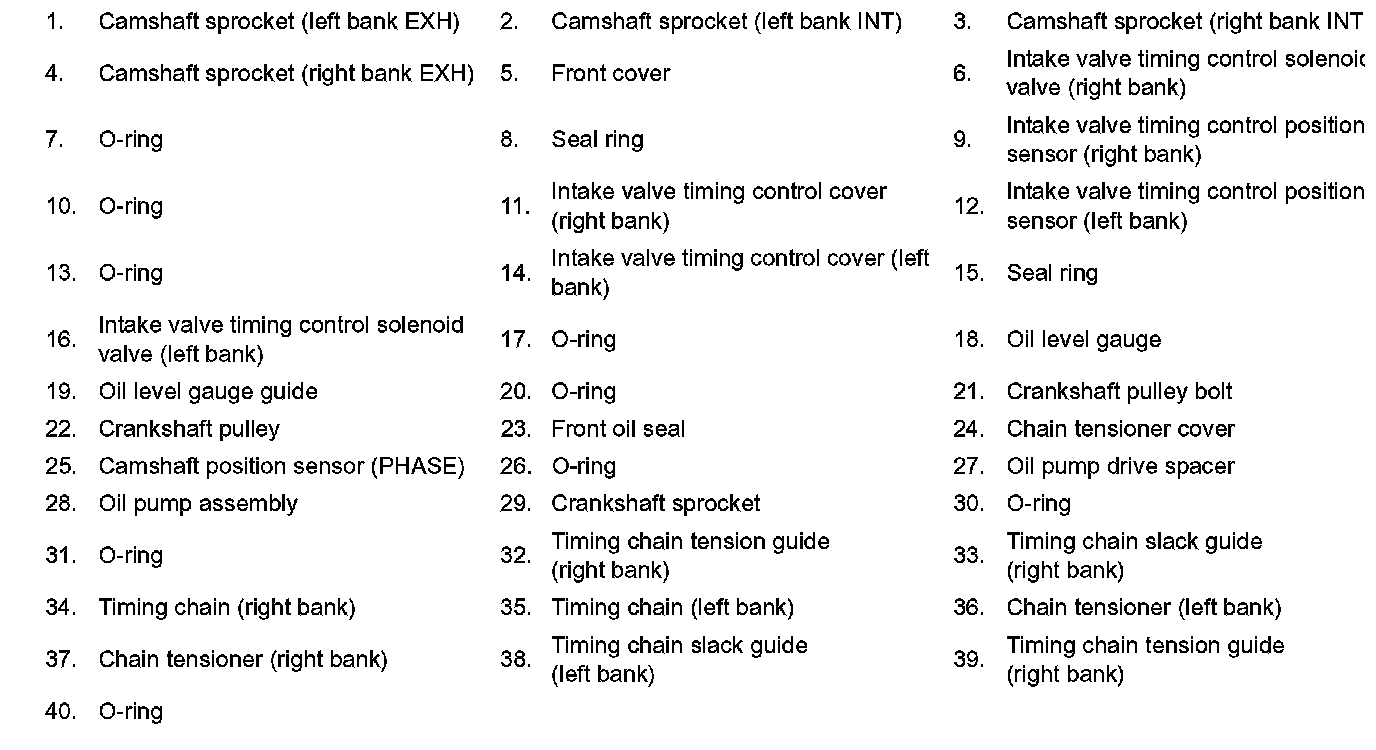

Part 2:

Crankshaft Pulley
Tighten fixing bolts of crankshaft pulley.
Lock crankshaft with a hammer handle or similar tool to tighten fixing bolts.
Perform the following steps for angular tightening:

Tighten bolt 93.1 Nm (9.5 kg-m, 69 ft. lbs.).

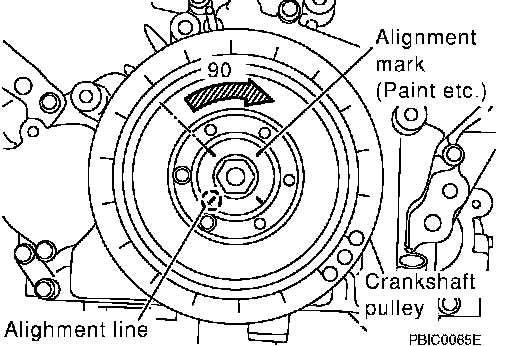

Select one most visible notch of the four on bolt flange. Corresponding to the selected notch, put a mating mark (such as paint) on crankshaft pulley.
Tighten further by 90 degrees. (Angle tightening) Check the tightening angle by referencing to the notches. The angle between two notches is 90 degrees.

Timing Cover

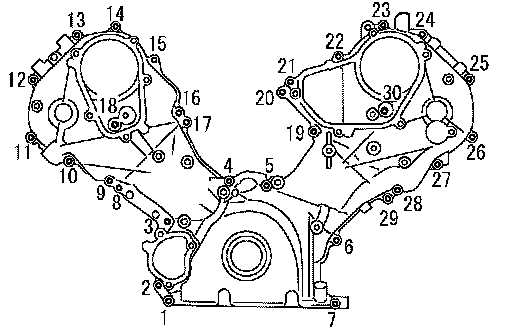

Tighten fixing bolts in the numerical order shown in the figure.
