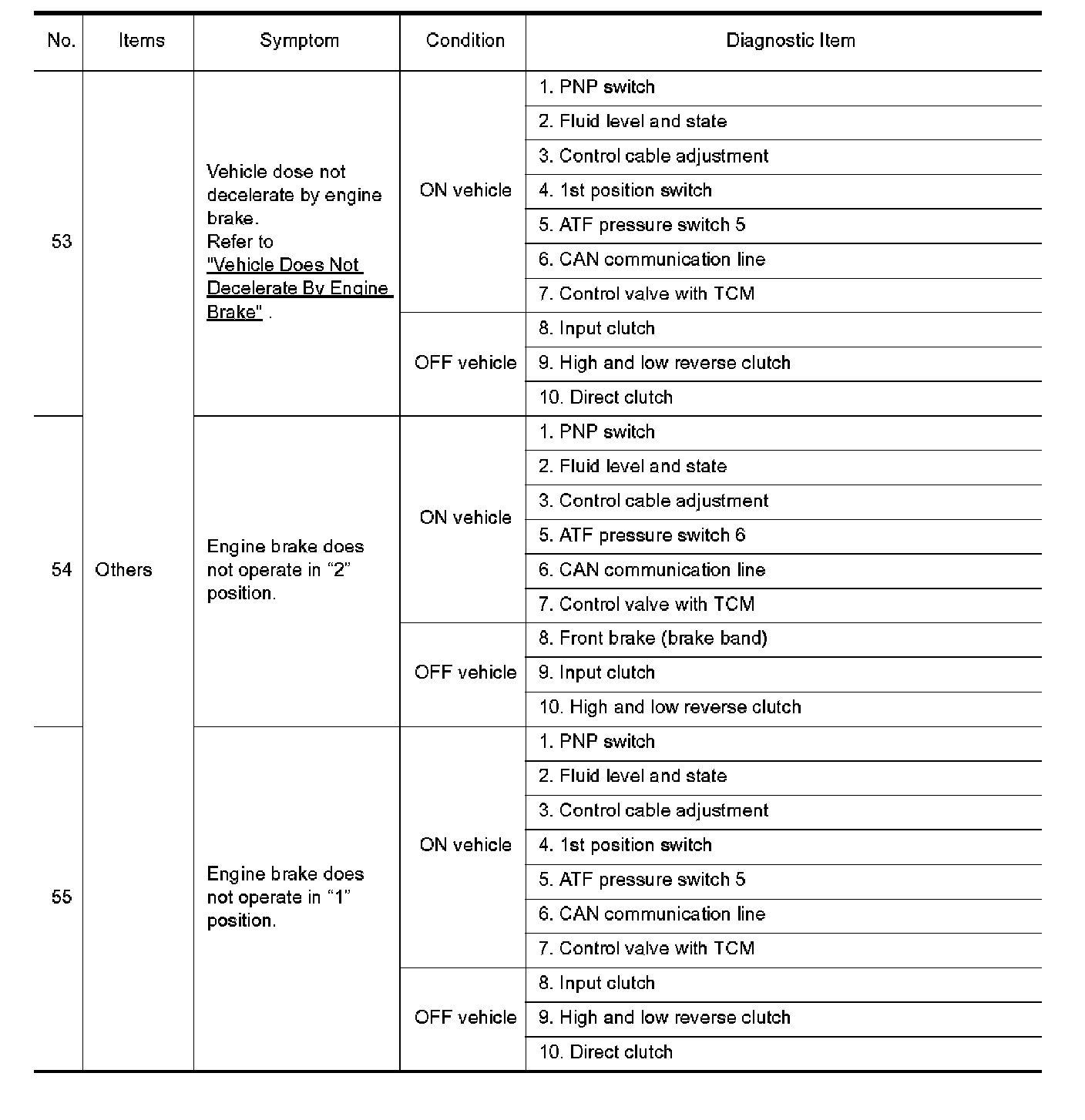

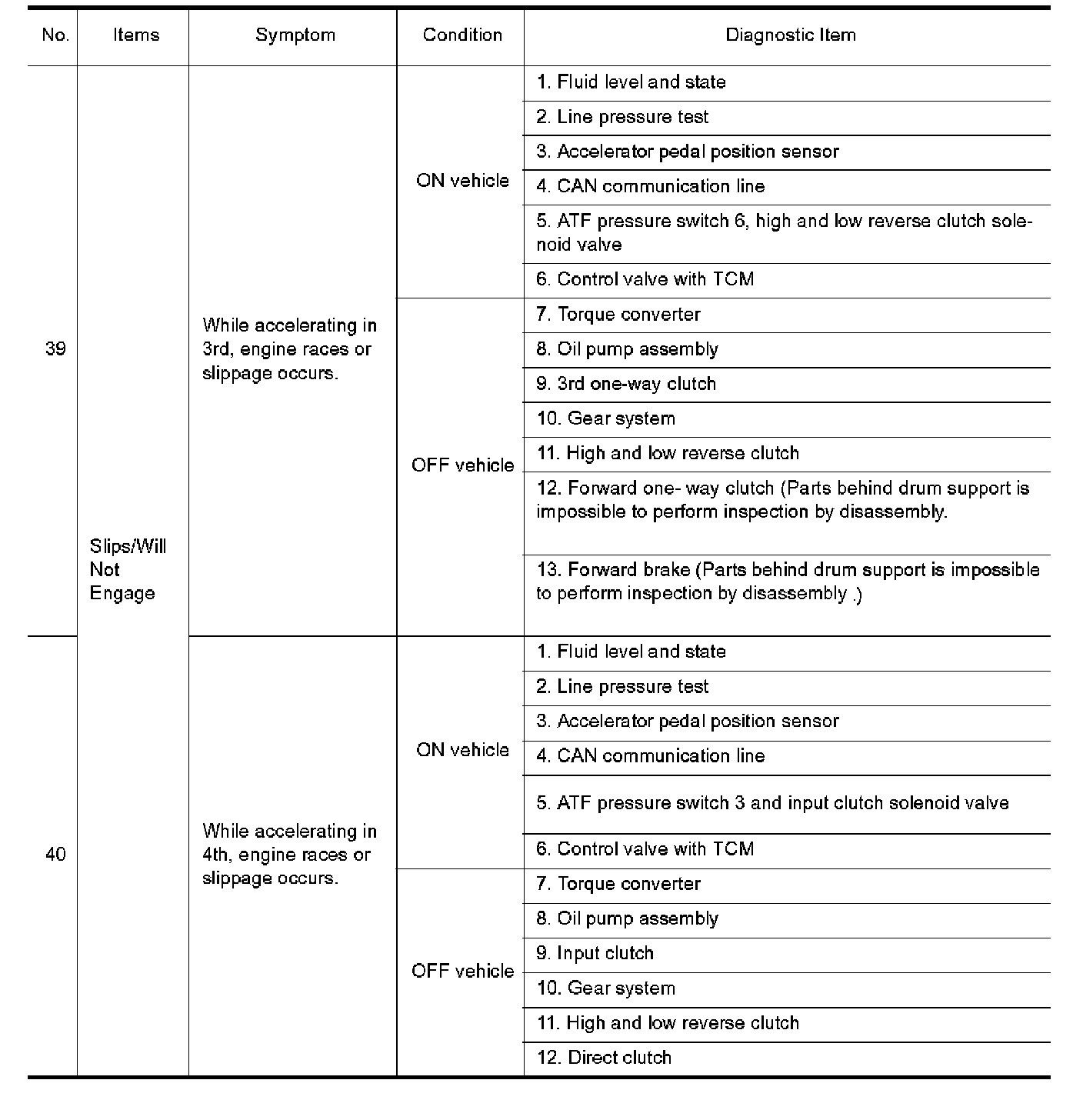

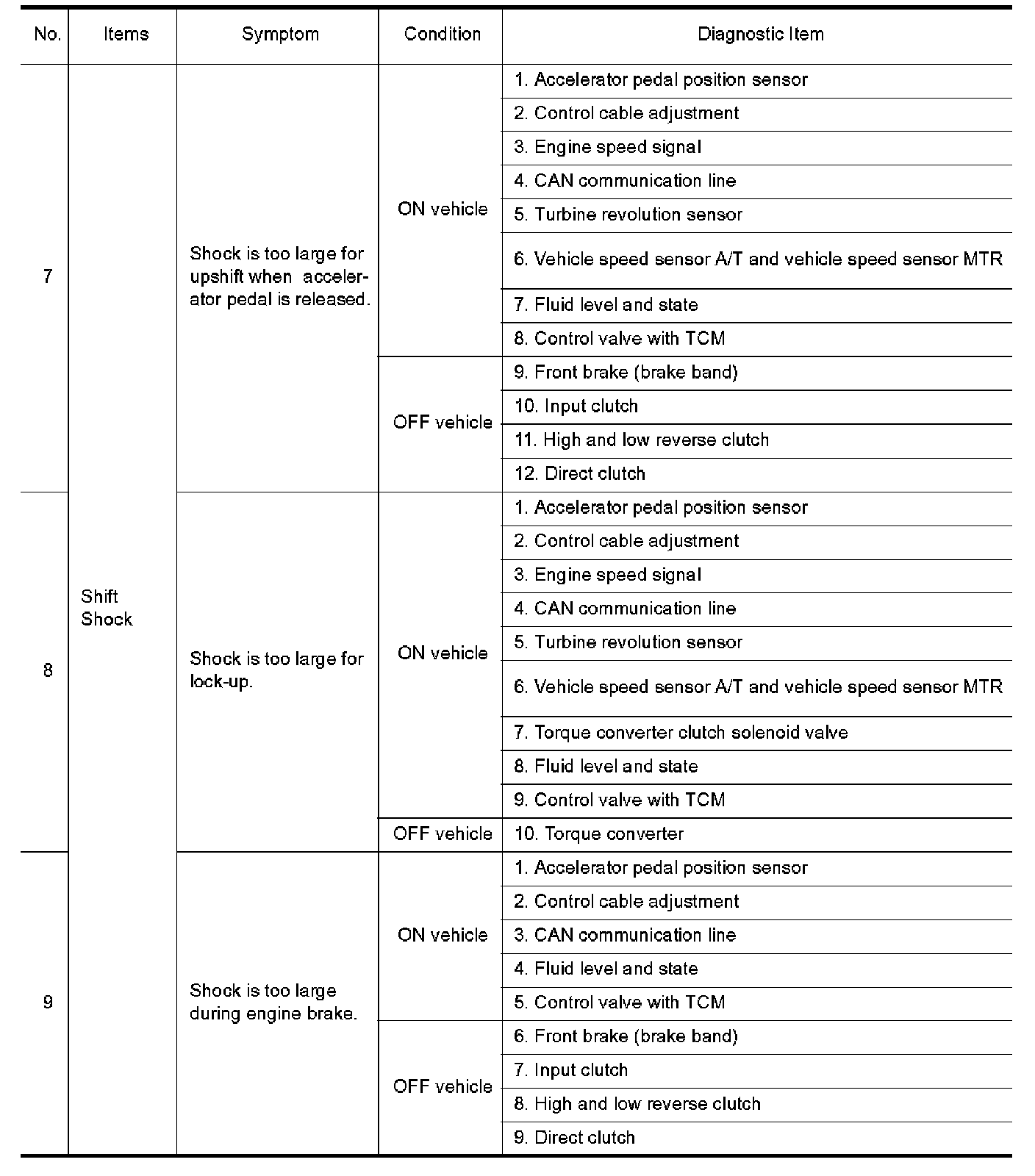

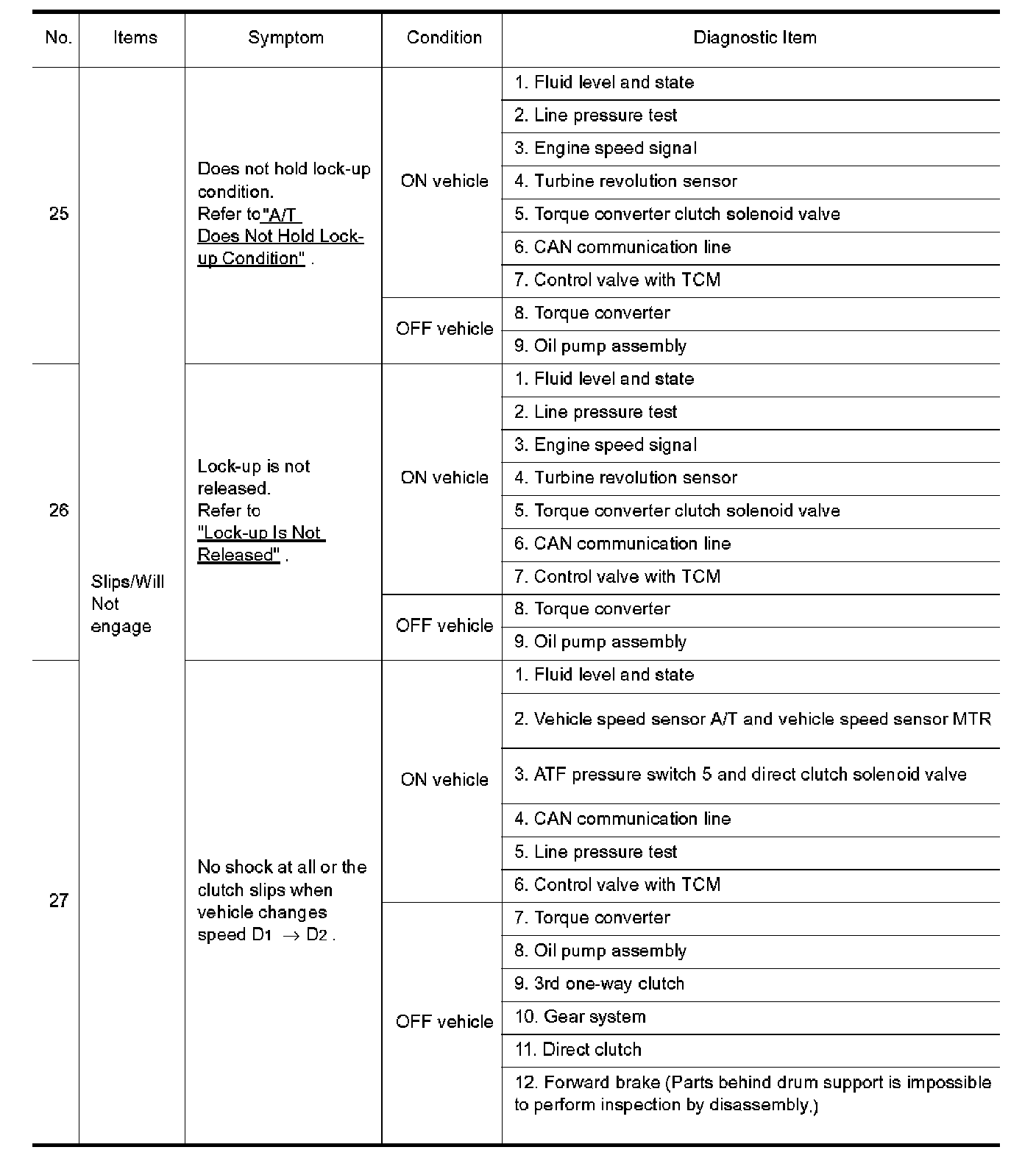

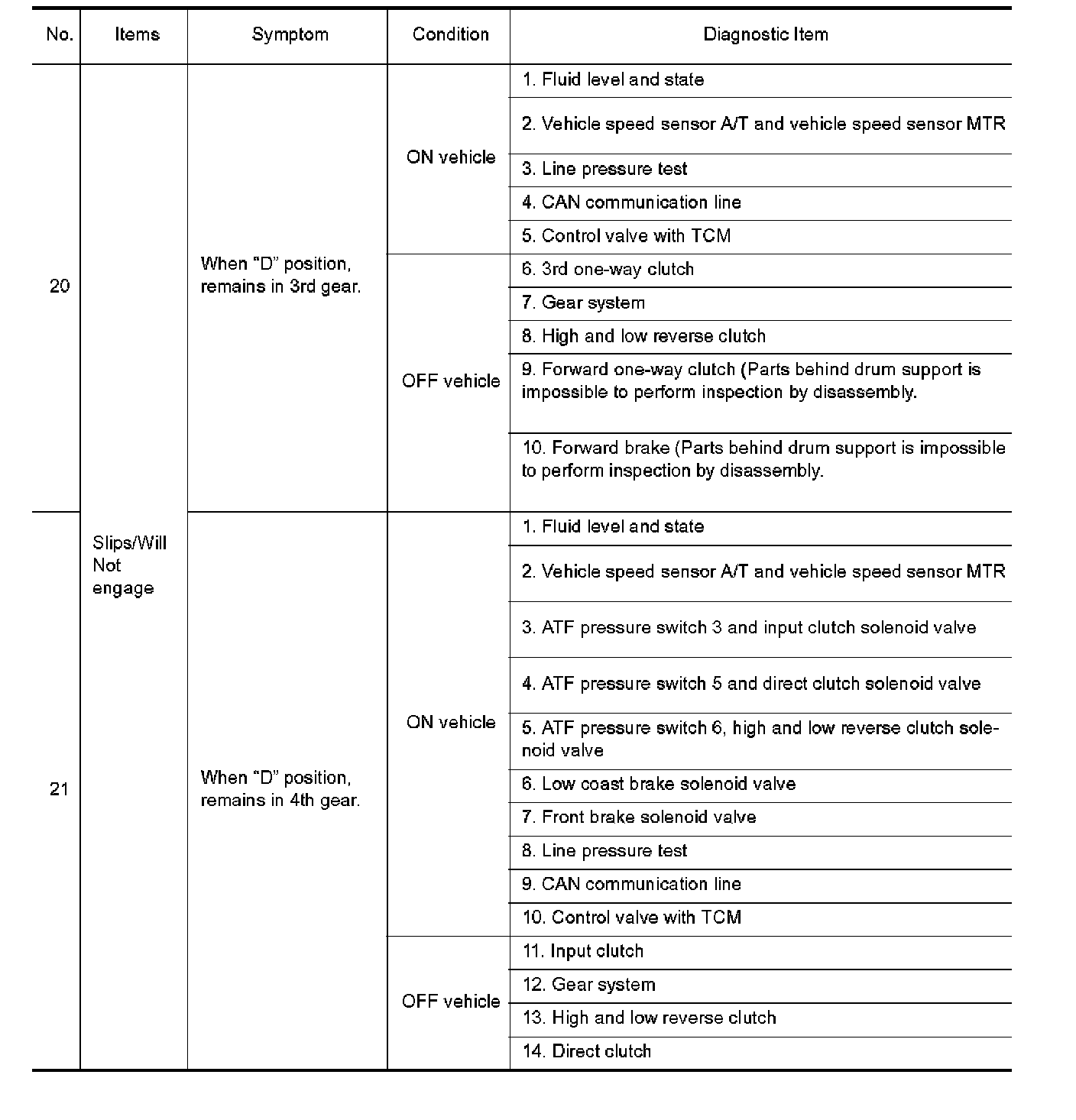

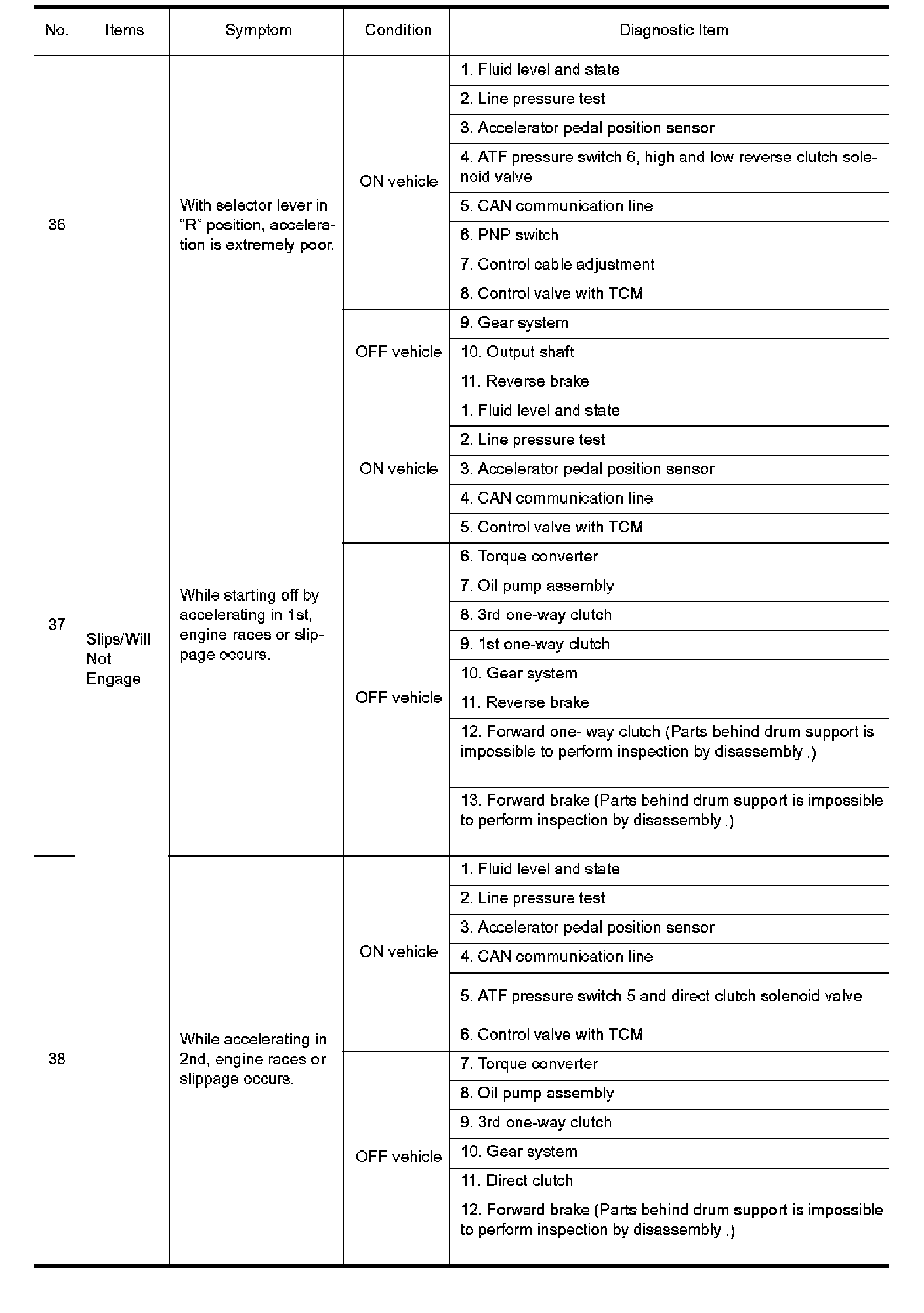

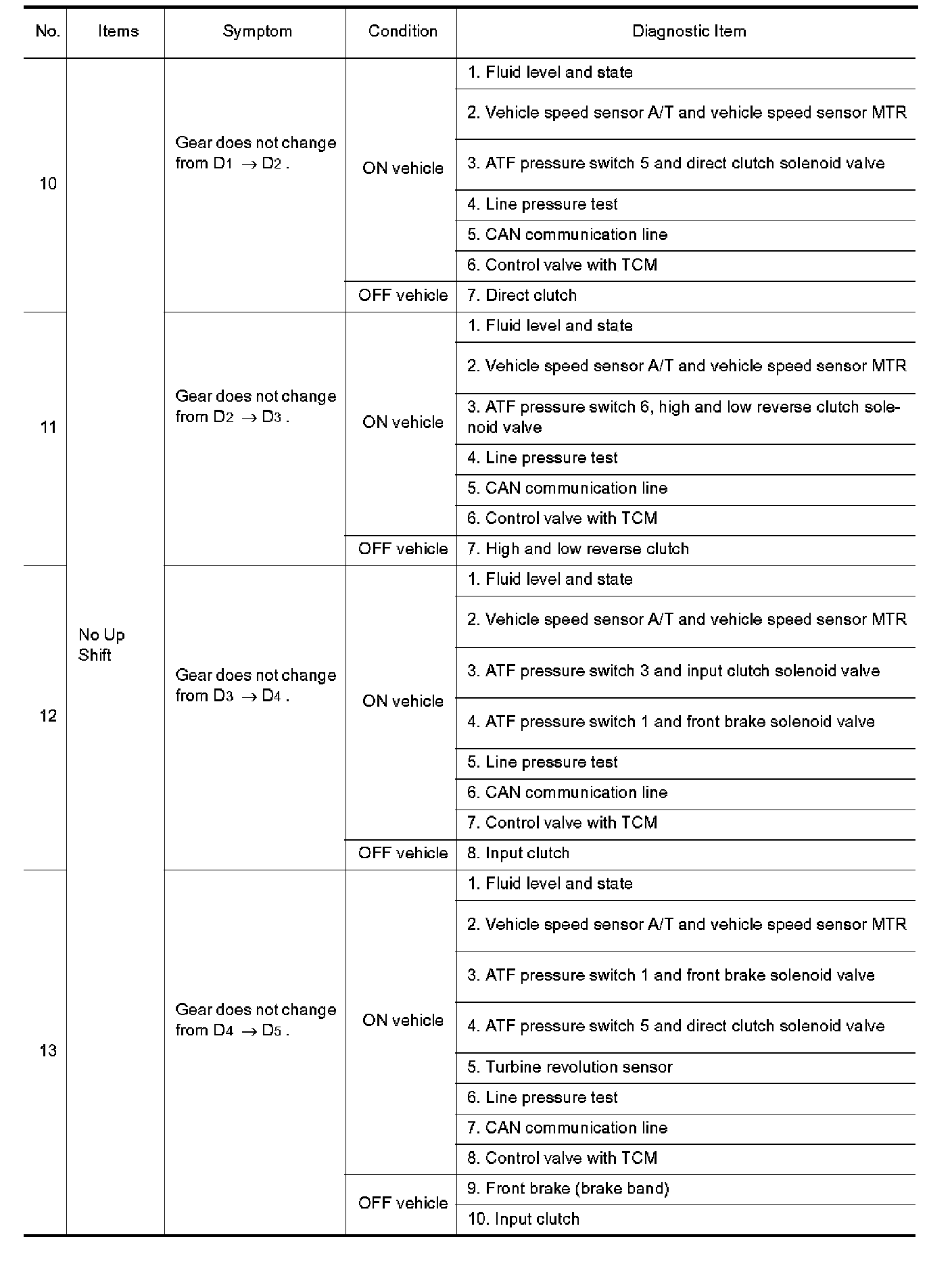

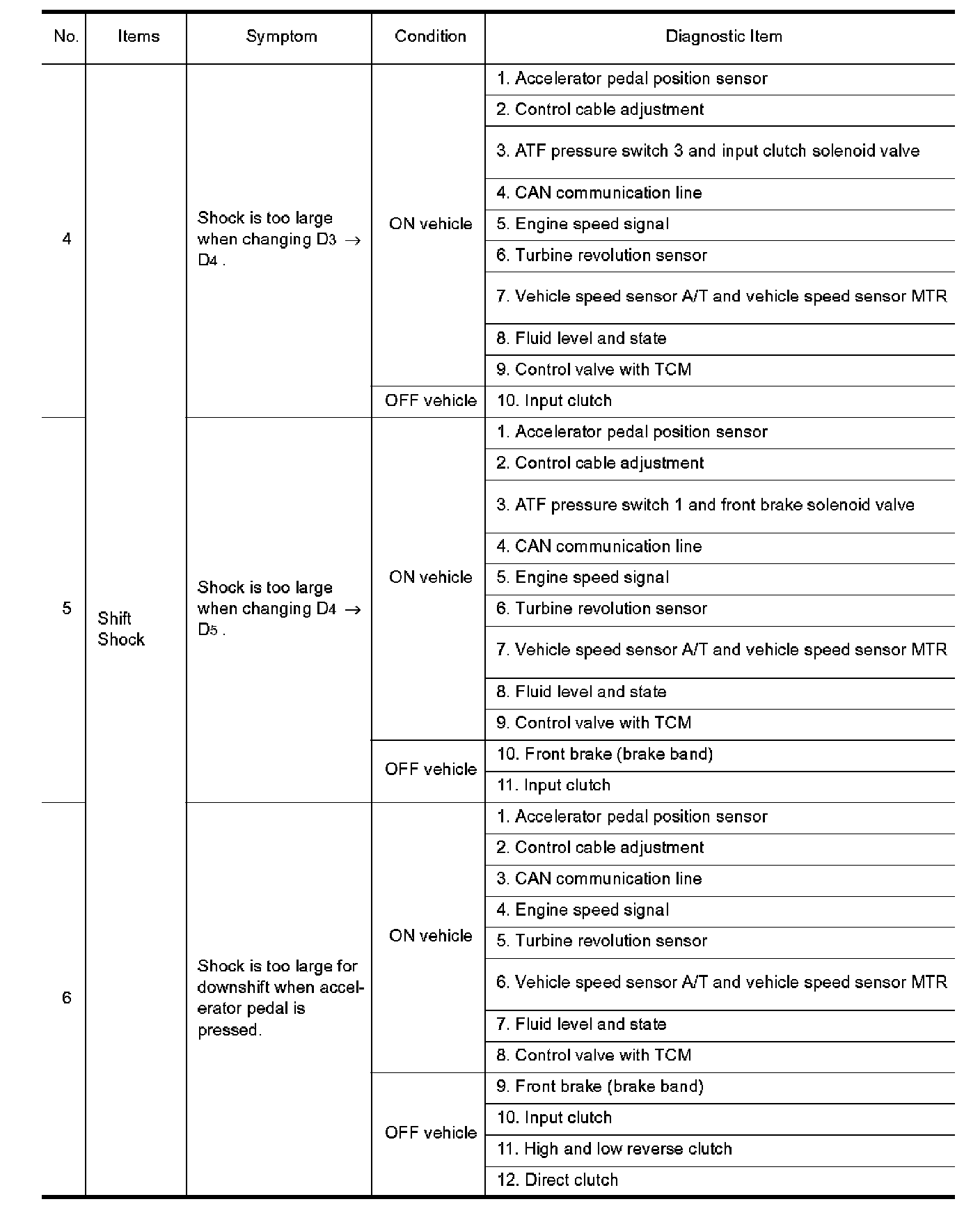

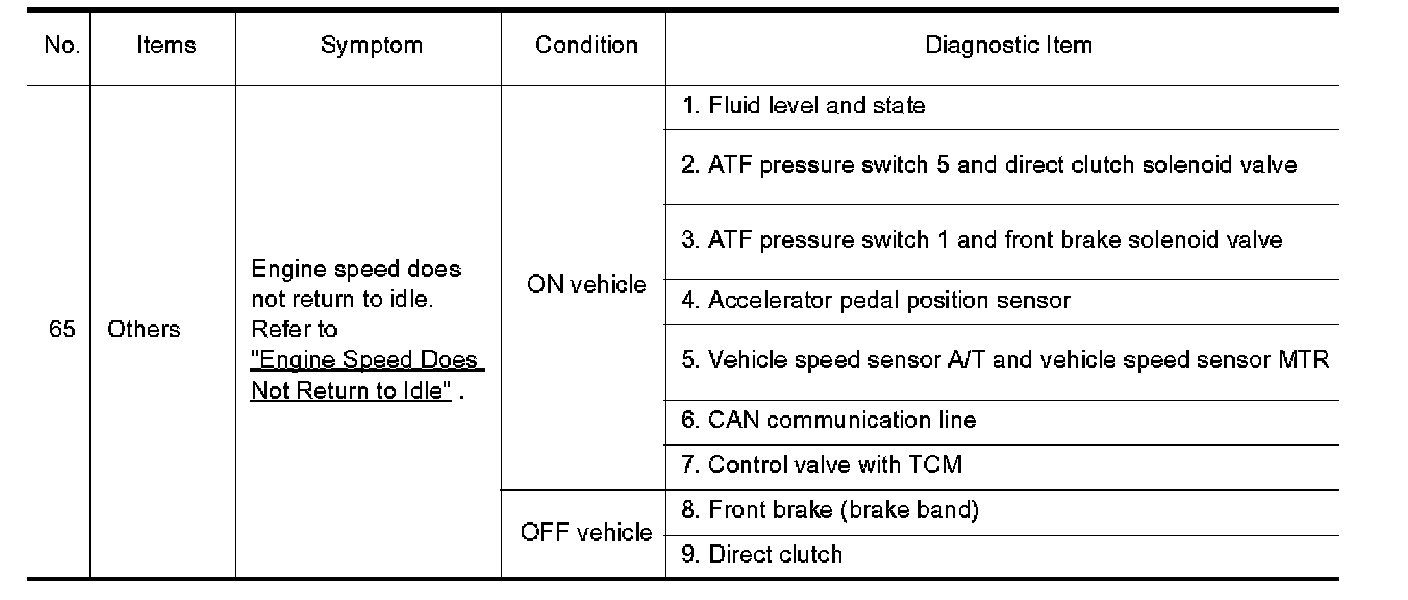

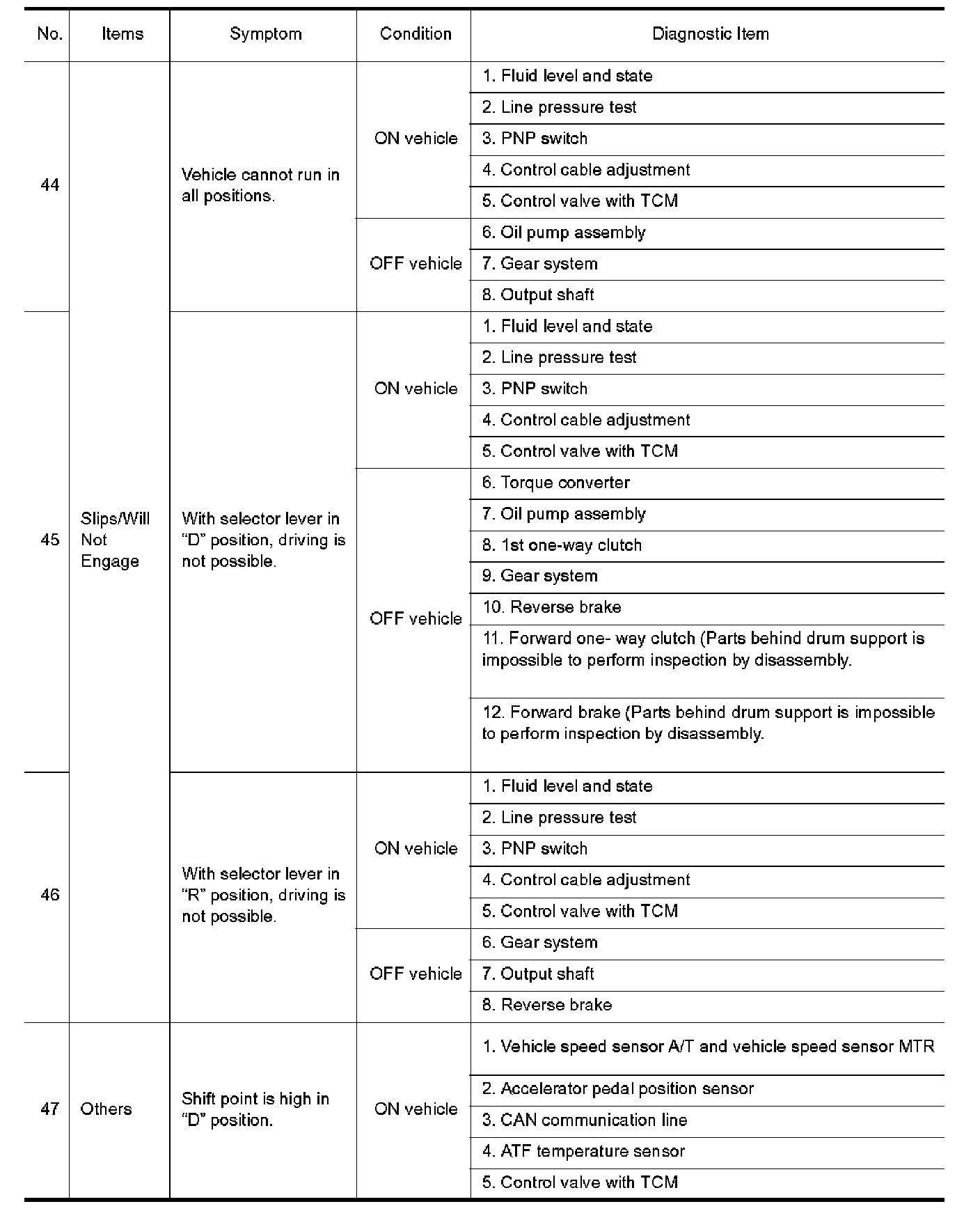

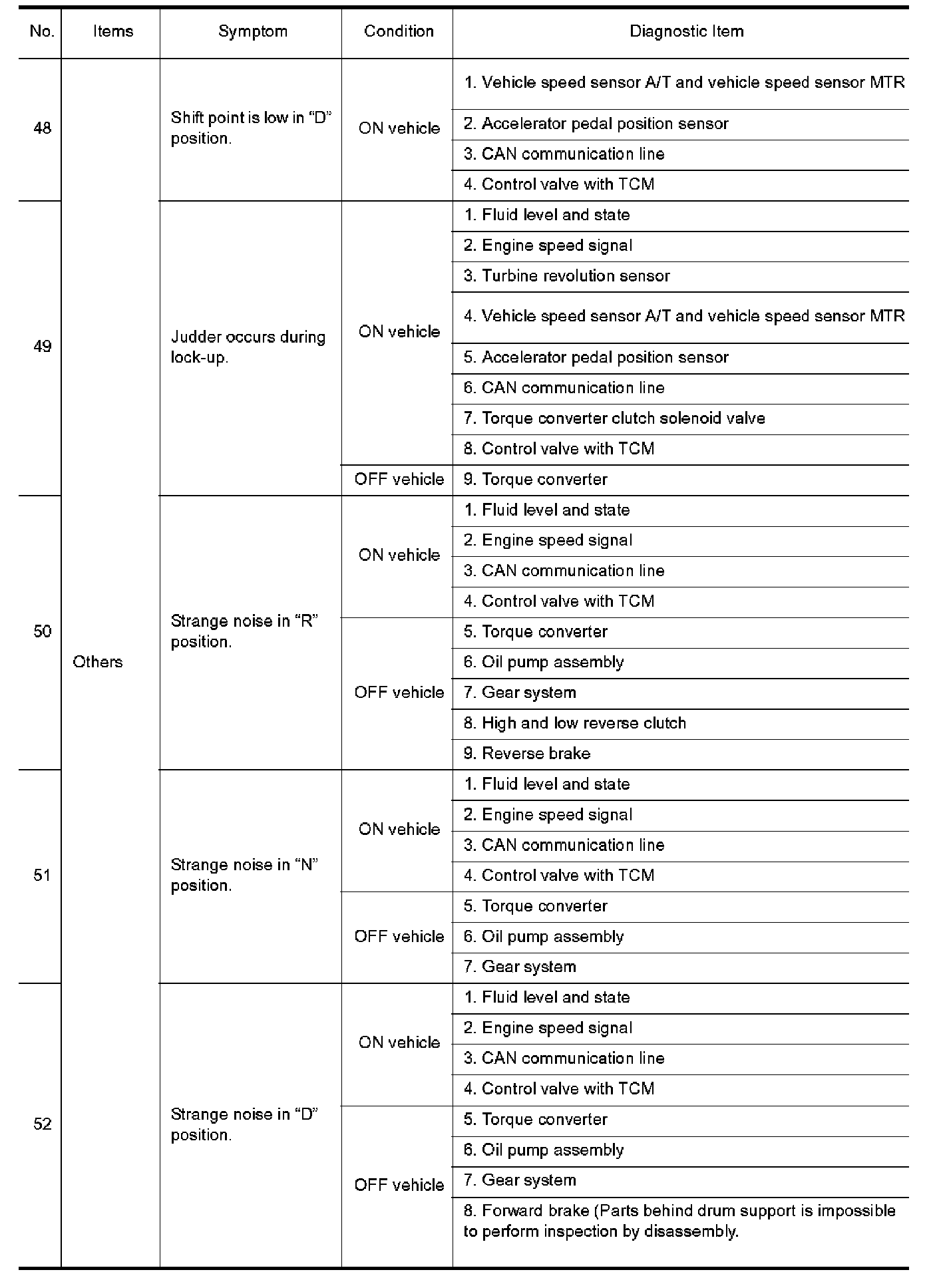

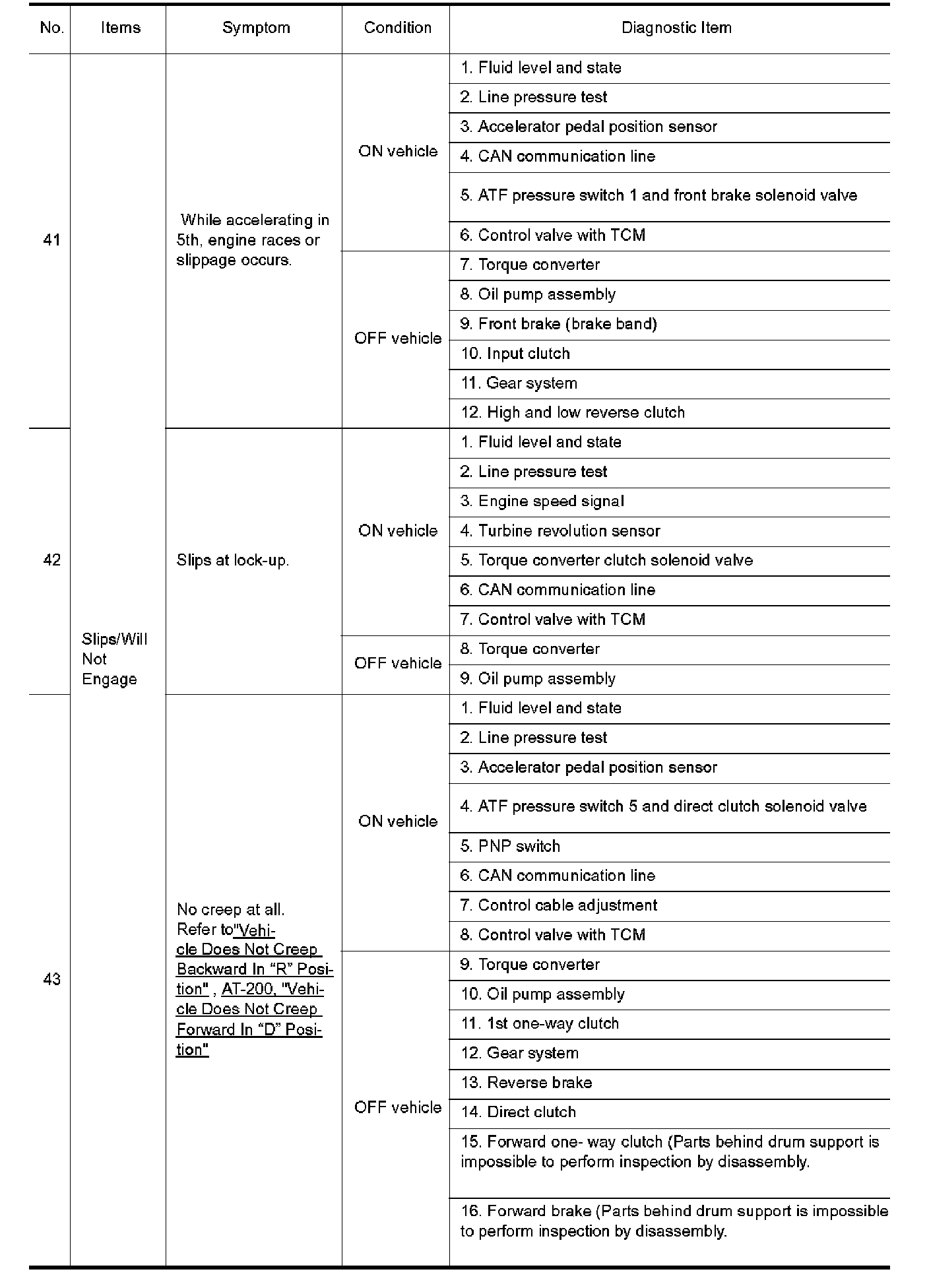

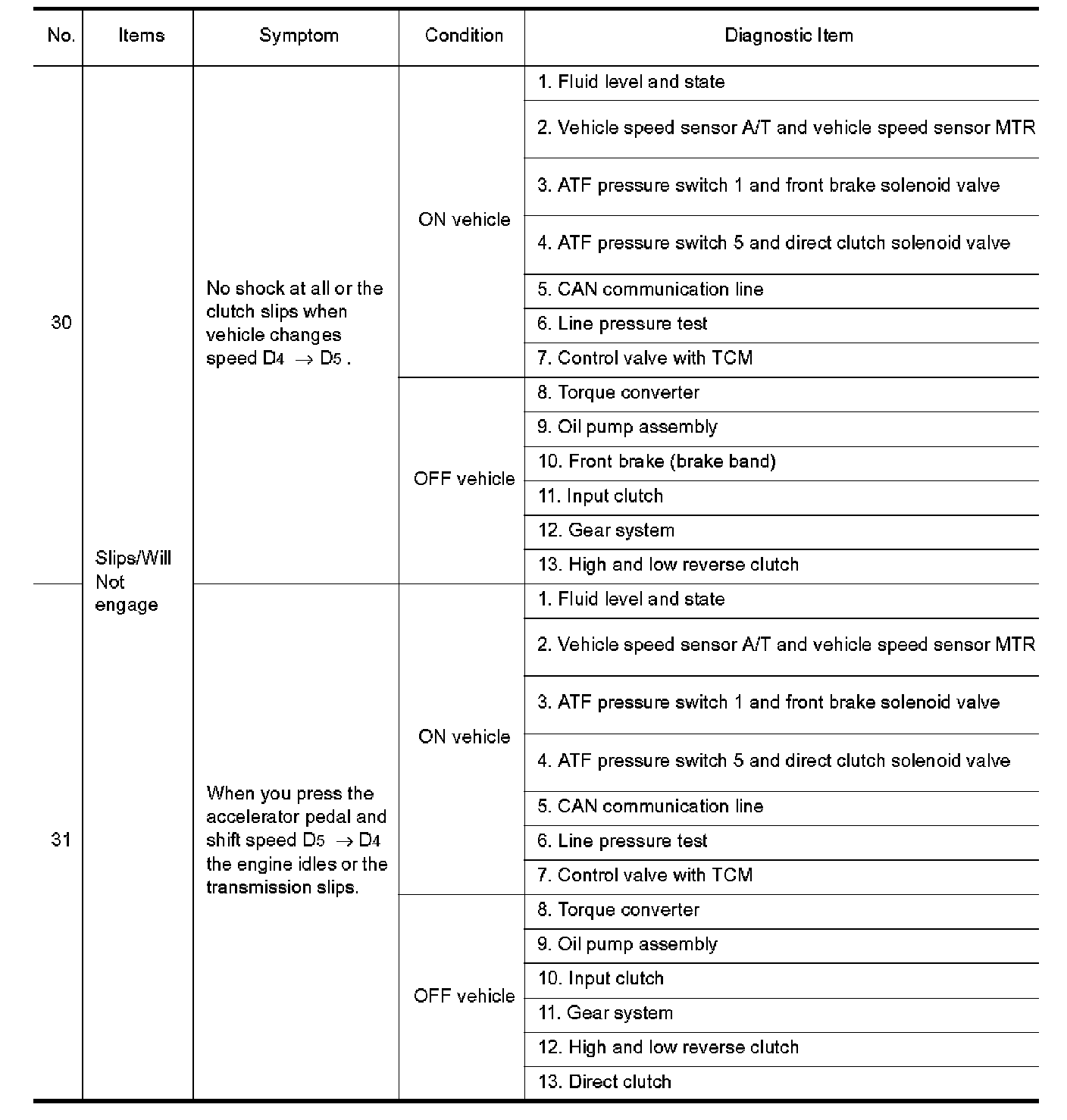

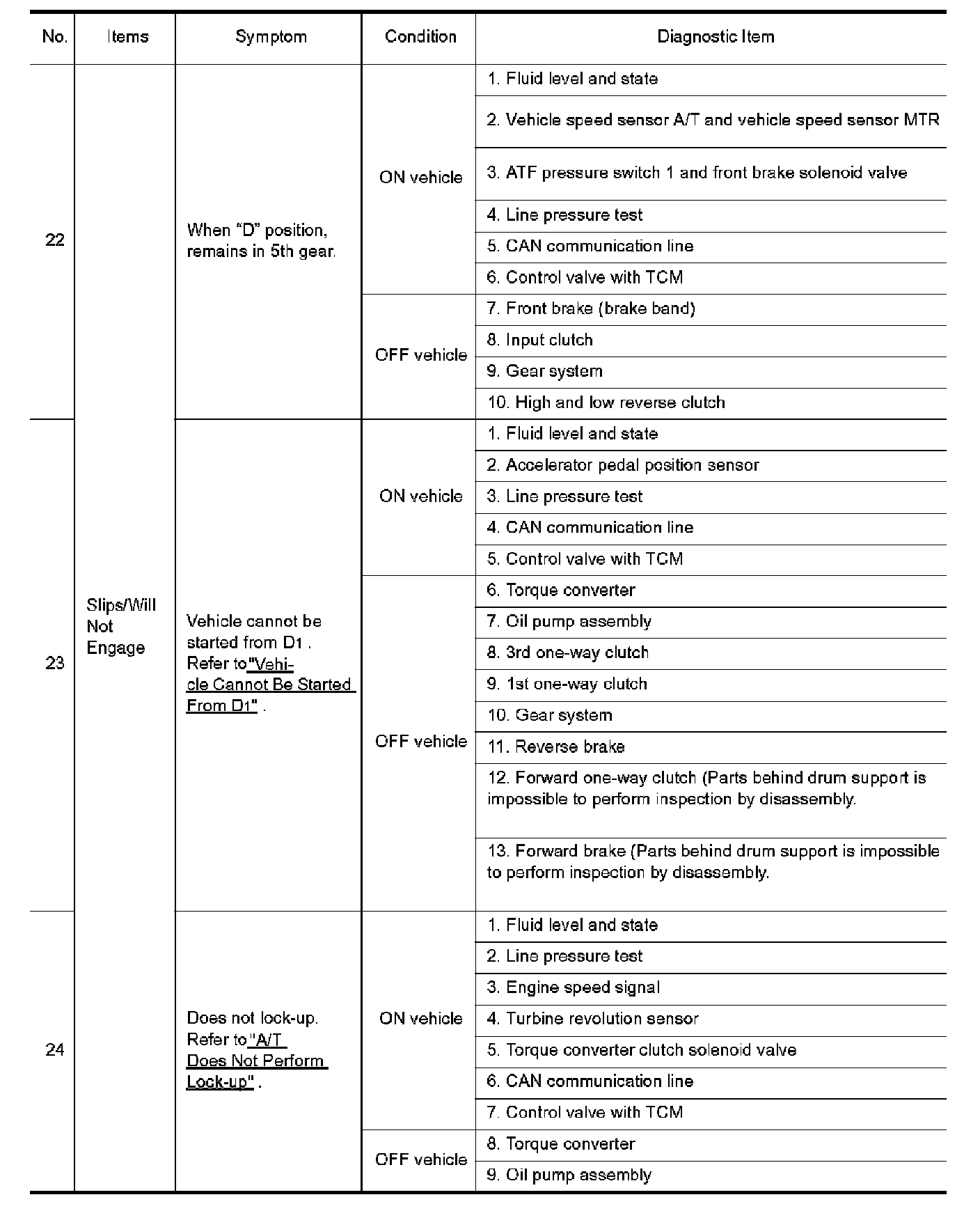

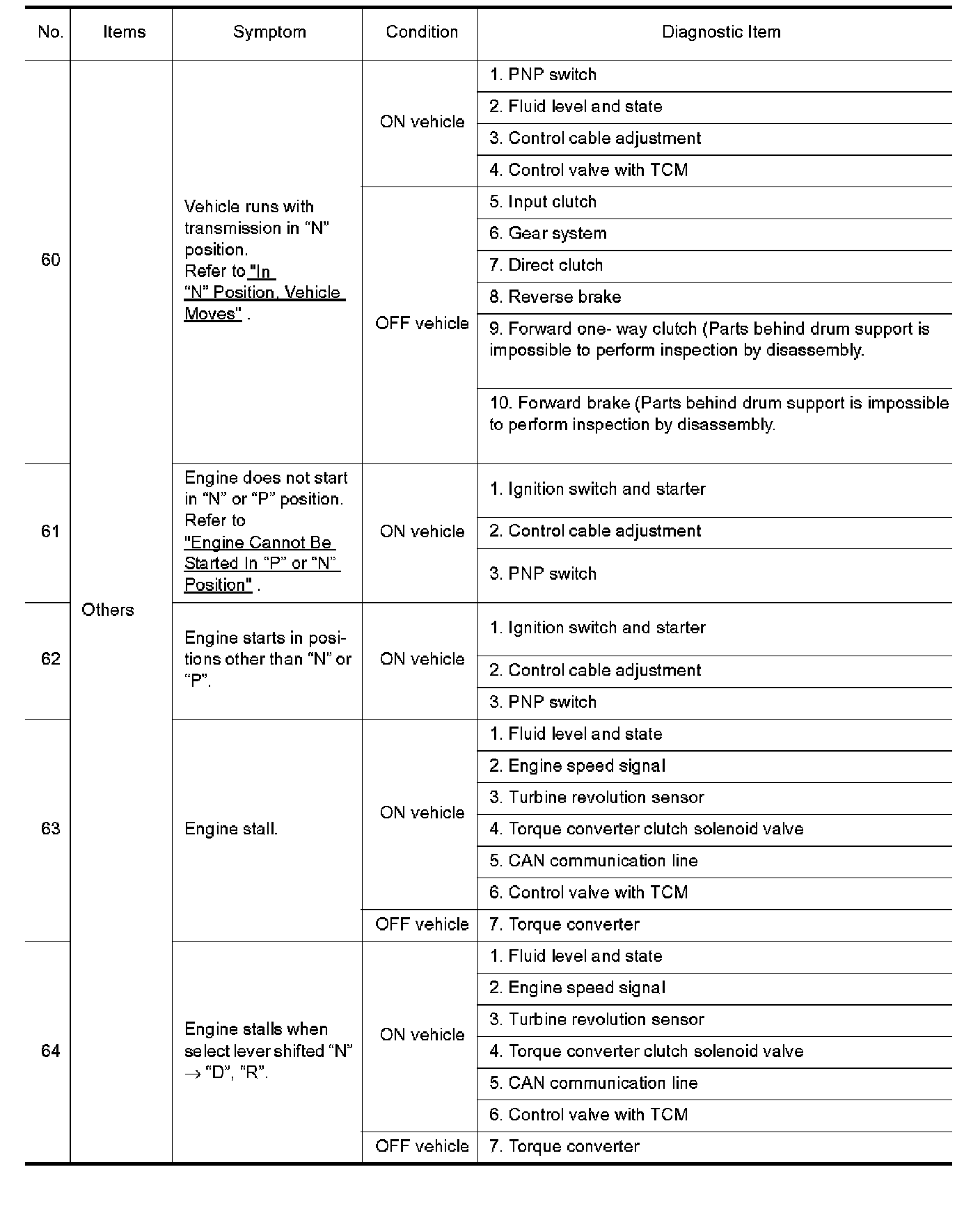

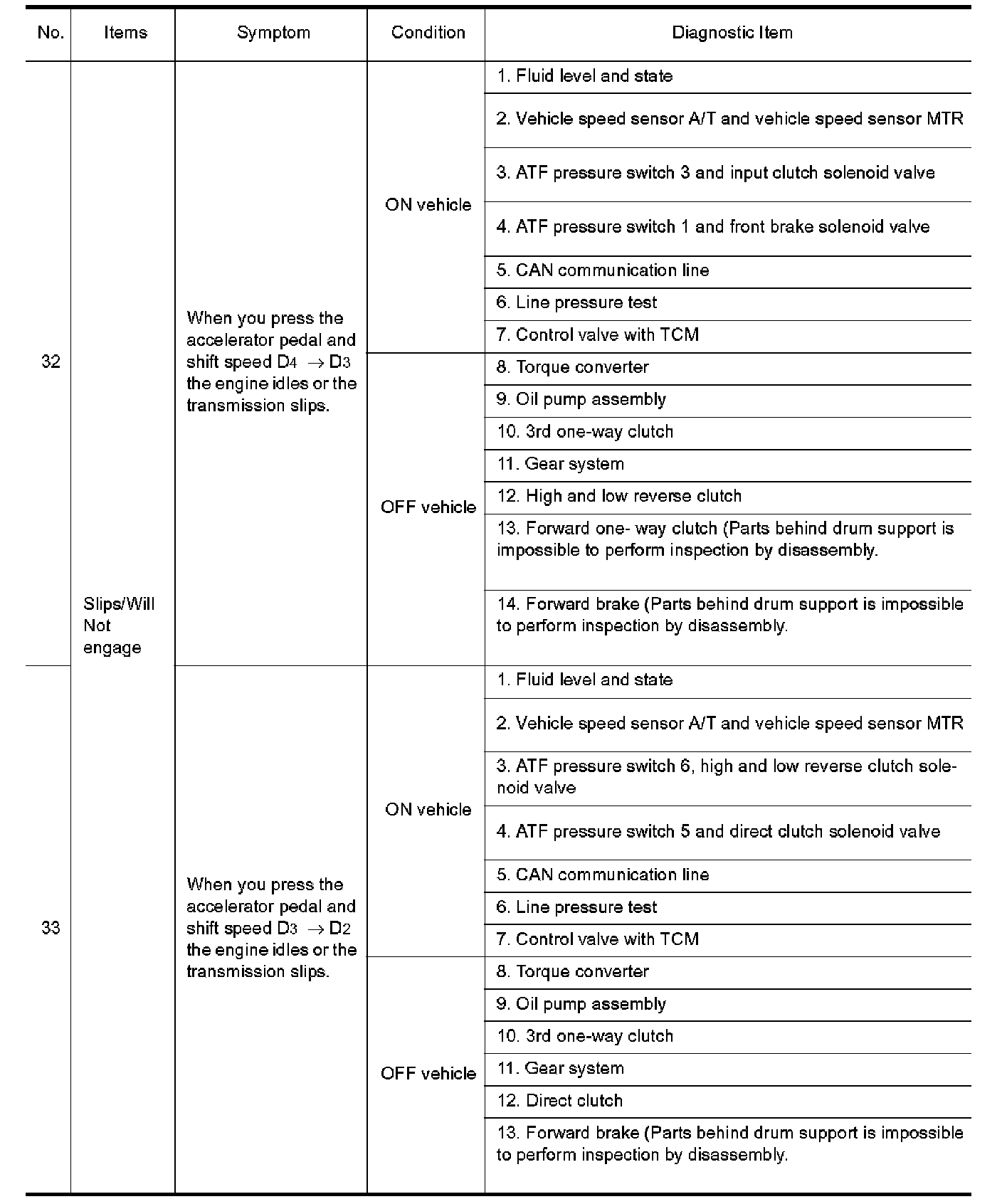

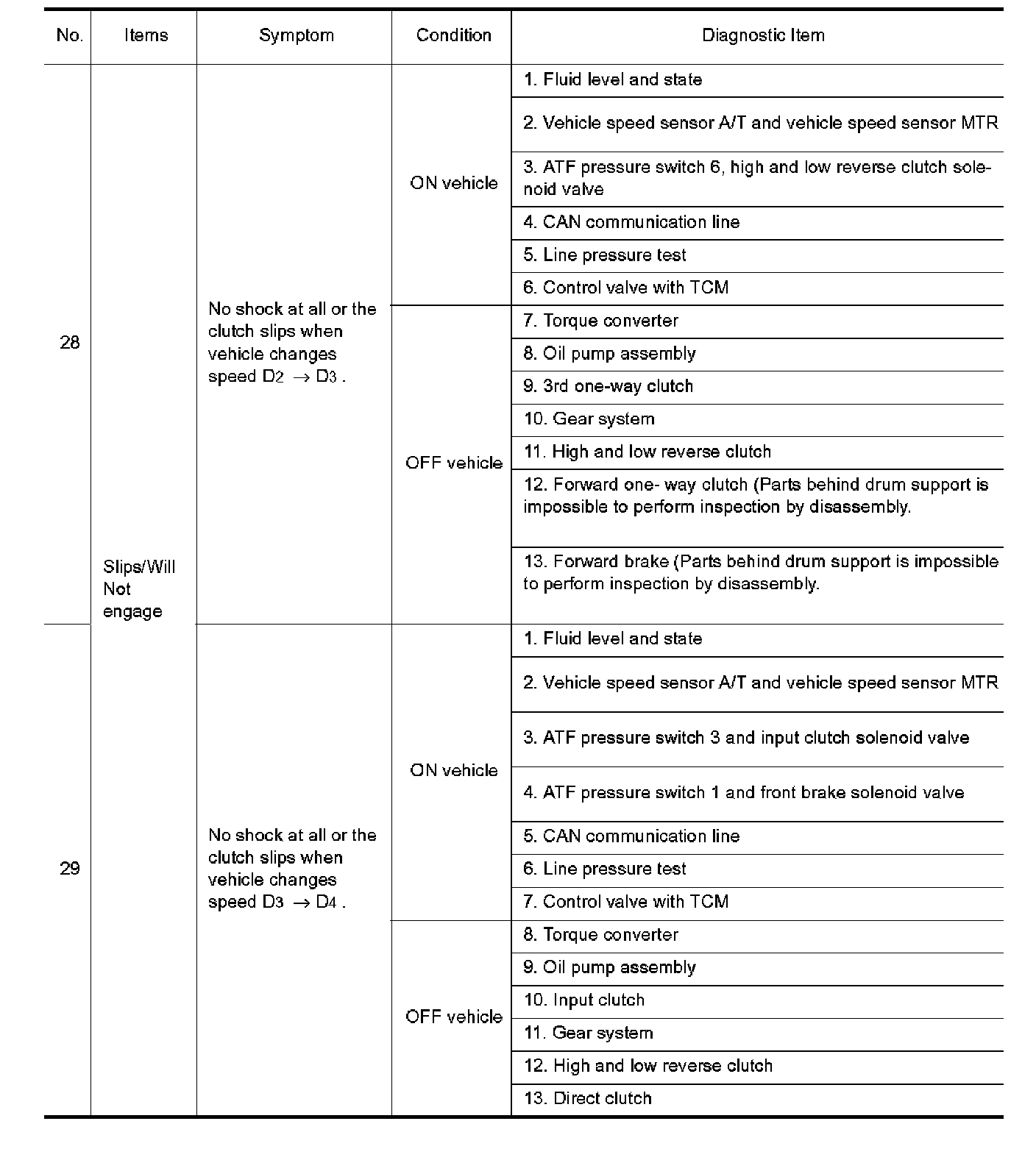

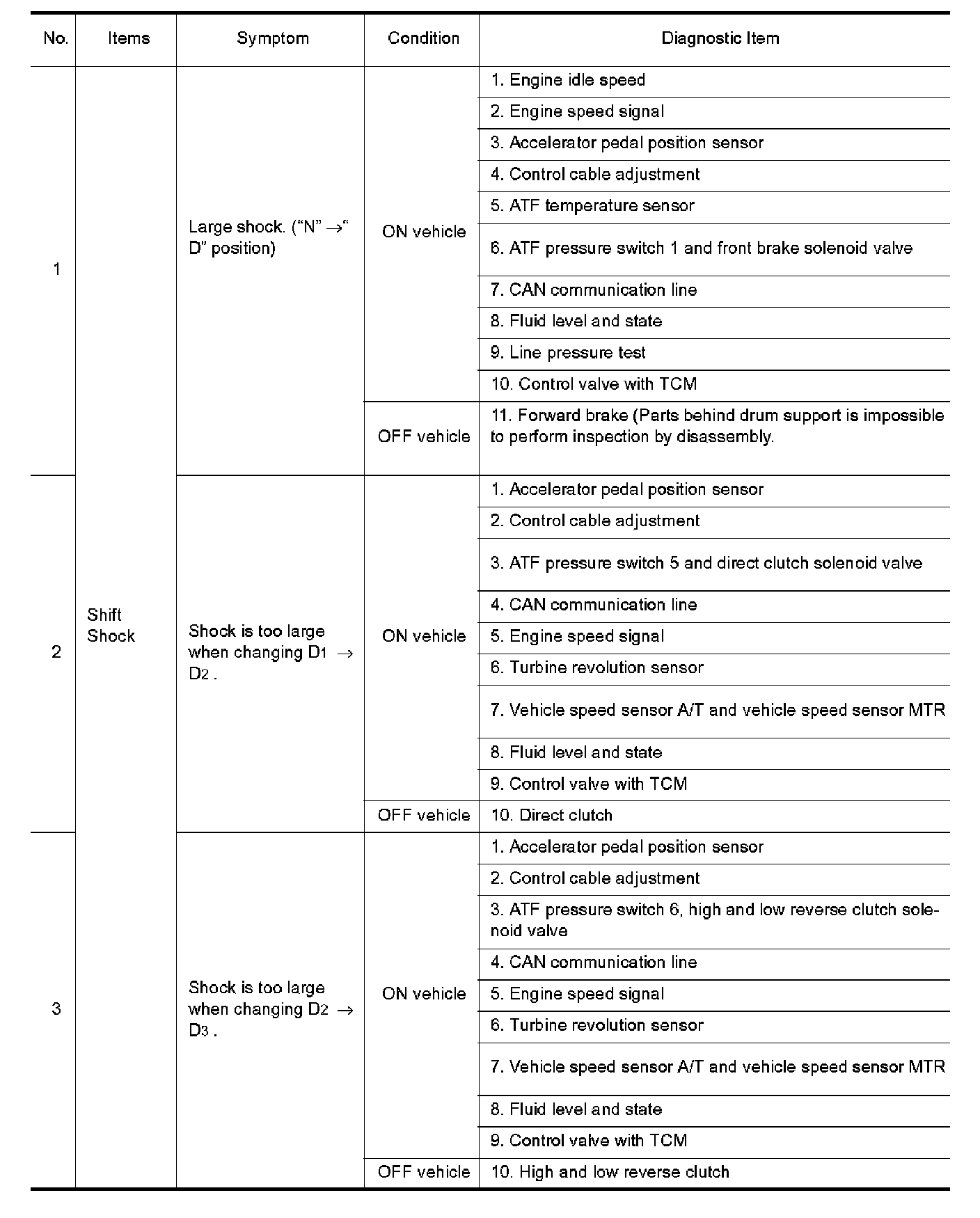

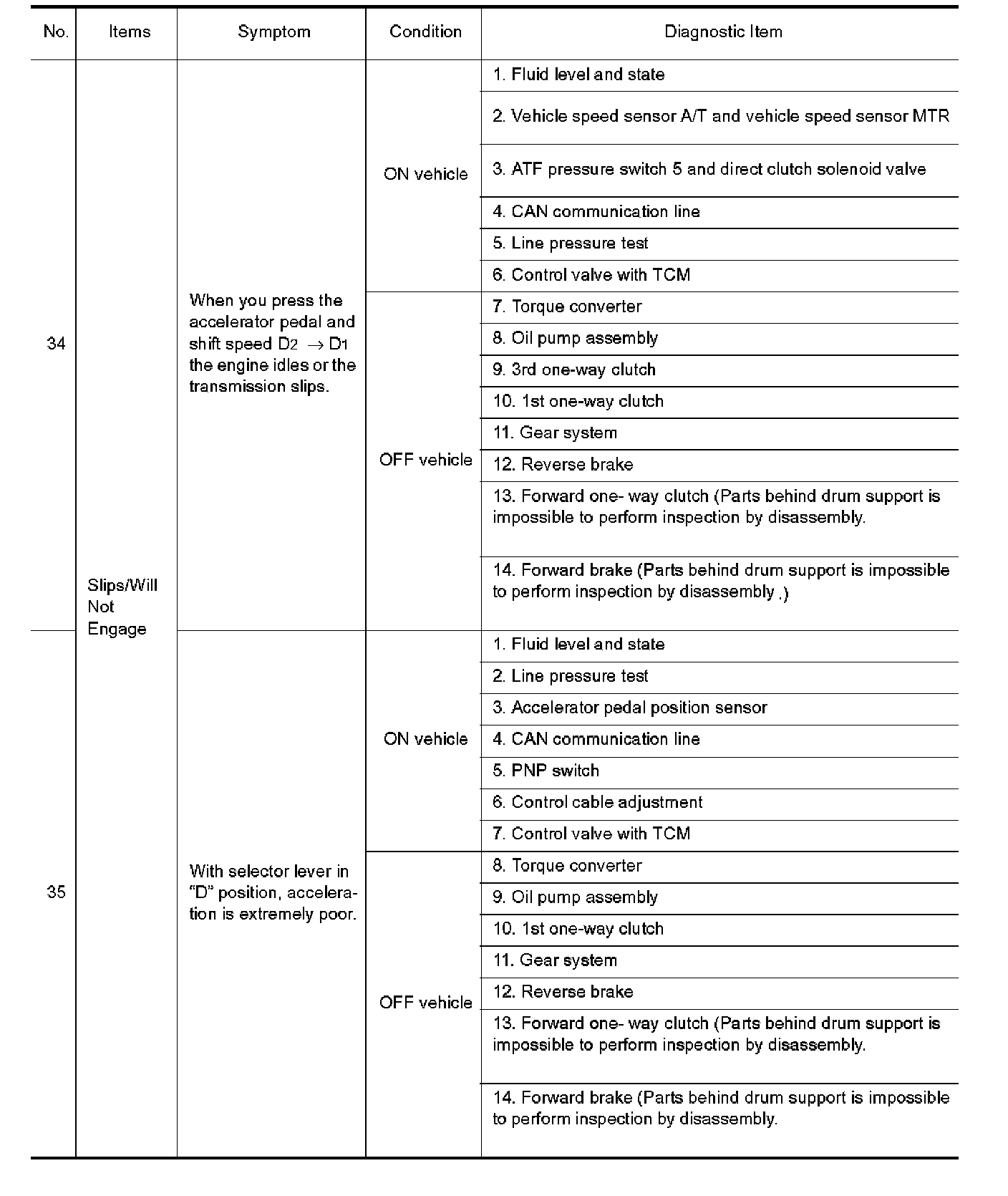

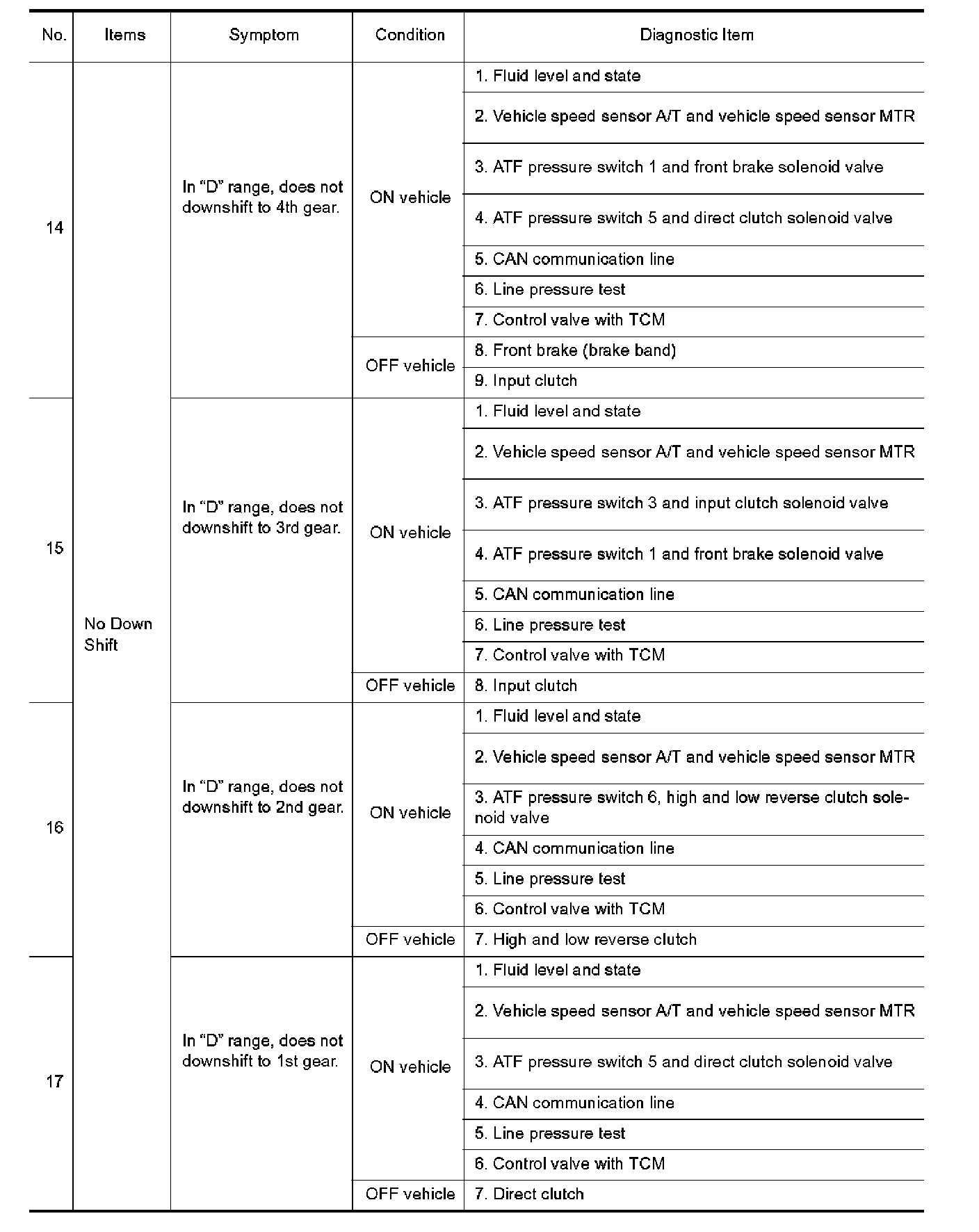

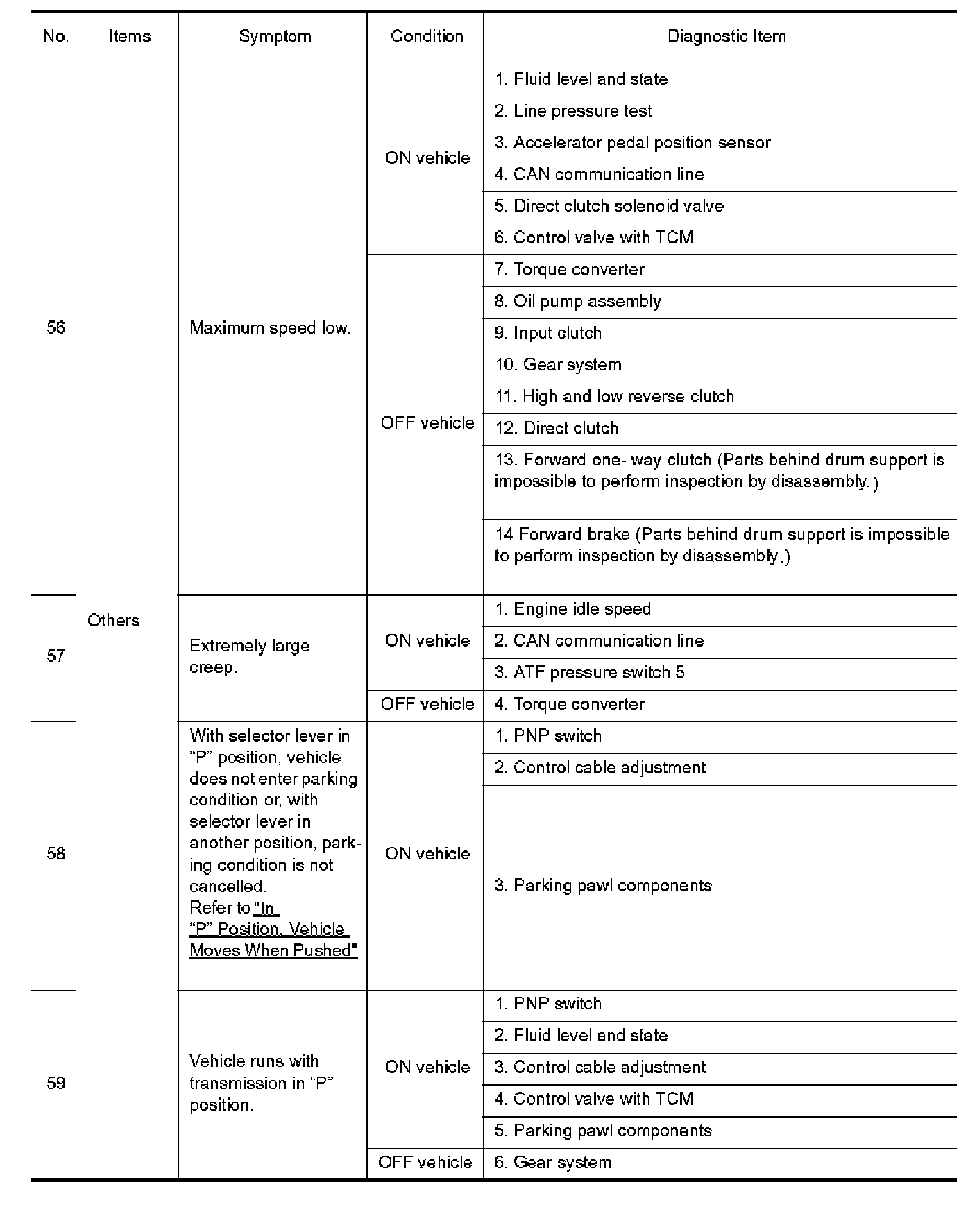

Symptom Chart

Symptom Chart

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

Part 10:

Part 11:

Part 12:

Part 13:

Part 14:

Part 15:

Part 16:

Part 17:

Part 18:

Part 19:

Part 20:

Part 21:

Part 22:

^ The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
^ Overhaul and inspect inside the A/T only if A/T fluid condition is NG.
