Oil Pan, Engine
Oil pan drain plug
34.3 Nm (3.5 kg-m, 25 ft. lbs.)
Oil Pan and Oil Strainer

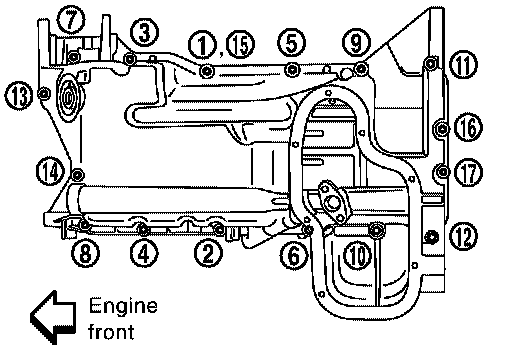

Tighten bolts in numerical order as shown
M6 x 30 mm (1.18 inch): No.15, 16
M8 x 25 mm (0.98 inch): No.1, 3, 5, 7, 11, 13
M8 x 45 mm (1.77 inch): NO.2, 4, 6, 8, 10, 14
M8 x 123 mm (4.84 inch): NO.9, 12
