Steering
SERVICE DATA AND SPECIFICATIONS (SDS)
Steering Wheel

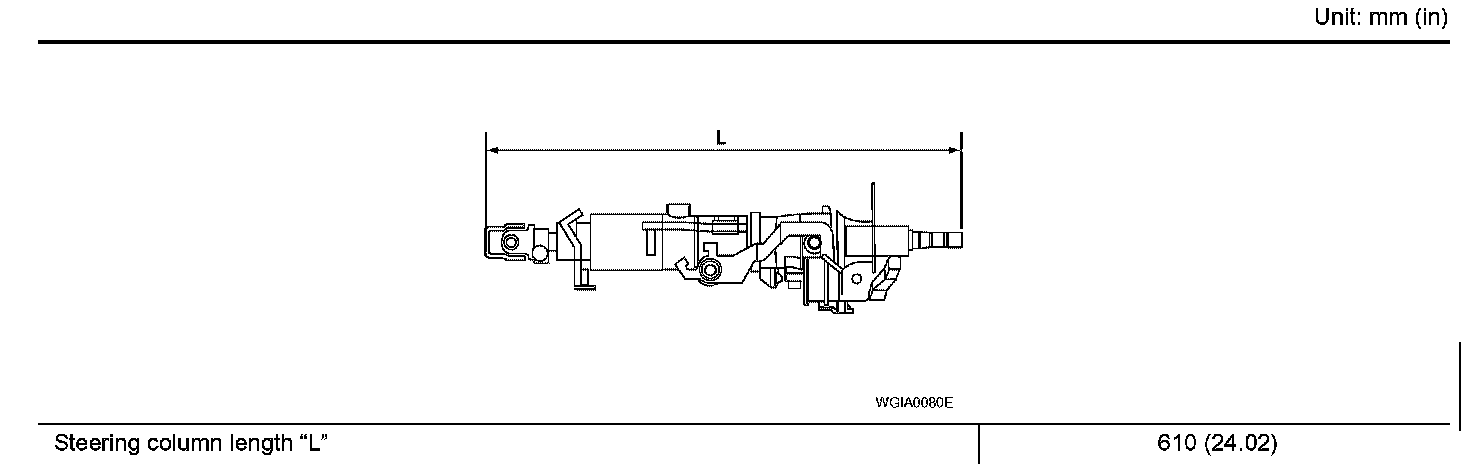

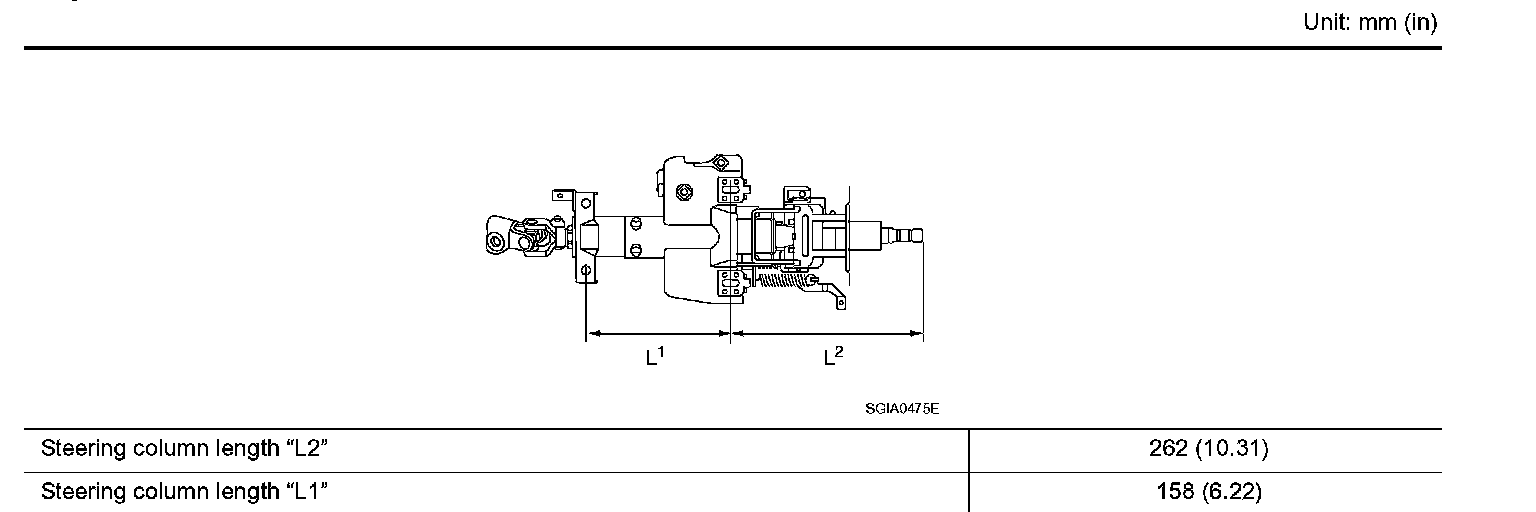

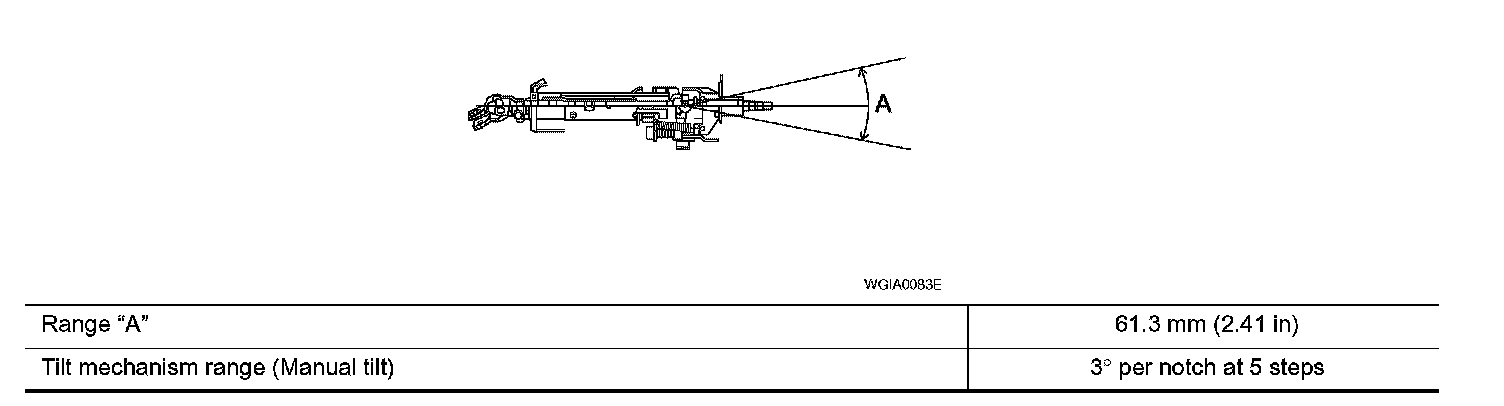

Steering Column
Inspection After Assembly
Inspection After Removal
Inspection After Installation
Steering

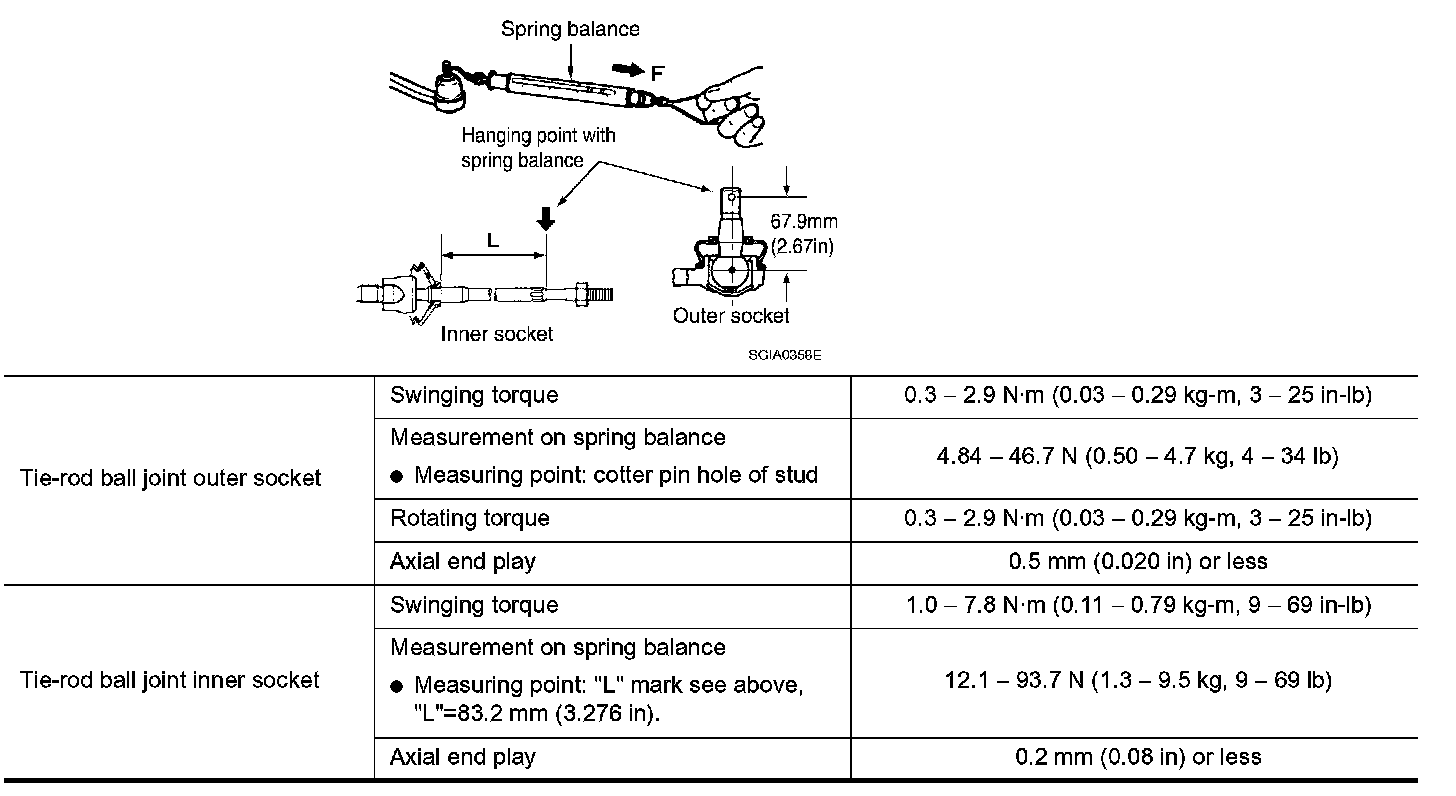

Outer Socket and Inner Socket

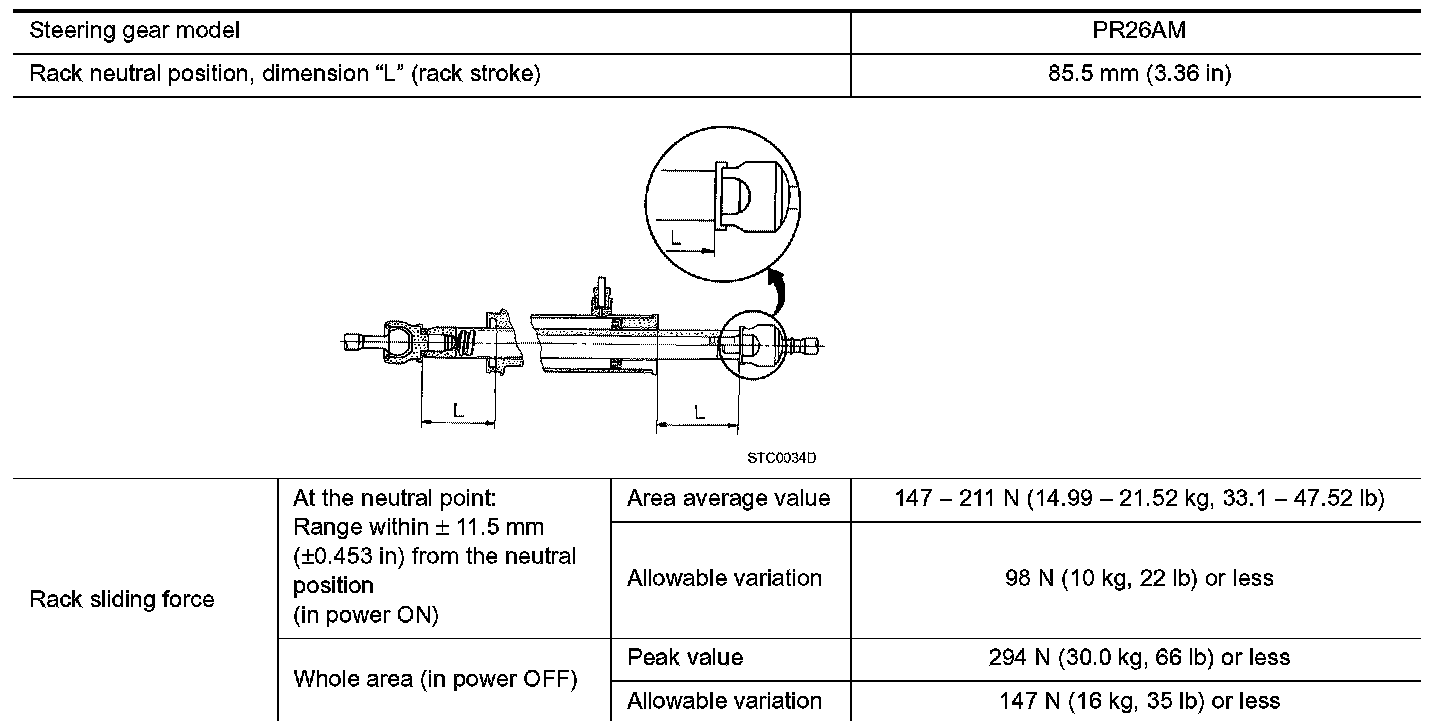

Steering Gear
Oil Pump
Steering
Fluid
