Connecting Rod Bolt Outer Diameter
CONNECTING ROD BOLT OUTER DIAMETER ^

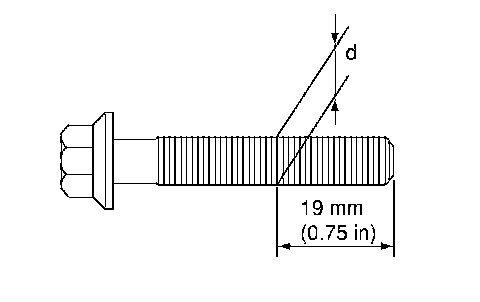

Measure the outer diameter "d" at position shown in the figure.
^
If the reduction appears in a position other than "d", regard it as "d".
Standard :
7.90 - 8.00 mm (0.3110 - 0.3150 inch) Limit :
7.75 mm (0.3051 inch) ^
When "d" exceeds the limit (when it becomes thinner), replace connecting rod bolt with new one.
