Piston Skirt Diameter

Piston Skirt Diameter

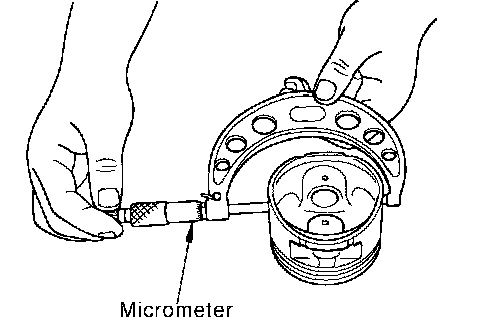

Measure the outer diameter of piston skirt with a micrometer.
Measure point: Distance from the top 41.0 mm (1.614 inch)
Standard: 95.480 - 95.510 mm (3.7590 - 3.7602 inch)
