Intake Manifold
Intake Manifold ^
If stud bolts were removed, install them and tighten to the specified torque below.
10.8 Nm (1.1 kgf-cm, 8 ft. lbs.) ^

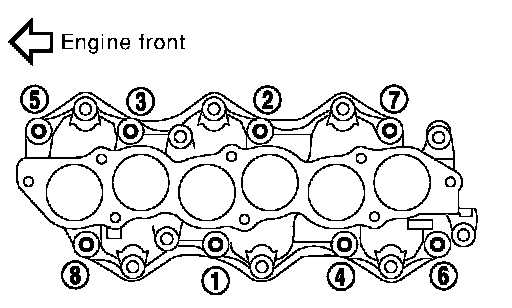

Tighten all mounting bolts and nuts to the specified torque in two or more steps in numerical order shown in the figure.
1st step:
7.4 Nm (0.75 kgf-cm, 5 ft. lbs.)
2nd step and after: 29.0 Nm (3.0 kgf-cm, 21 ft. lbs.)
