Access Cover: Service and Repair

ENGINE ROOM COVER

Components

Removal and Installation
REMOVAL

CAUTION: Do not damage or scratch cover when installing or removing.

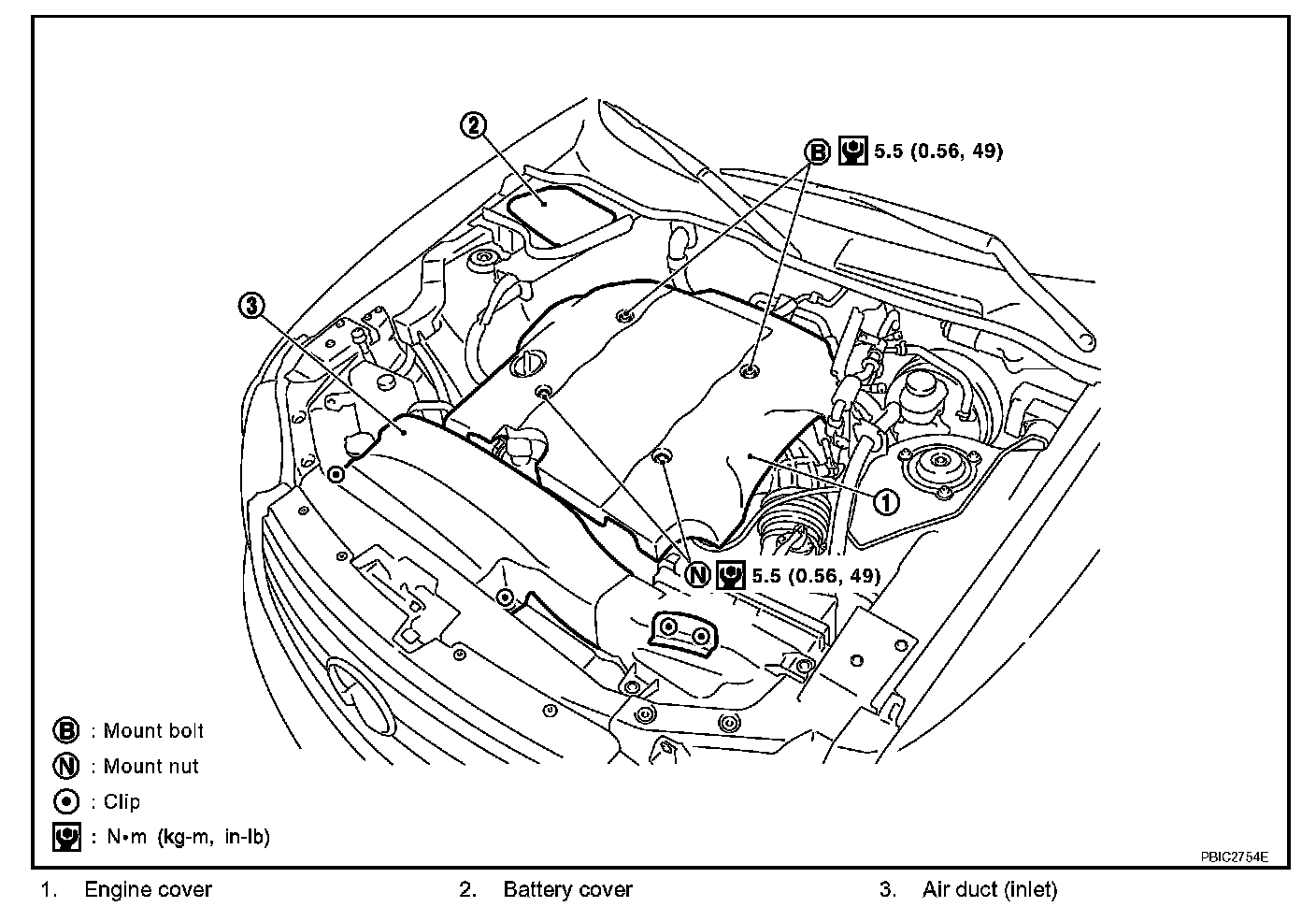

^ Major parts and inspection points under each cover are as follows; (numbered as in the figure)
1. Upper side of engine assembly and power steering reservoir tank
2. Relay and battery
3. Engine assembly front side, drive belts and cooling fan

INSTALLATION
Install in the reverse order of removal.
