Distance Sensor: Service and Repair

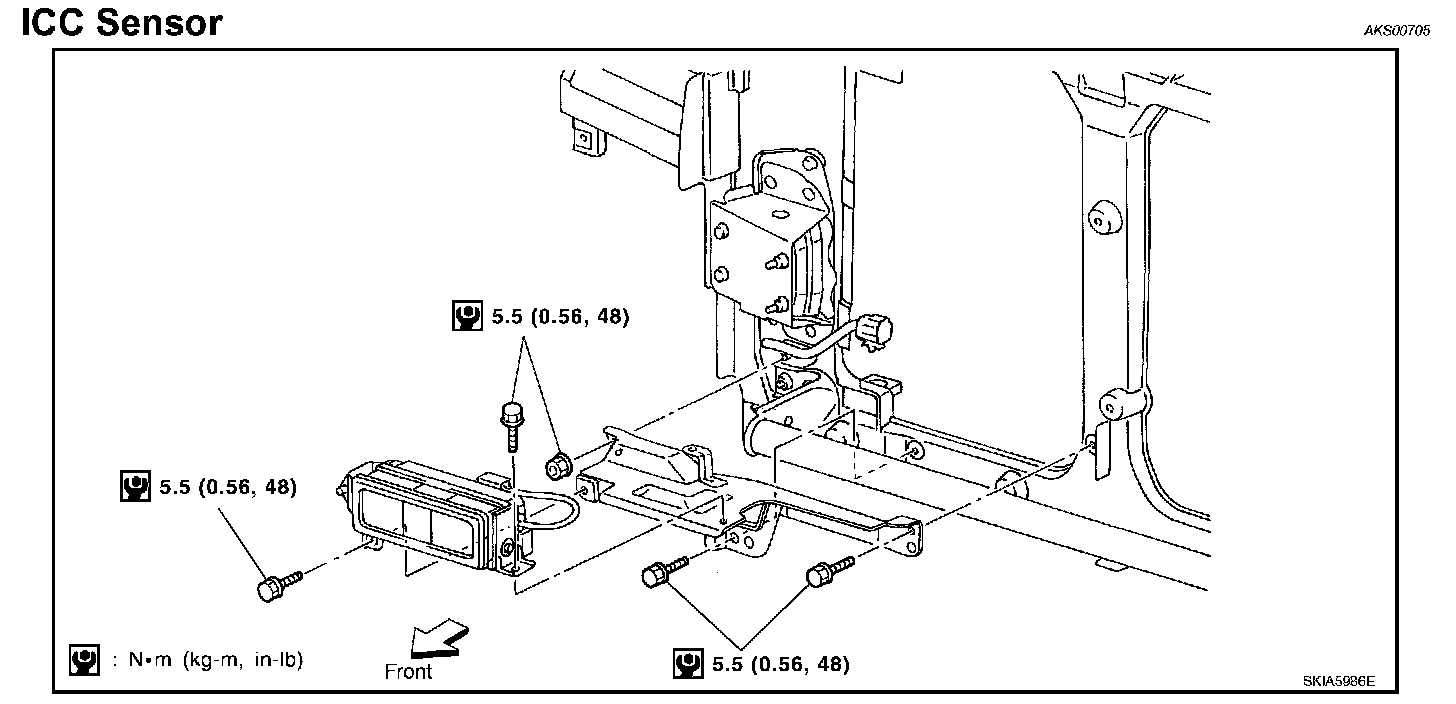

ICC SensorREMOVAL 1.
Remove the front bumper. Refer to "FRONT BUMPER".
2.
Disconnect
ICC sensor connector.
3.
Remove mounting bolts from
ICC sensor.
INSTALLATIONInstallation is the reverse order of removal.
CAUTION: Adjust the laser beam aiming every time the
ICC sensor is removed or installed.
