Optical Sensor
Removal and Installation of Optical SensorREMOVAL 1.
Insert a screwdriver or similar tool and remove front defroster grill (LH). Refer to "(V) Front Defroster Grille (RH/LH)" in "IP" section.
2.
Disconnect optical sensor connector.
3.

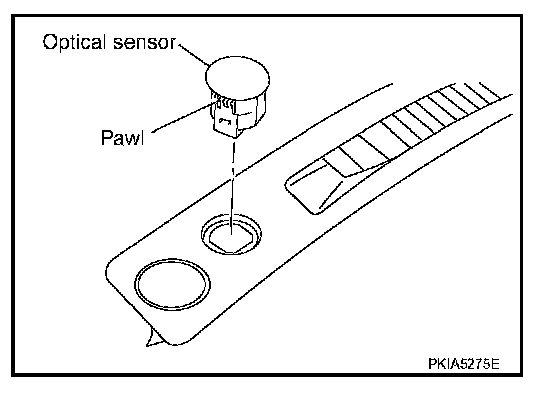

Remove optical sensor.
INSTALLATIONInstallation is the reverse order of removal.
