With Transmitter Activation Tool
ID REGISTRATION WITH ACTIVATION TOOLThis procedure must be done after replacement of a transmitter or BCM.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected during self-diagnosis depending on control unit which performs CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.
2. Select START (NISSAN BASED VHCL).
3. Select BCM on SELECT SYSTEM screen.
NOTE: If BCM is not indicated, go to GI-40, CONSULT-II Data Link Connector (DLC) Circuit. Data Link Connector Schematic
4. Select AIR PRESSURE MONITOR on SELECT WORK ITEM screen.
5. Select WORK SUPPORT on SELECT DIAG MODE screen, and select ID REGIST.

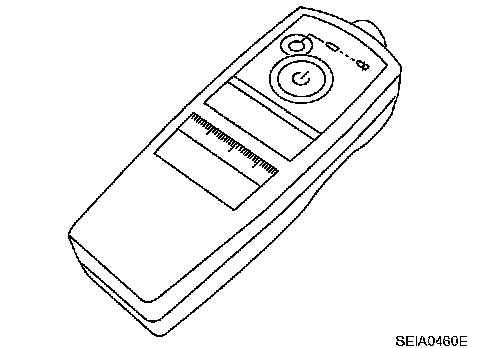

6. With the activation tool (J-45295) pushed against the front left transmitter position of the tire air valve, press and hold the button 5 seconds.

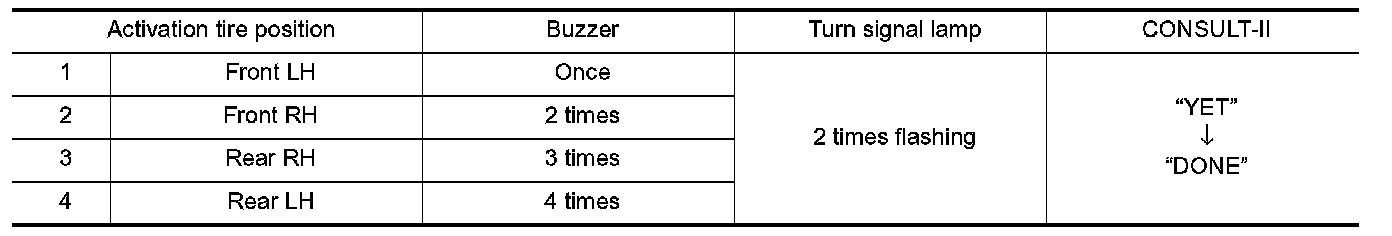

7. Register the IDs in order from FR LH, FR RH, RR RH or RR LH. When ID registration of each wheel has been completed, a buzzer sounds and turn signal lamp (LH/RH) blinks.
8. After completing all ID registrations, press END to complete the procedure.
NOTE: Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
