Reading and Clearing Diagnostic Trouble Codes




CONSULT-II Function (IPDM E/R)

CONSULT-II INSPECTION PROCEDURE

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

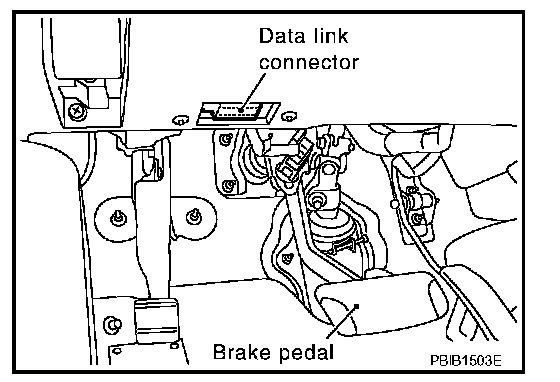

1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.




2. Touch "START (NISSAN BASED VHCL)".

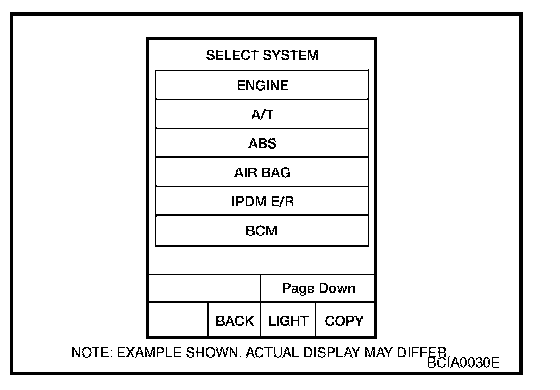

3. Touch "IPDM E/R" on "SELECT SYSTEM" screen.
- If "IPDM E/R" is not indicated, go to GI-40, "CONSULT-II Data Link Connector (DLC) Circuit". Data Link Connector Schematic

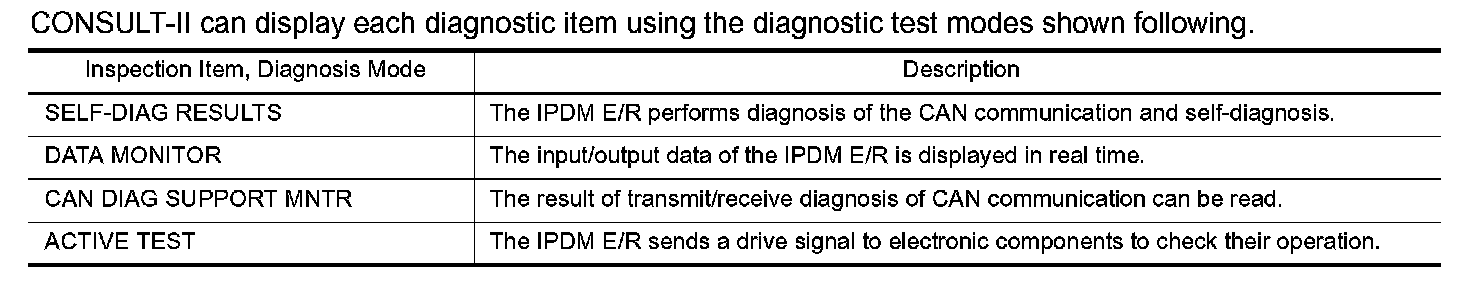

4. Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.
