Ignition Coil: Service and Repair

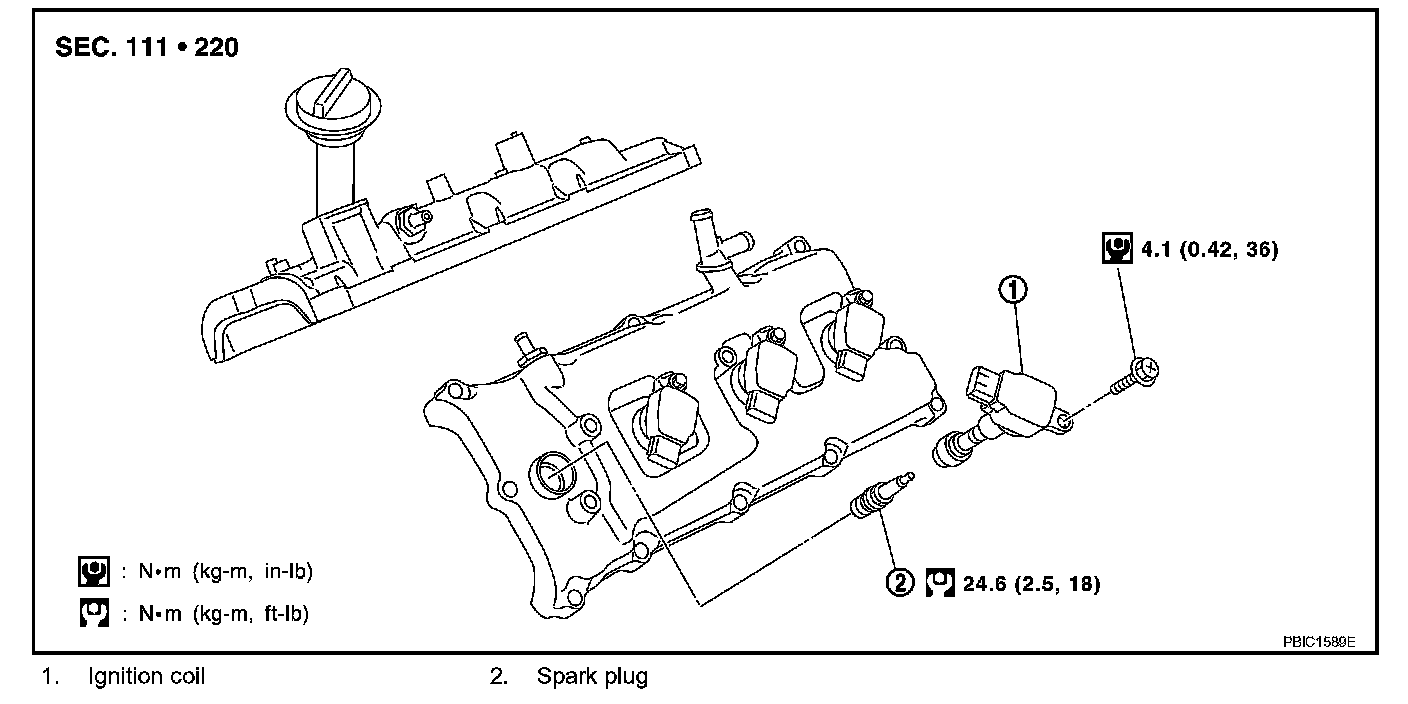

IGNITION COILComponentsRemoval and InstallationREMOVAL 1.
Remove engine cover with power tool.
2.
Remove air duct (inlet), air cleaner case and
mass air flow sensor assembly, air duct and resonator assembly.
3.
Disconnect harness connector from
ignition coil.
4.
Remove
ignition coil.
CAUTION: Do not shock it.
INSTALLATION Install in the reverse order of removal.
