Connecting Rod Side Clearance
CONNECTING ROD SIDE CLEARANCE ^

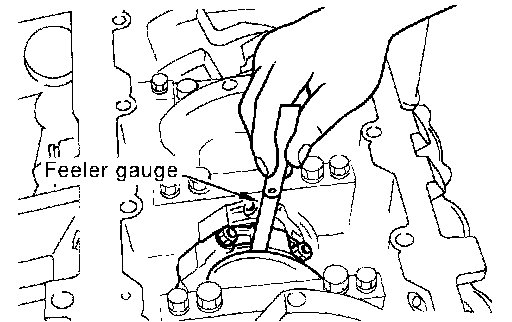

Measure the side clearance between
connecting rod and
crankshaft arm with feeler gauge.
Standard :
0.20 - 0.35 mm (0.0079 - 0.0138 inch) Limit :
0.40 mm (0.0157 inch) ^
If the measured value exceeds the limit, replace
connecting rod, and measure again. If it still exceeds the limit, replace
crankshaft also.
