Crankshaft Pin Journal Diameter
CRANKSHAFT PIN JOURNAL DIAMETER ^

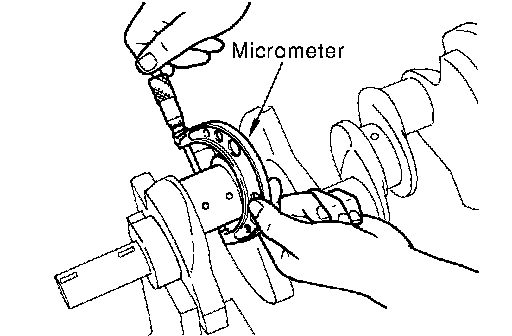

Measure the outer diameter of
crankshaft pin journal with micrometer.
Standard :
63.940 - 63.964 mm (2.5173 - 2.5183 inch)dia.
^
If out of the standard, measure the
connecting rod bearing oil clearance. Then use undersize bearing.
