Piston Skirt Diameter

Piston Skirt Diameter

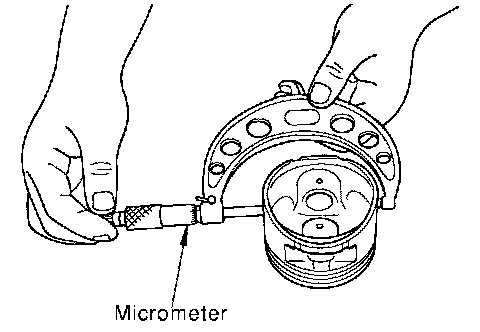

^ Measure the outer diameter of piston skirt with micrometer. Standard
92.980 - 93.010 mm (3.6606 - 3.6618 inch)

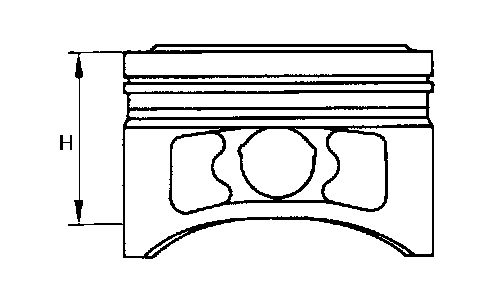

^ Measure point "H" (Distance from the top): 42 mm (1.65 inch)
