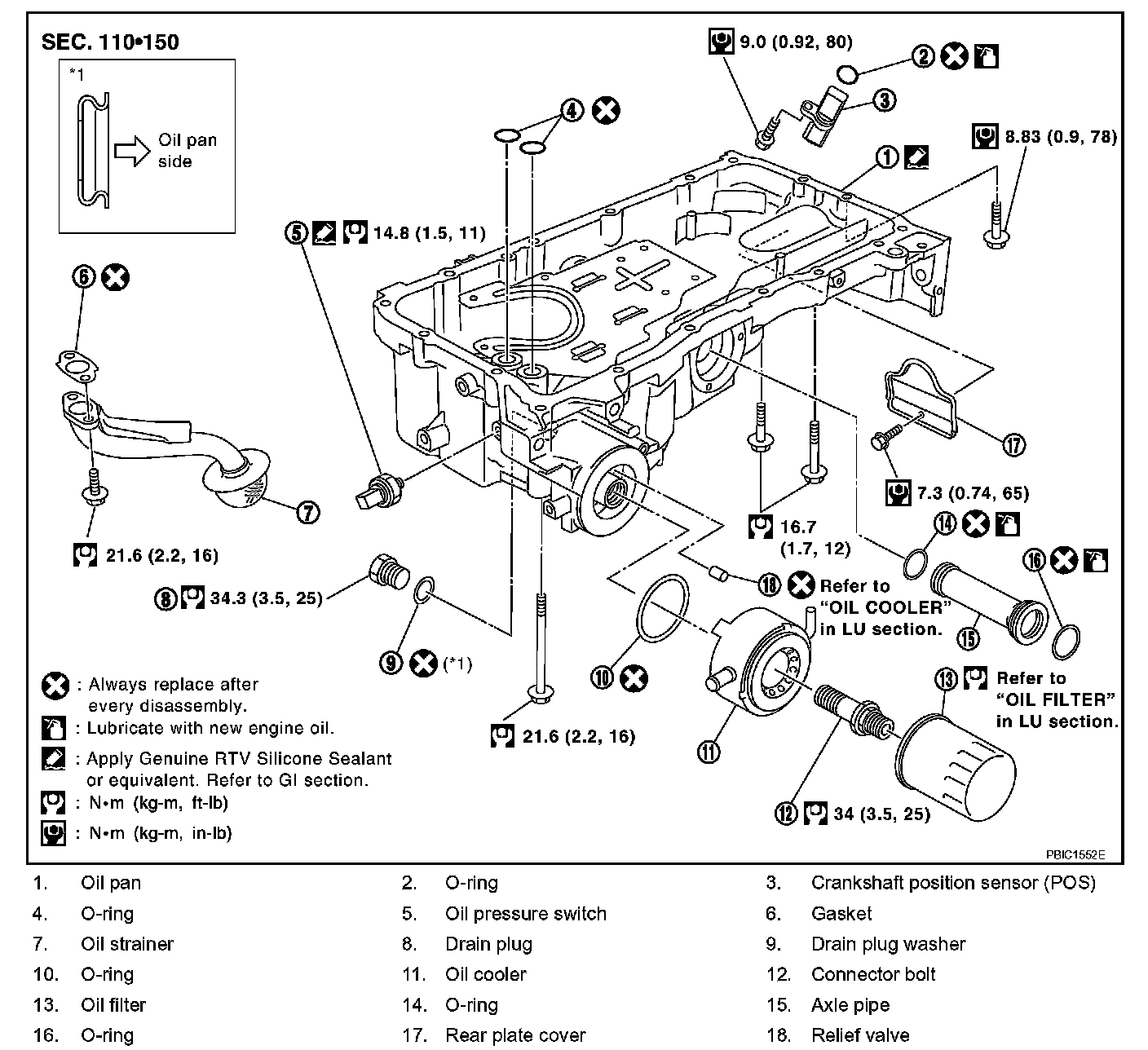

Oil Pan, Engine
^

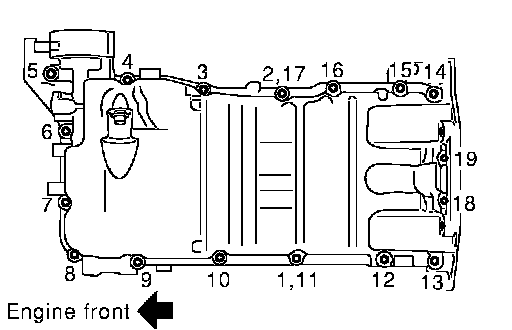

Tighten mounting bolts in numerical order as shown in the figure.
NOTE: Tighten mounting bolts No. 1 and 2 in two steps. The numerical order No. 11 and 17 shown second steps.
^
There are three types of mounting bolts. Refer to the following for locating bolts.
M8 x
30 mm (1.18 inch): 18,19
M8 x
100 mm (3.94 inch): 5, 9
M8 x
45 mm (1.77 inch) : Except the above
