Timing Components

c. Apply engine oil onto threaded parts of crankshaft pulley bolt and seating area.
d. Tighten crankshaft pulley bolt.
93.1 Nm (9.5 kgf-cm, 69 ft. lbs.)

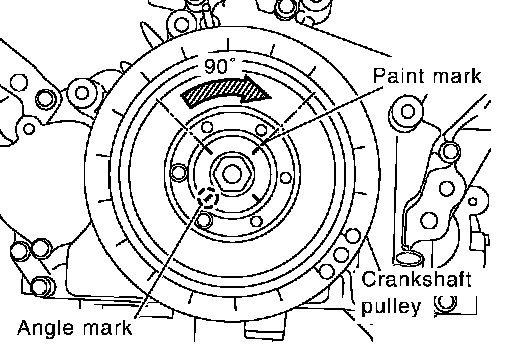

e. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.





f. Further tighten by 90 degrees. (Angle tightening)
^ Check the tightening angle by referencing to the notches. The angle between two notches is 90 degrees.
15. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
16. Install in the reverse order of removal after this step.
