Heater Core: Service and Repair
HEATER CORERemoval and InstallationREMOVAL 1.
Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY".
Service and Repair 2.

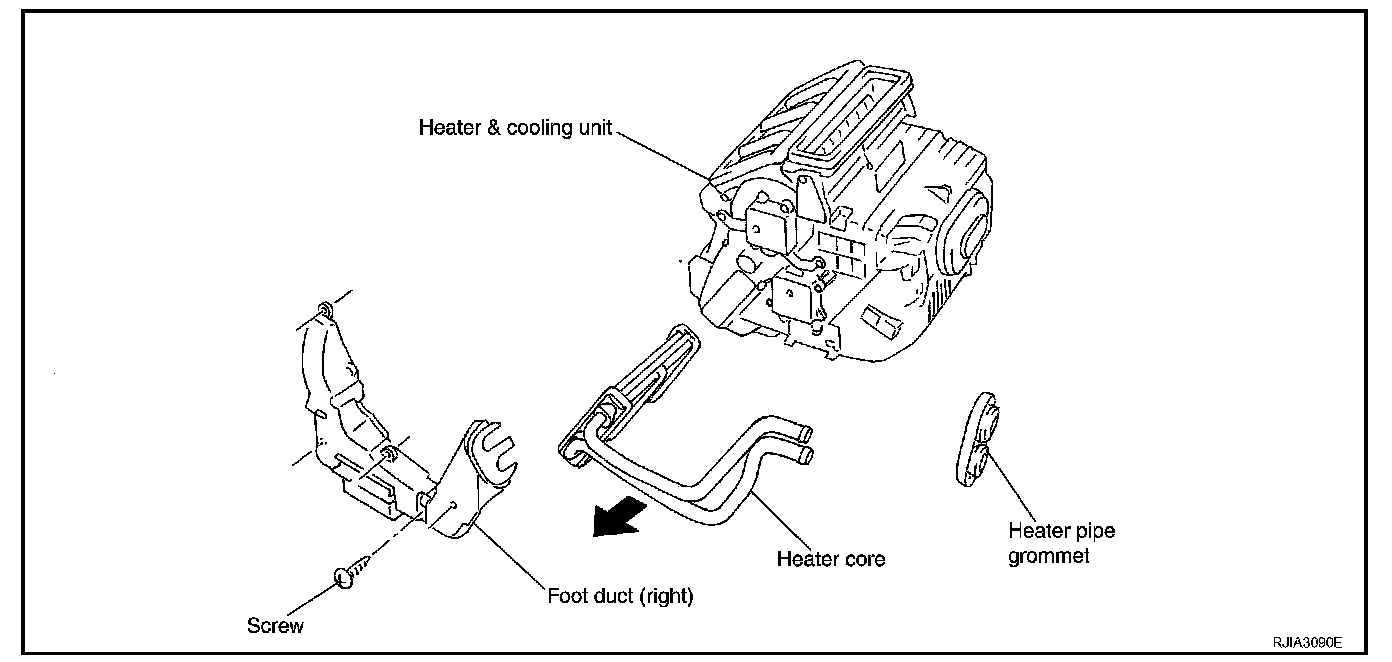

Remove mounting screw, and then remove foot duct (right).
3.
Remove
heater core from heater & cooling unit.
INSTALLATIONInstallation is basically the reverse order of removal.
