Removal and Installation of Display Control Unit

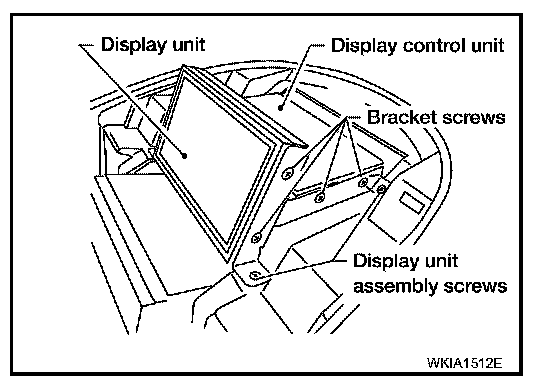

Removal and Installation of Display Control Unit 1.
Remove cluster lid D.
2.
Remove the four display unit assembly screws.
3.
Disconnect connectors and remove display unit assembly.
4.
Remove screws and remove display control unit from brackets.
5.
Installation is in reverse order of removal.
