Data Monitor

Part 1:

Part 2:

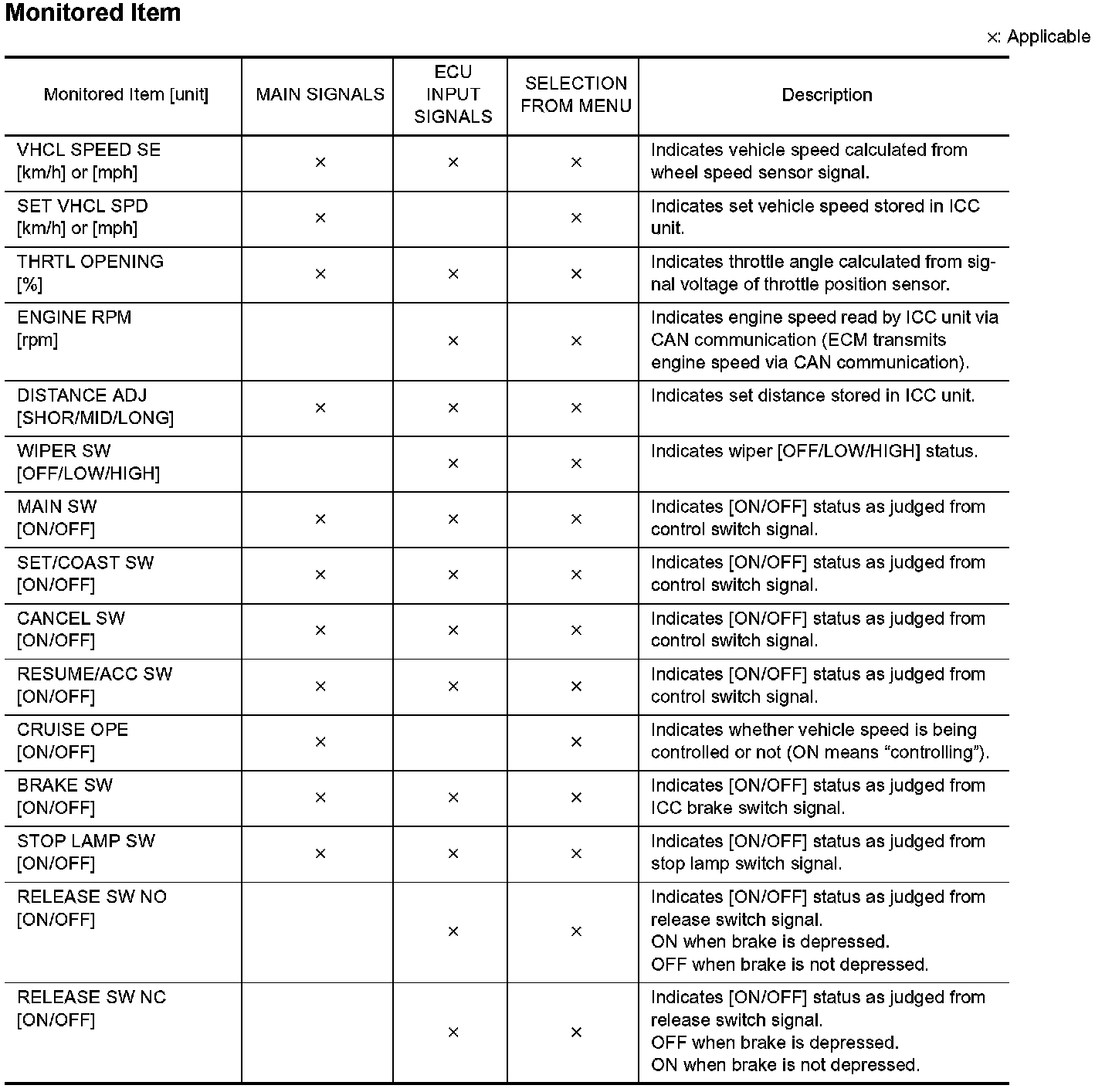

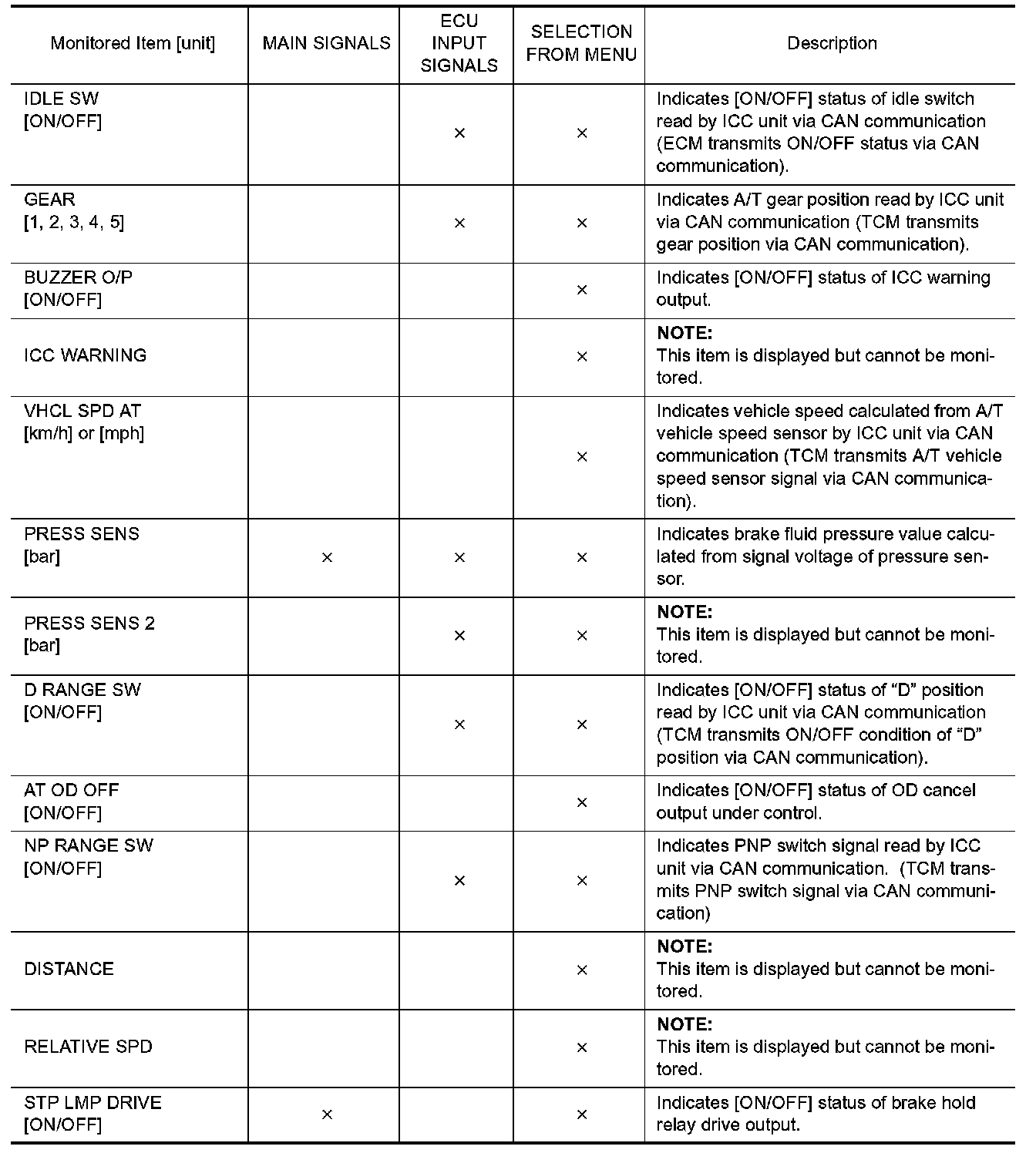

DATA MONITOR

Operation Procedure
1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

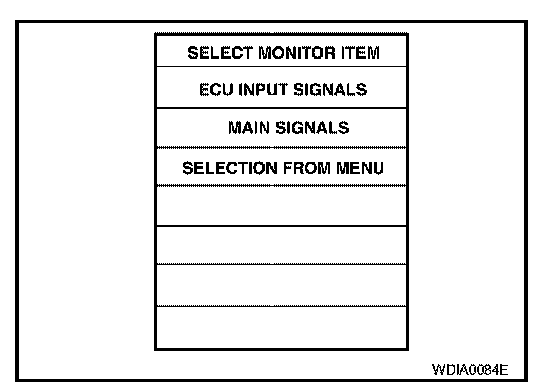

2. Touch "ECU INPUT SIGNALS", "MAIN SIGNALS", or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
