Control Assembly: Service and Repair

CONTROL UNIT

Removal and Installation

FRONT AIR CONTROL

Removal
1. Remove the five control knobs from the front air control unit.
2. Remove the cluster lid C. Refer to "Cluster Lid C".

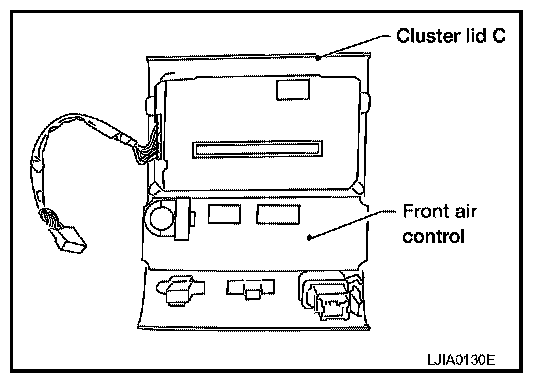

3. Remove the four screws securing the front air control unit to cluster lid C.
4. Remove the front air control unit.

Installation
Installation is in the reverse order of removal.

REAR AIR CONTROL

Removal
1. Remove the overhead console from the headliner. Refer to "HEADLINING".

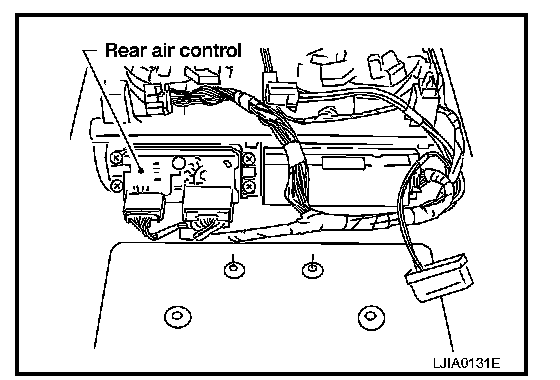

2. Remove the four screws and remove the rear air control.

Installation
Installation is in the reverse order of removal.
