Input/Output Signal Reference Values

Transfer Control Unit Input/Output Signal Reference Values

TRANSFER CONTROL UNIT INSPECTION TABLE

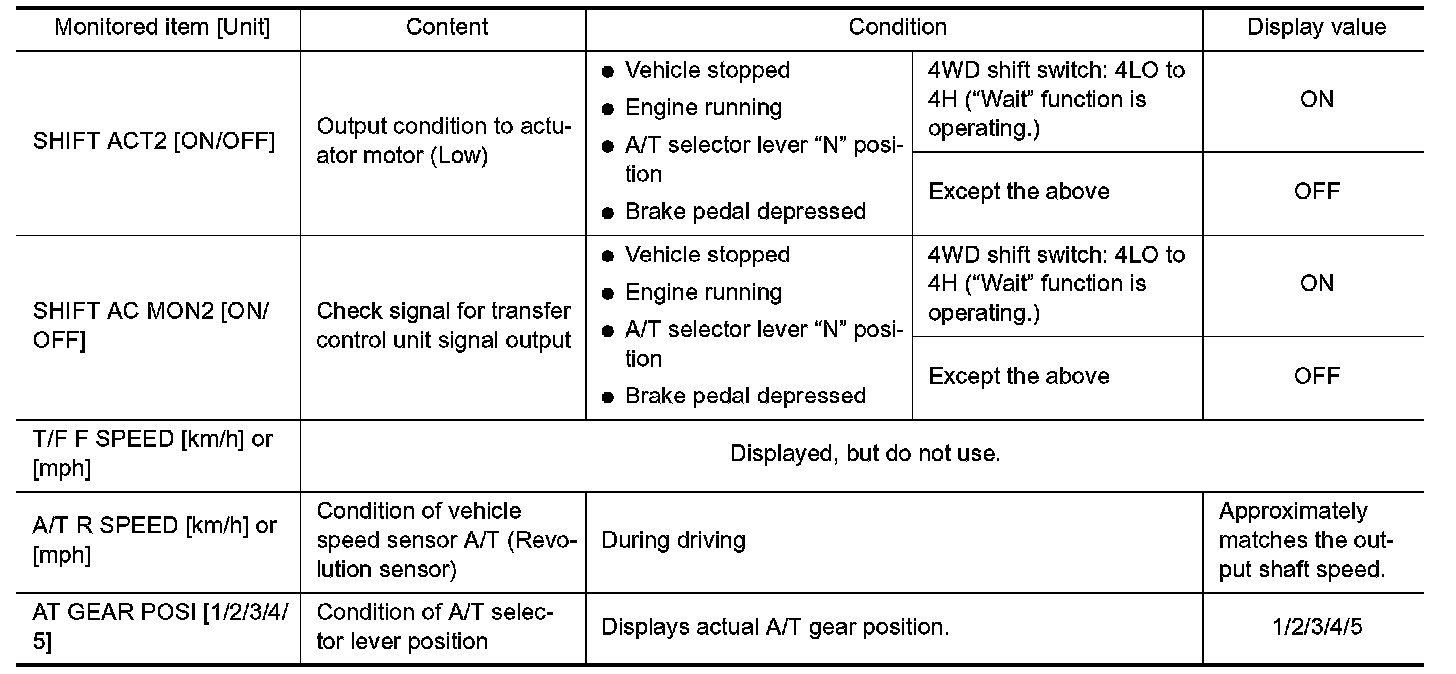

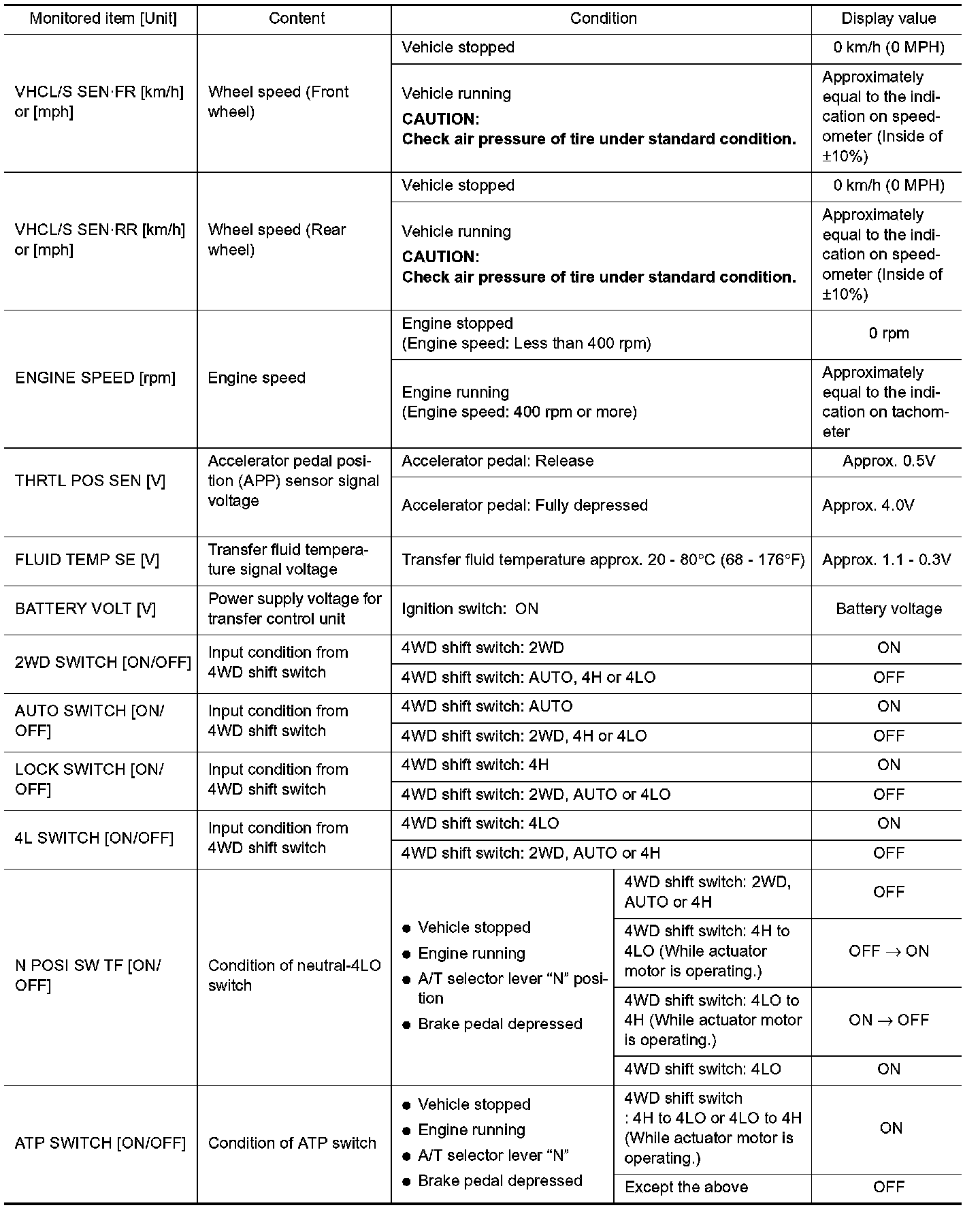

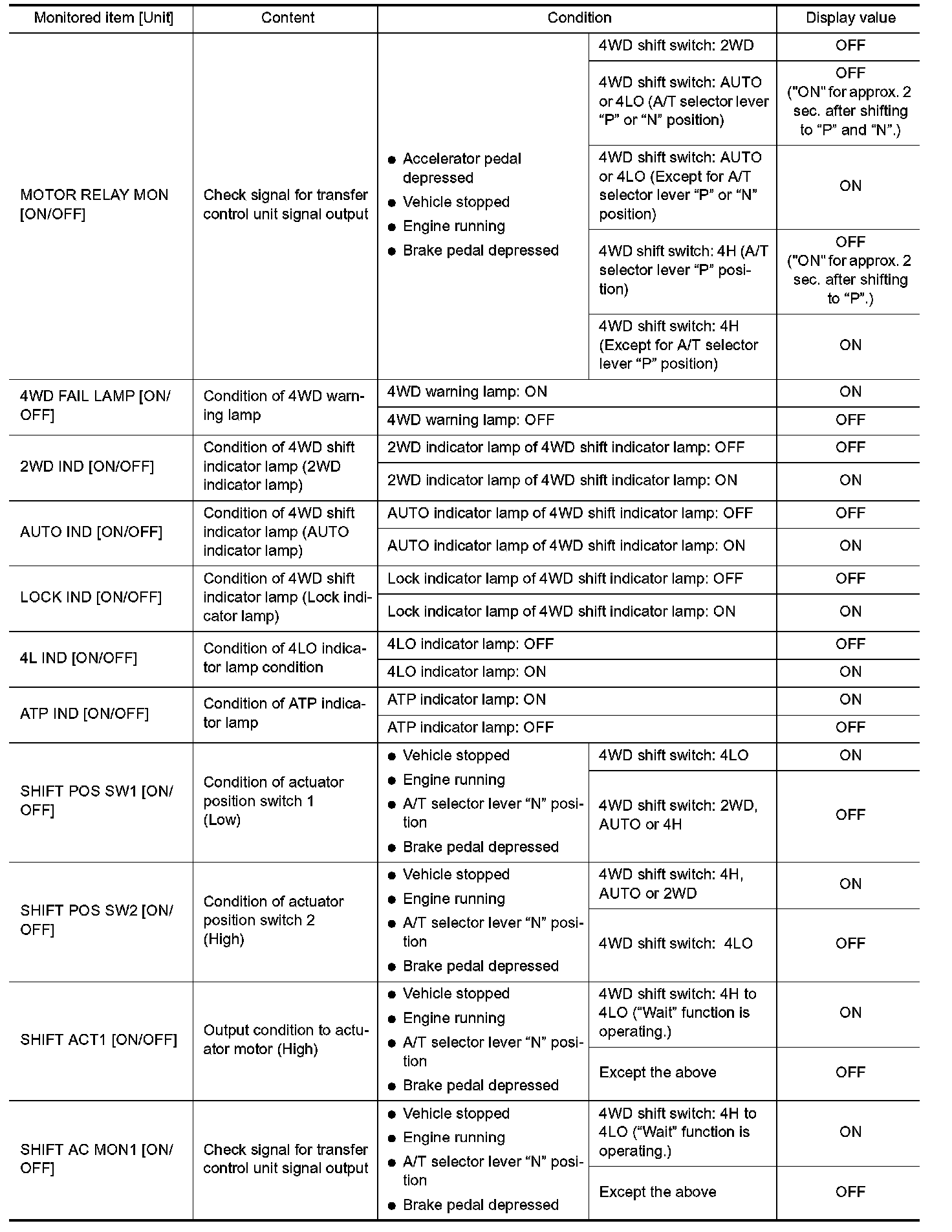

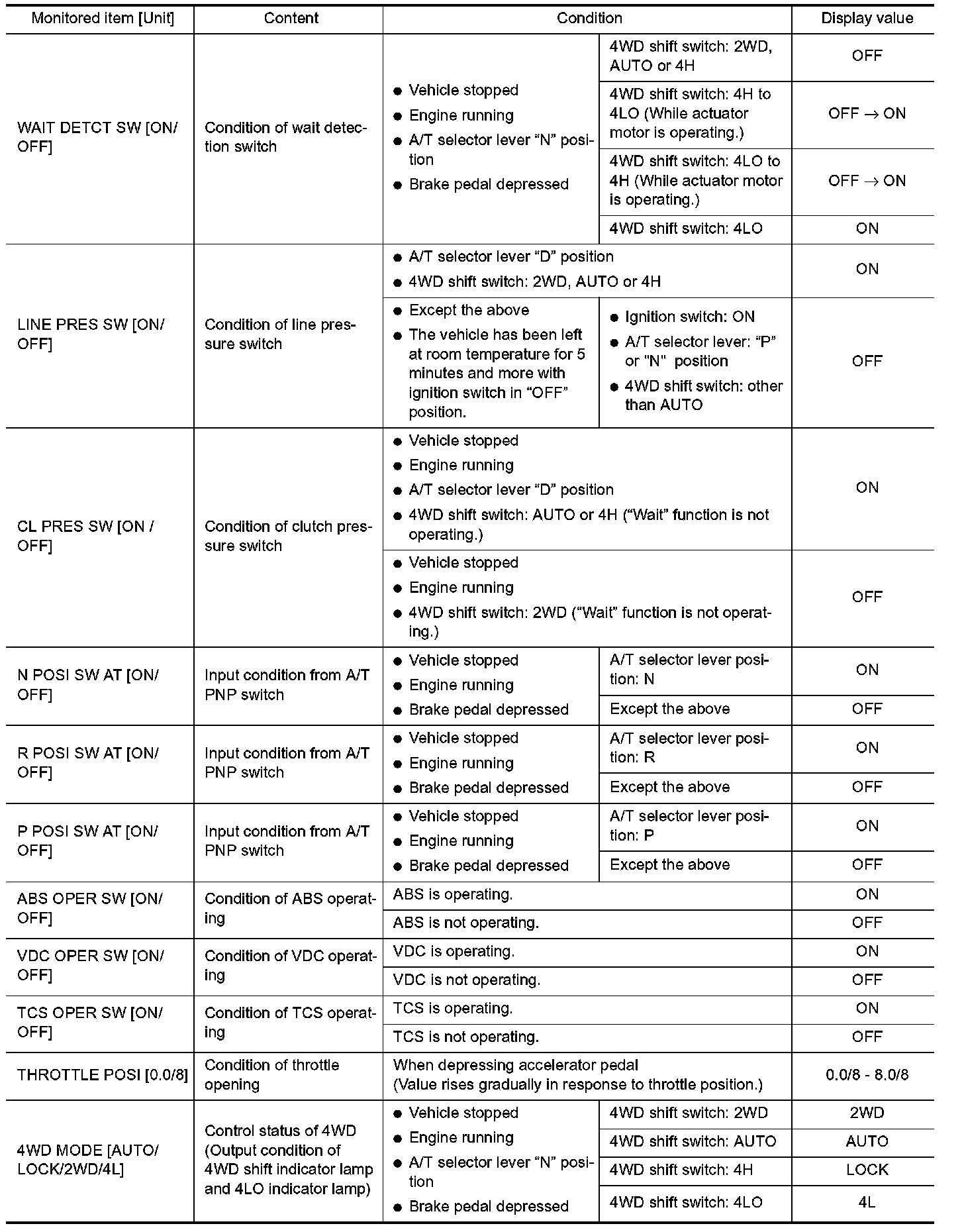

Specifications with CONSULT-II

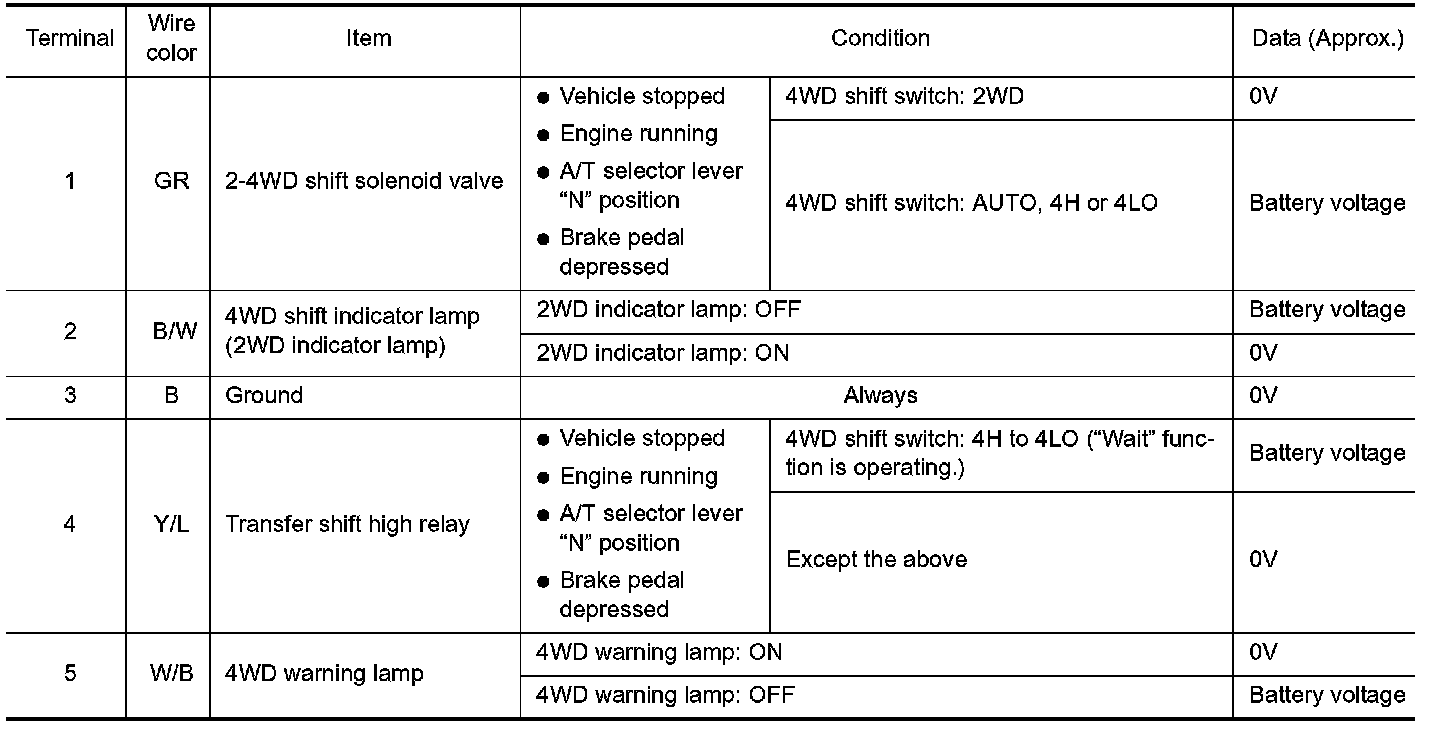

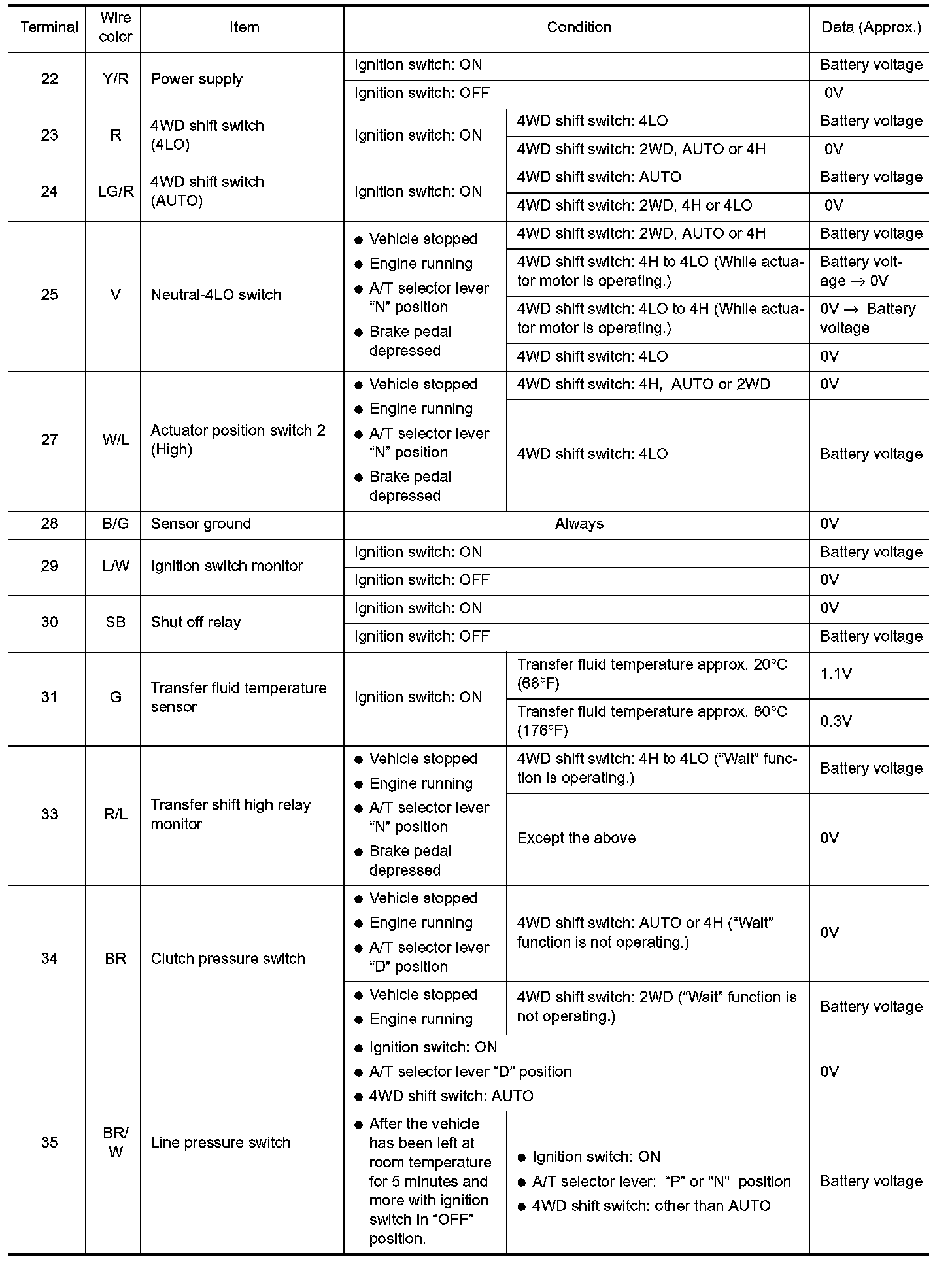

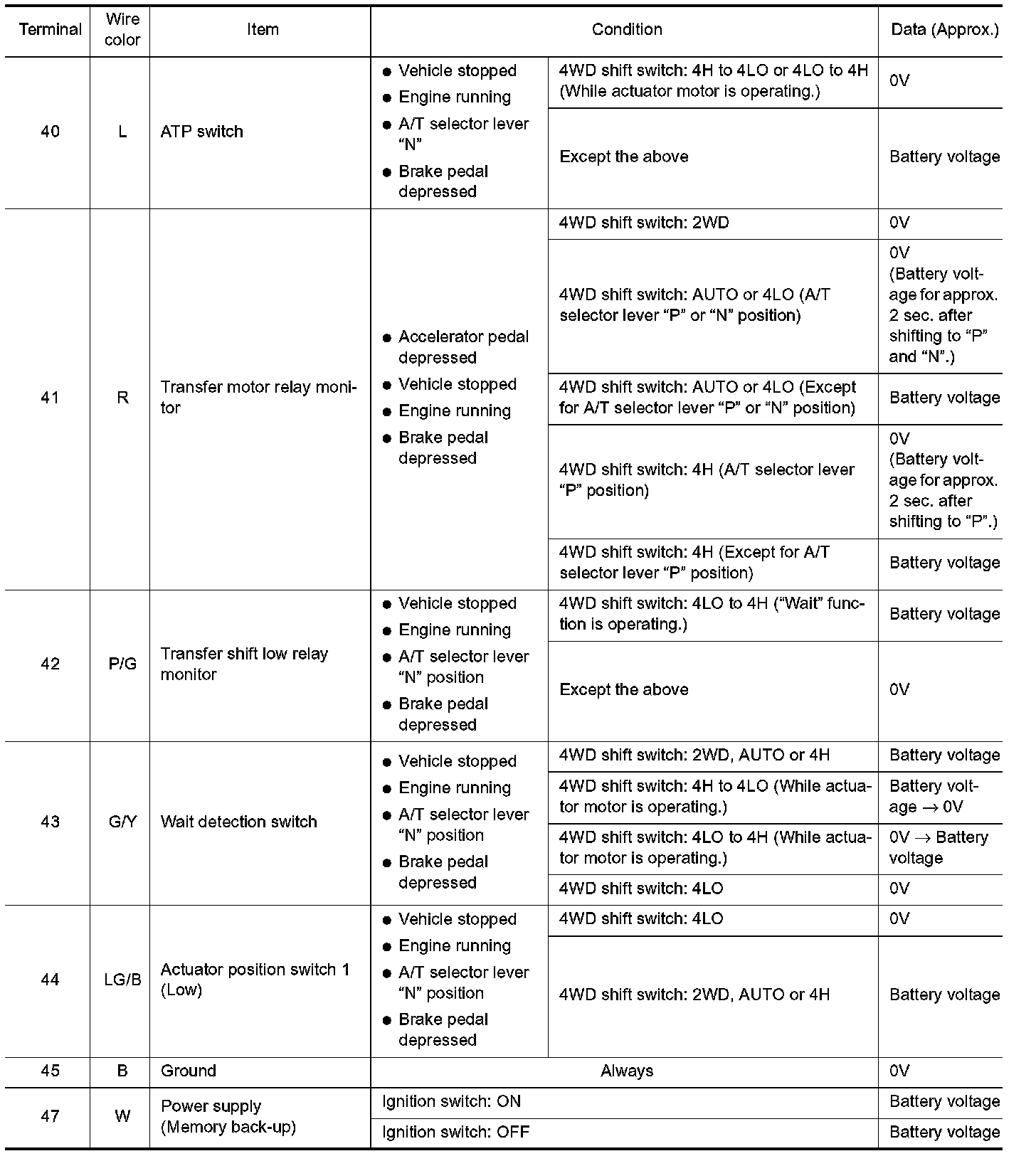

Specifications Between Transfer Control Unit Terminals

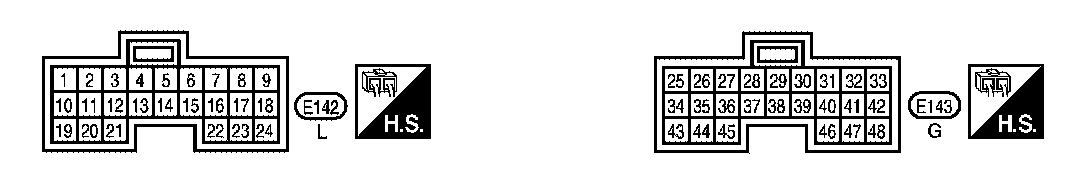

TRANSFER CONTROL UNIT TERMINAL CONNECTOR LAYOUT














NOTE: Data are reference value and are measured between each terminal and ground.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
