Scan Tool Testing and Procedures

CAN Diagnostic Support Monitor

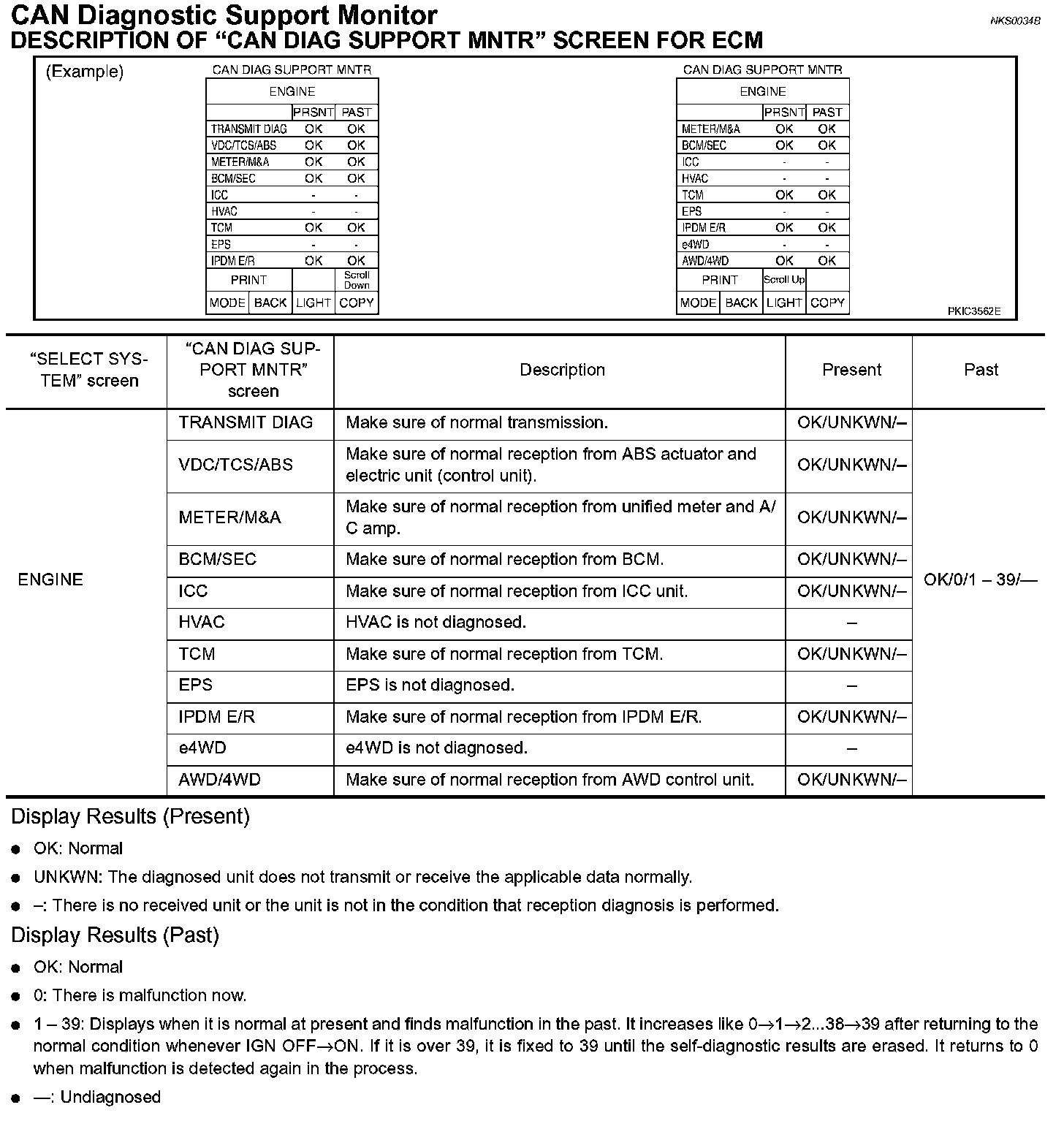

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ECM

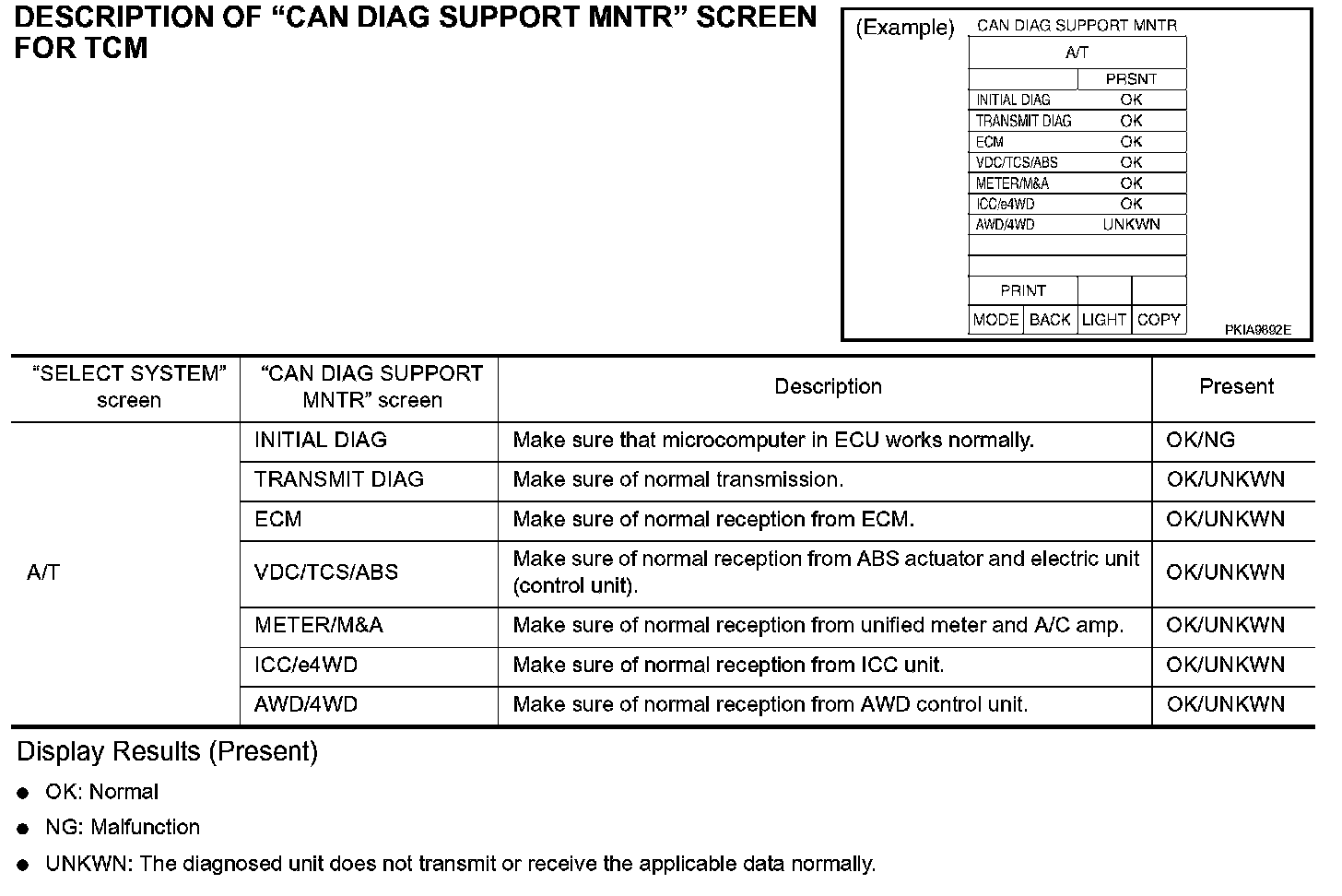

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR TCM

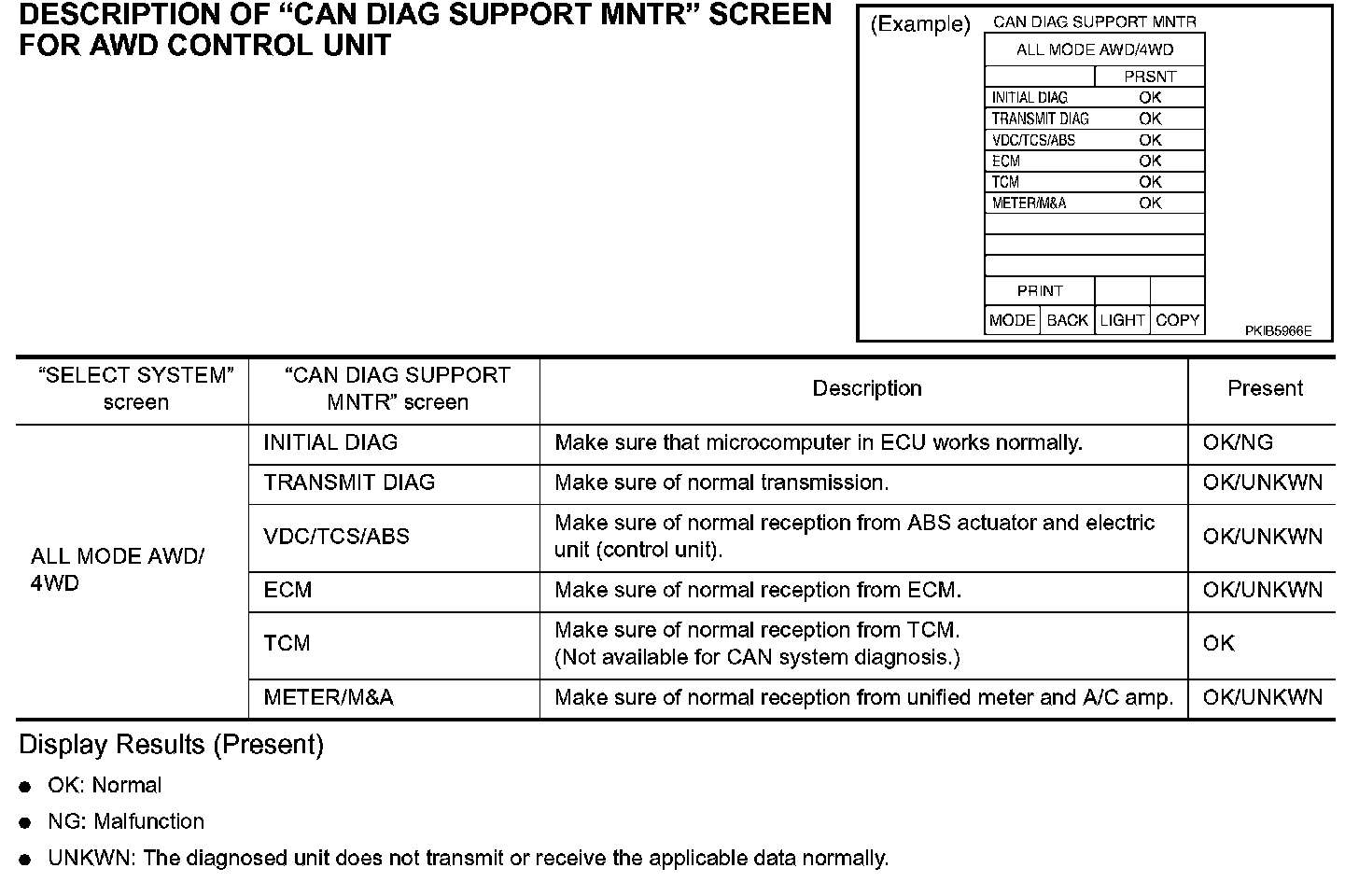

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR AWD CONTROL UNIT

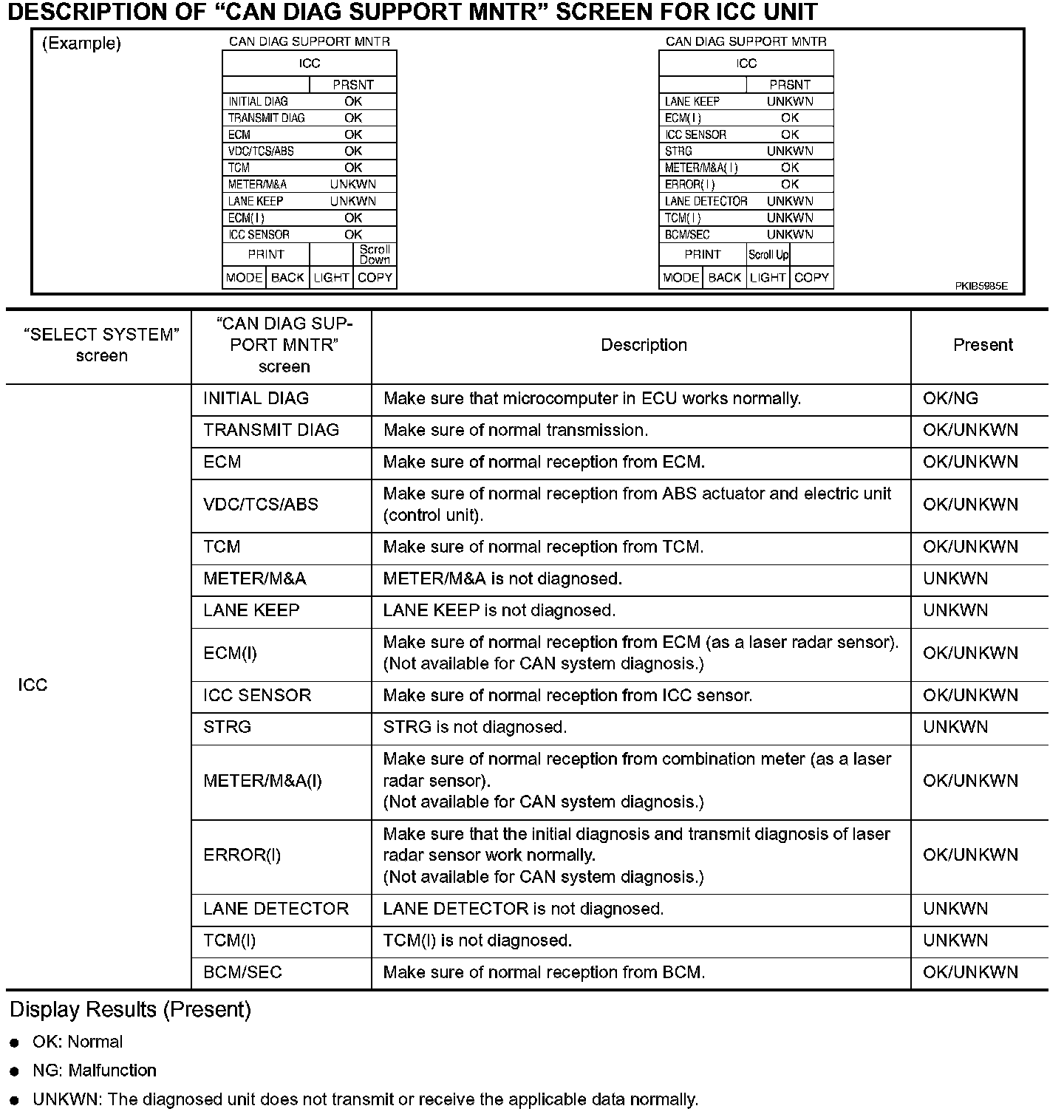

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ICC UNIT

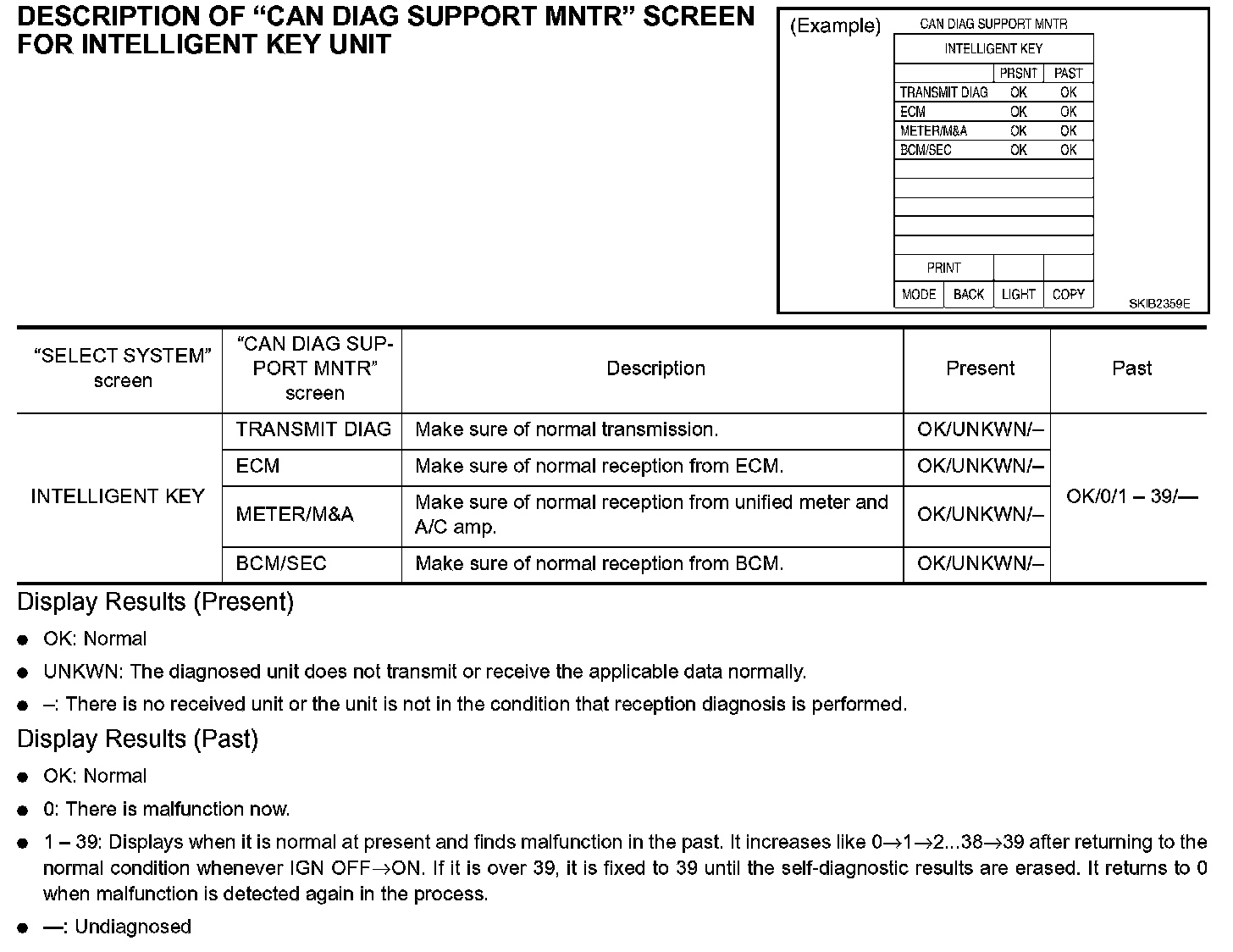

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR INTELLIGENT KEY UNIT




DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR BCM

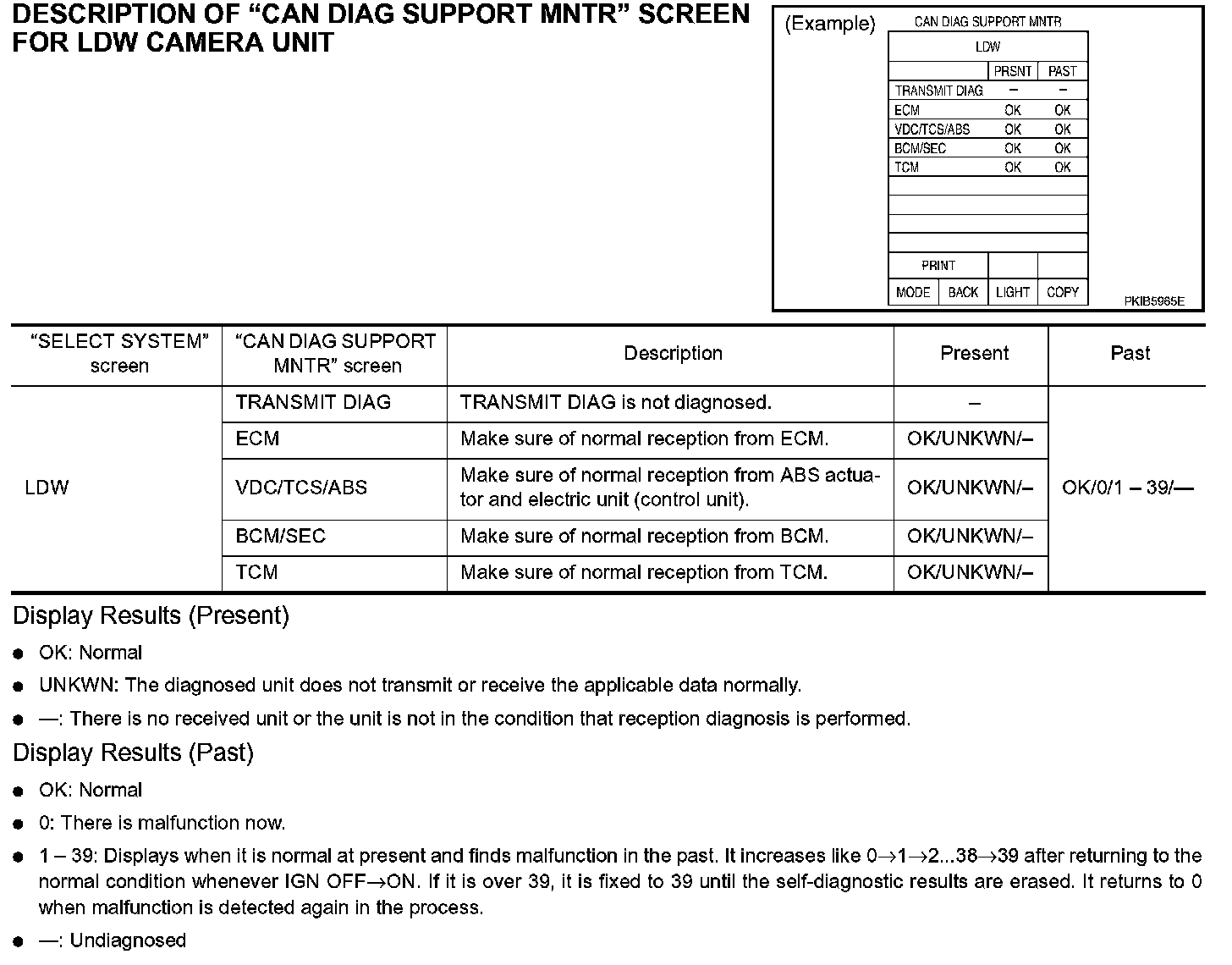

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR LDW CAMERA UNIT

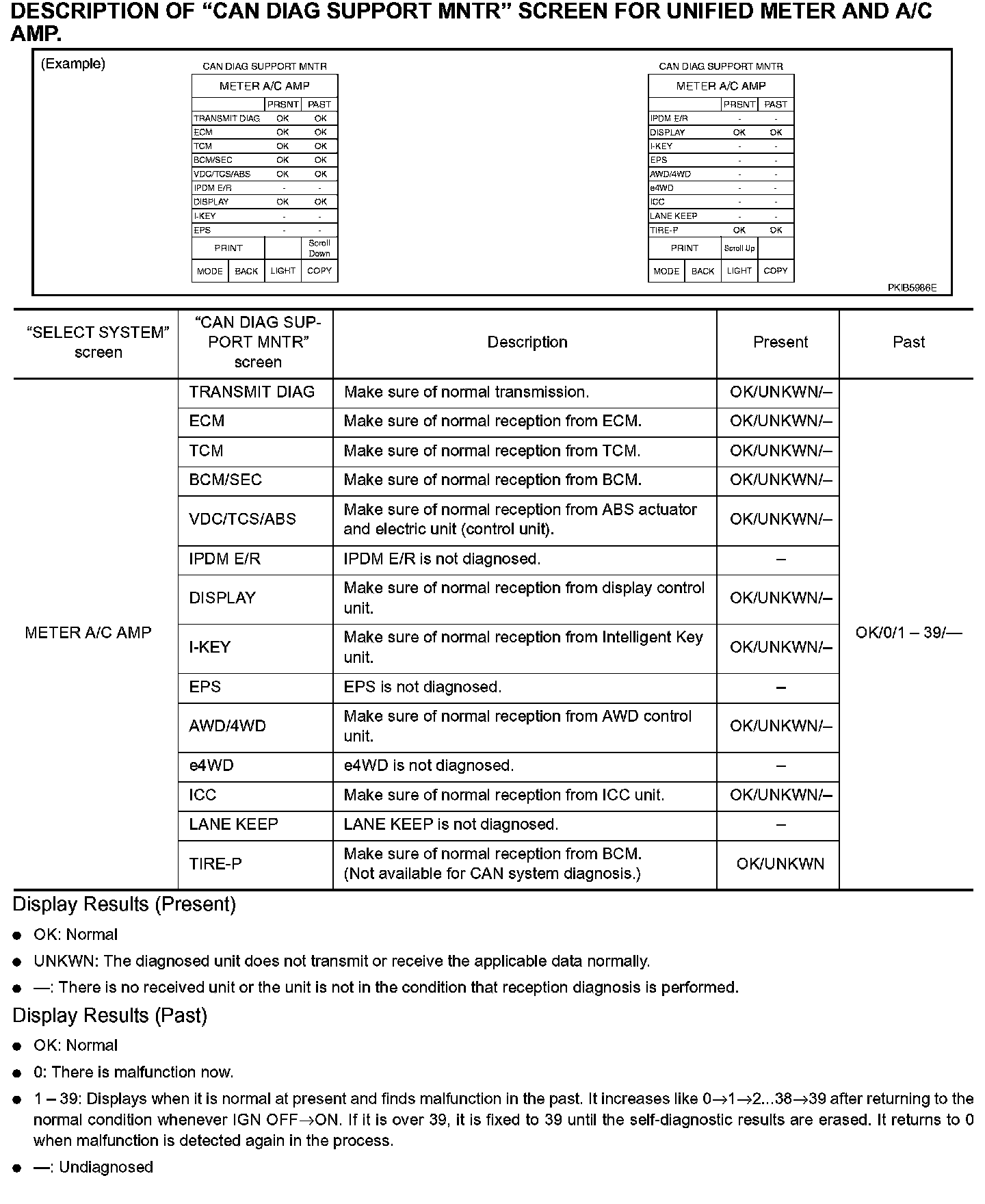

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR UNIFIED METER AND A/C AMP.

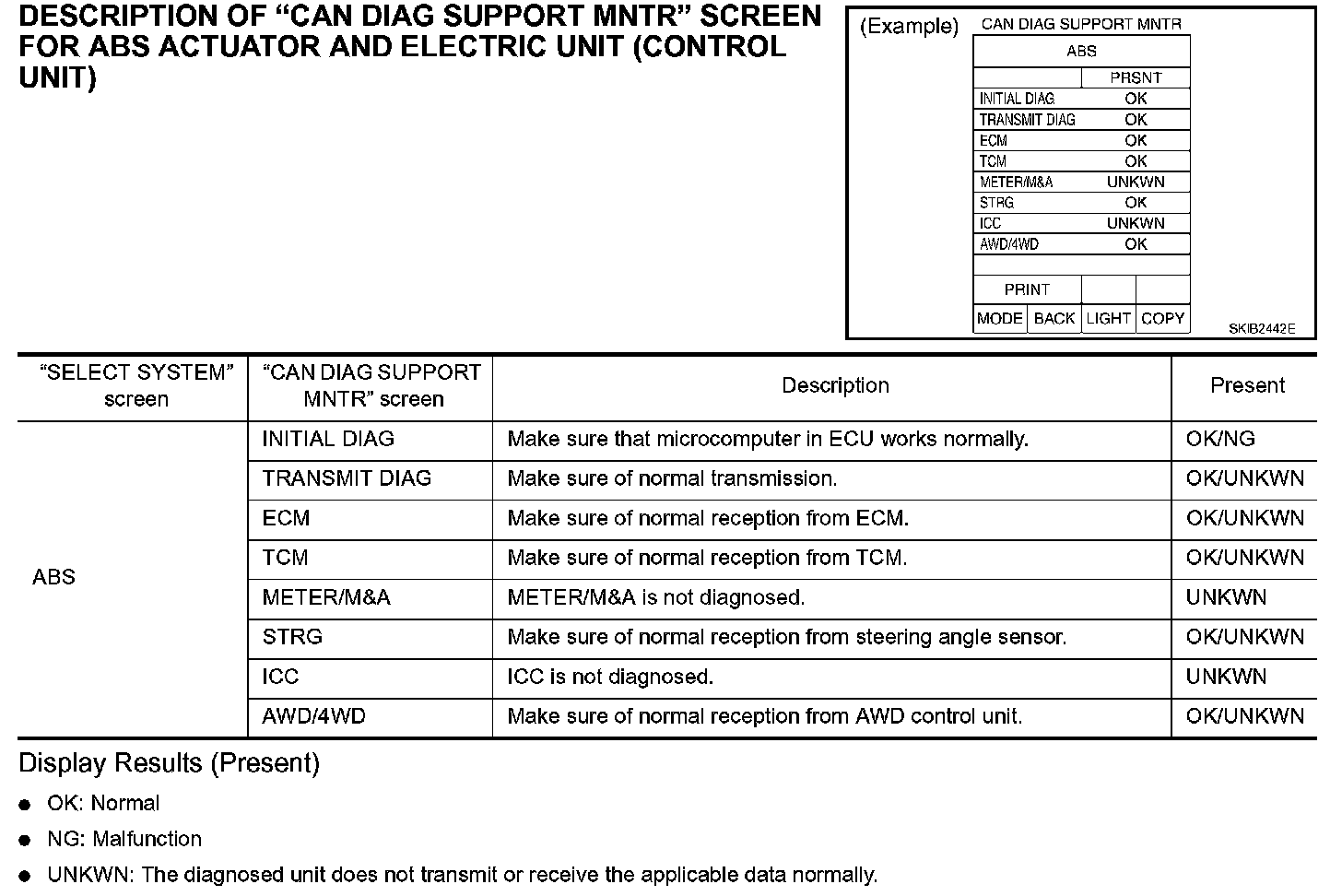

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

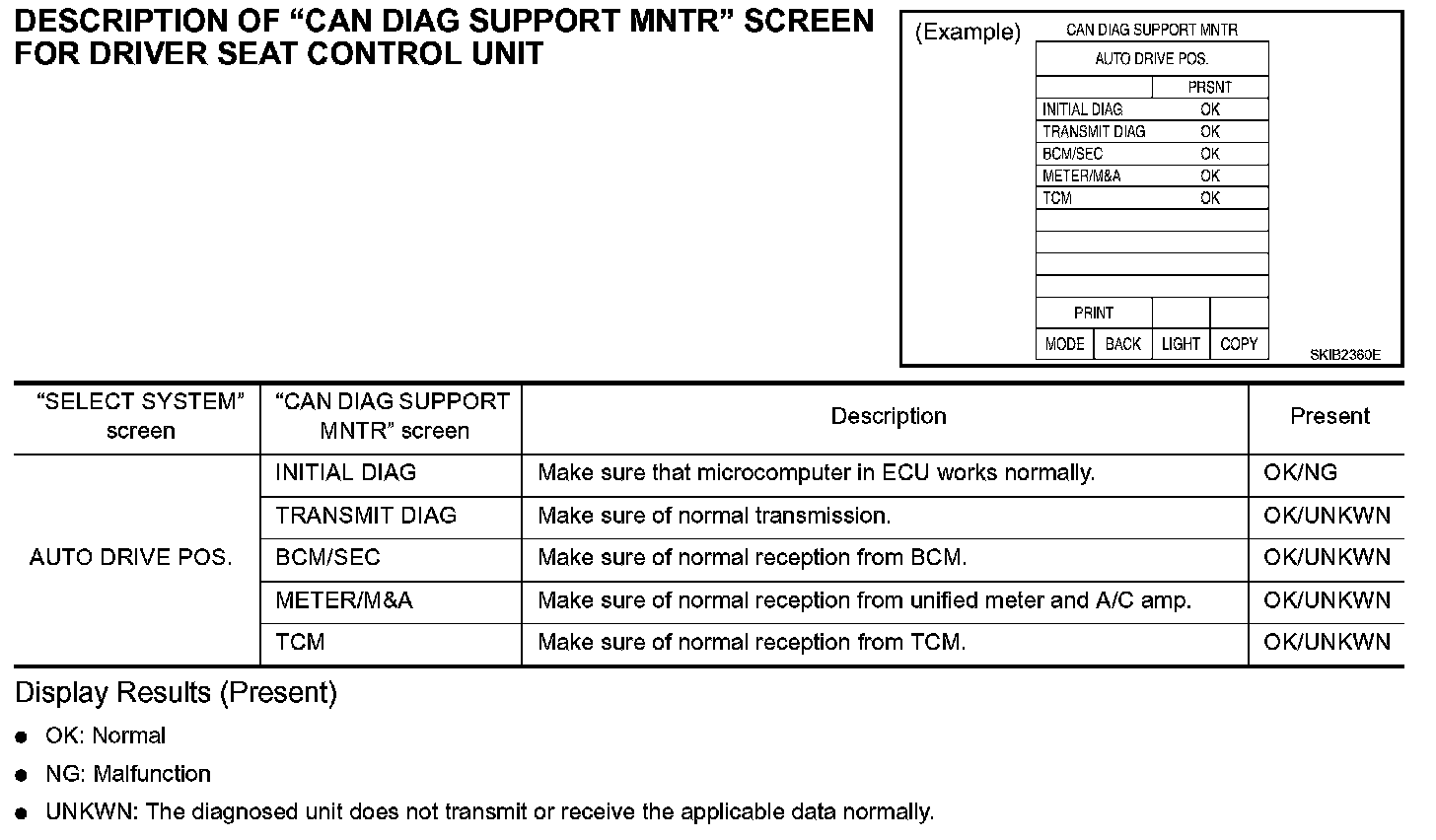

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR DRIVER SEAT CONTROL UNIT

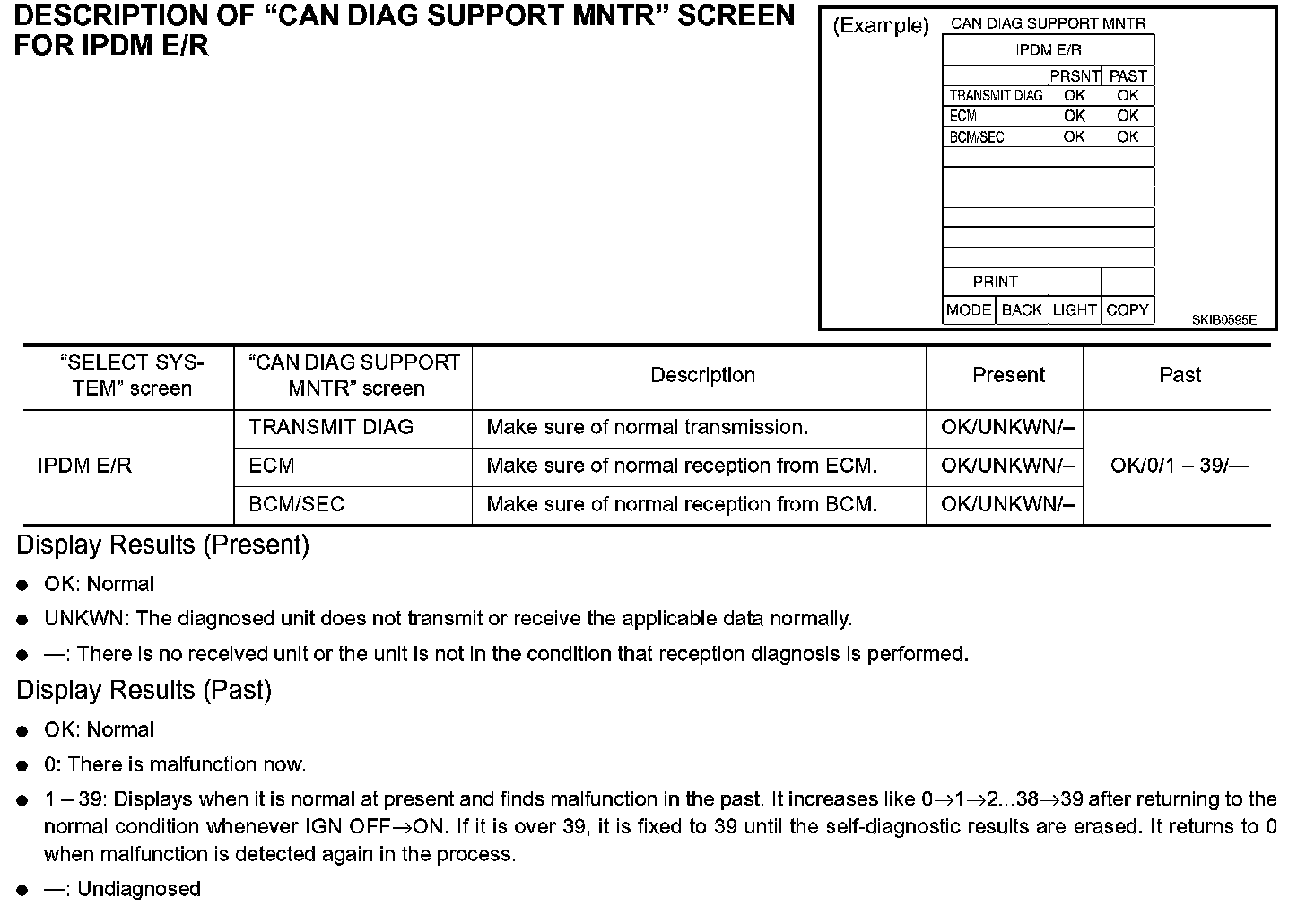

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR IPDM E/R

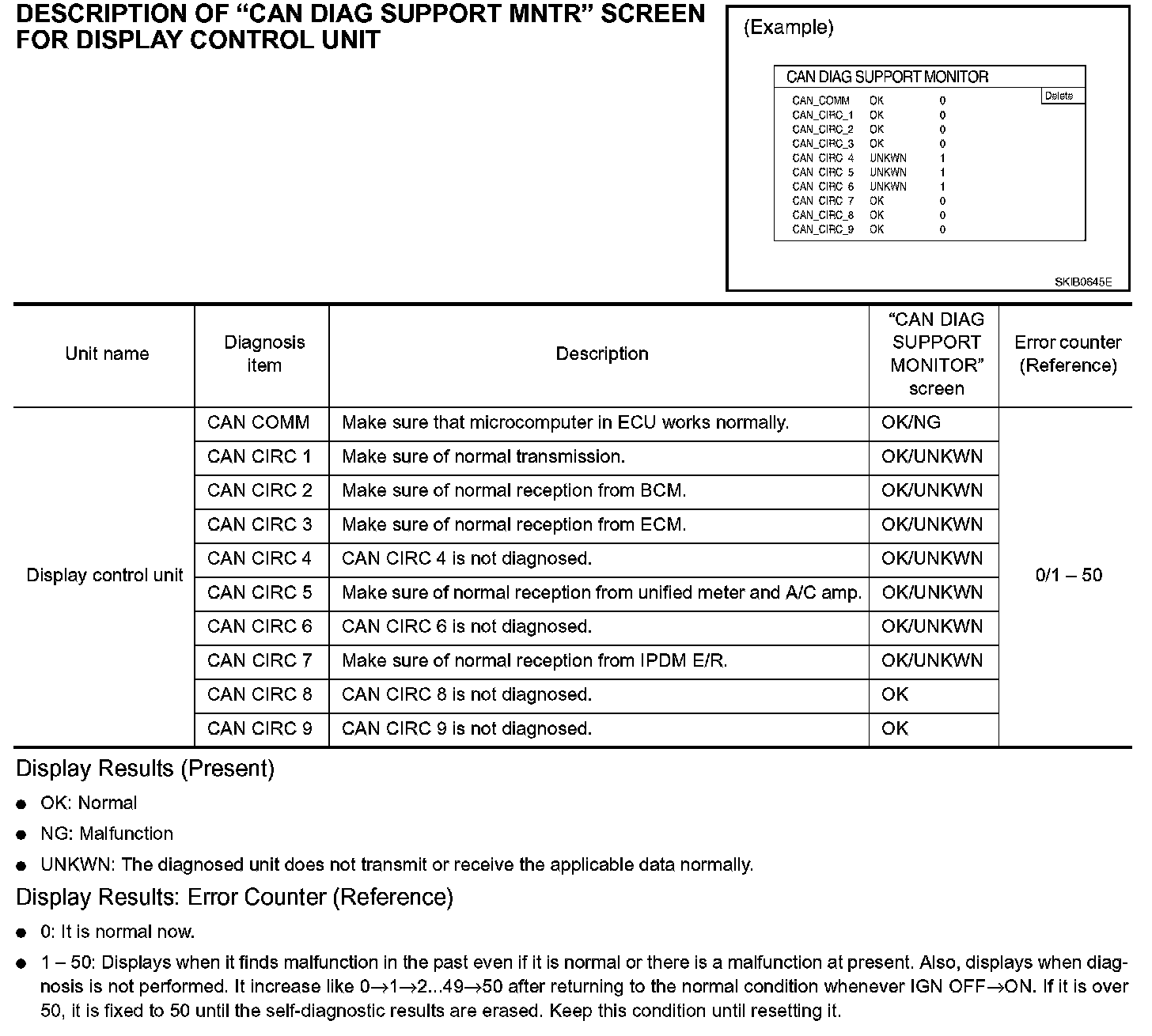

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR DISPLAY CONTROL UNIT
