Ignition Timing: Testing and Inspection
IGNITION TIMINGAny of following two methods may be used.
Method A 1.

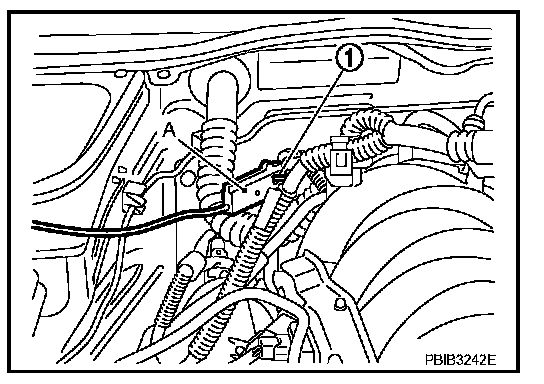

Attach timing light A to loop wire (1) as shown.
2.

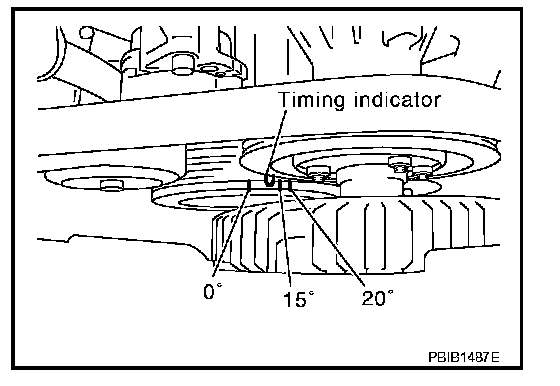

Check
ignition timing.
Method B 1.
Remove ignition coil No. 6.
2.

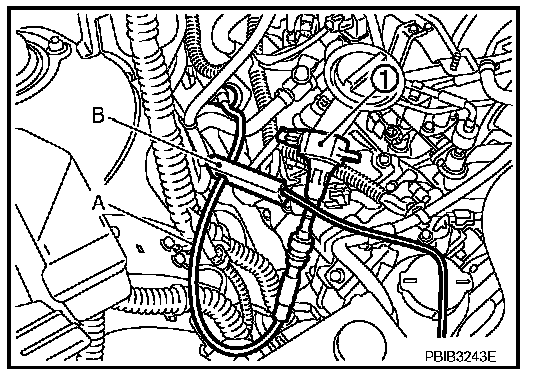

Connect ignition coil No. 6 (1) and
spark plug No. 6 with suitable high-tension wire A as shown, and attach timing light clamp B to this wire.
3.

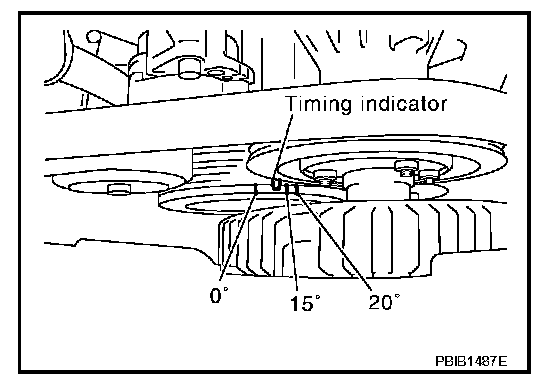

Check
ignition timing.
