Control Module Pinout Values

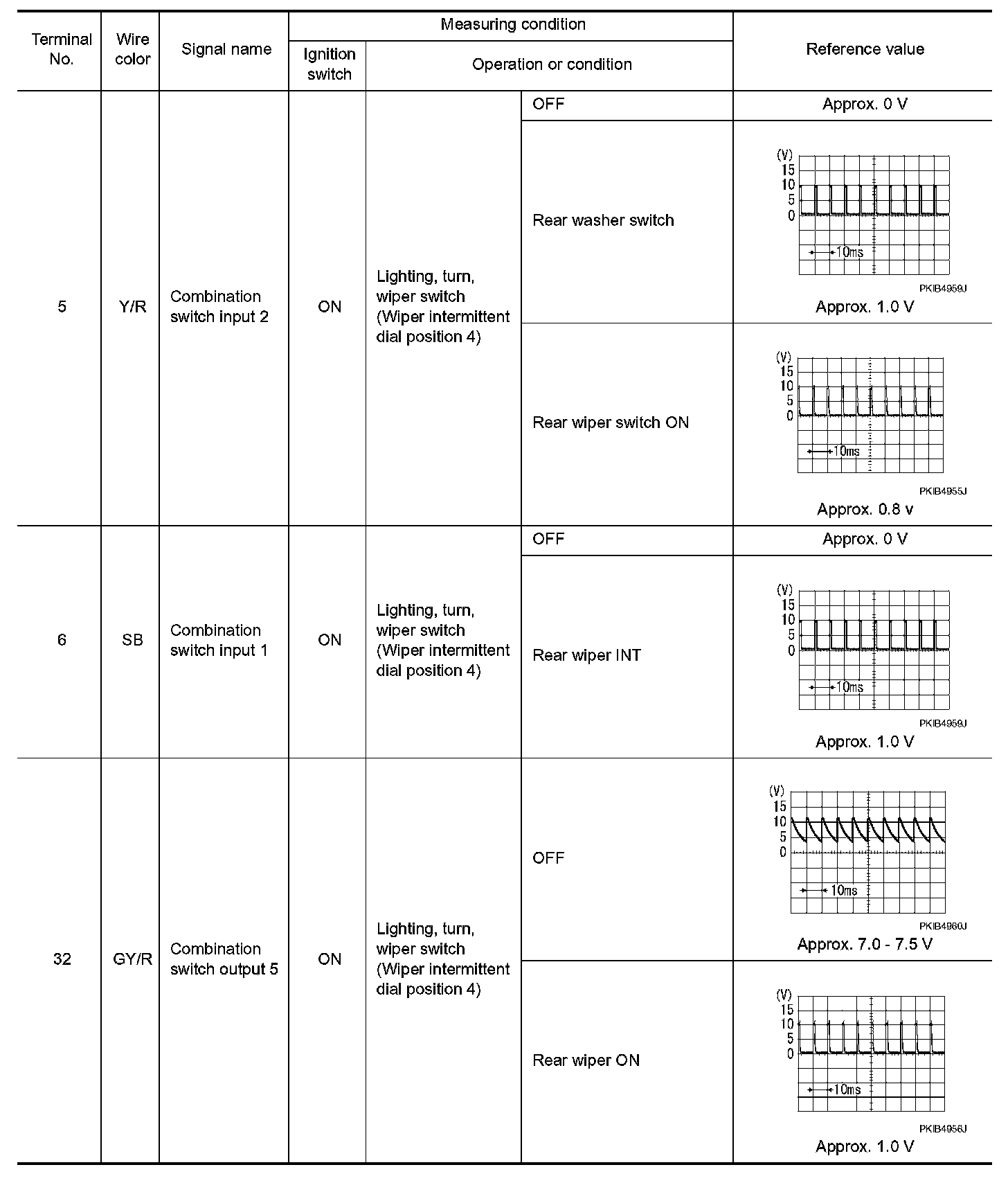

Terminals And Reference Values For BCM Part 1:

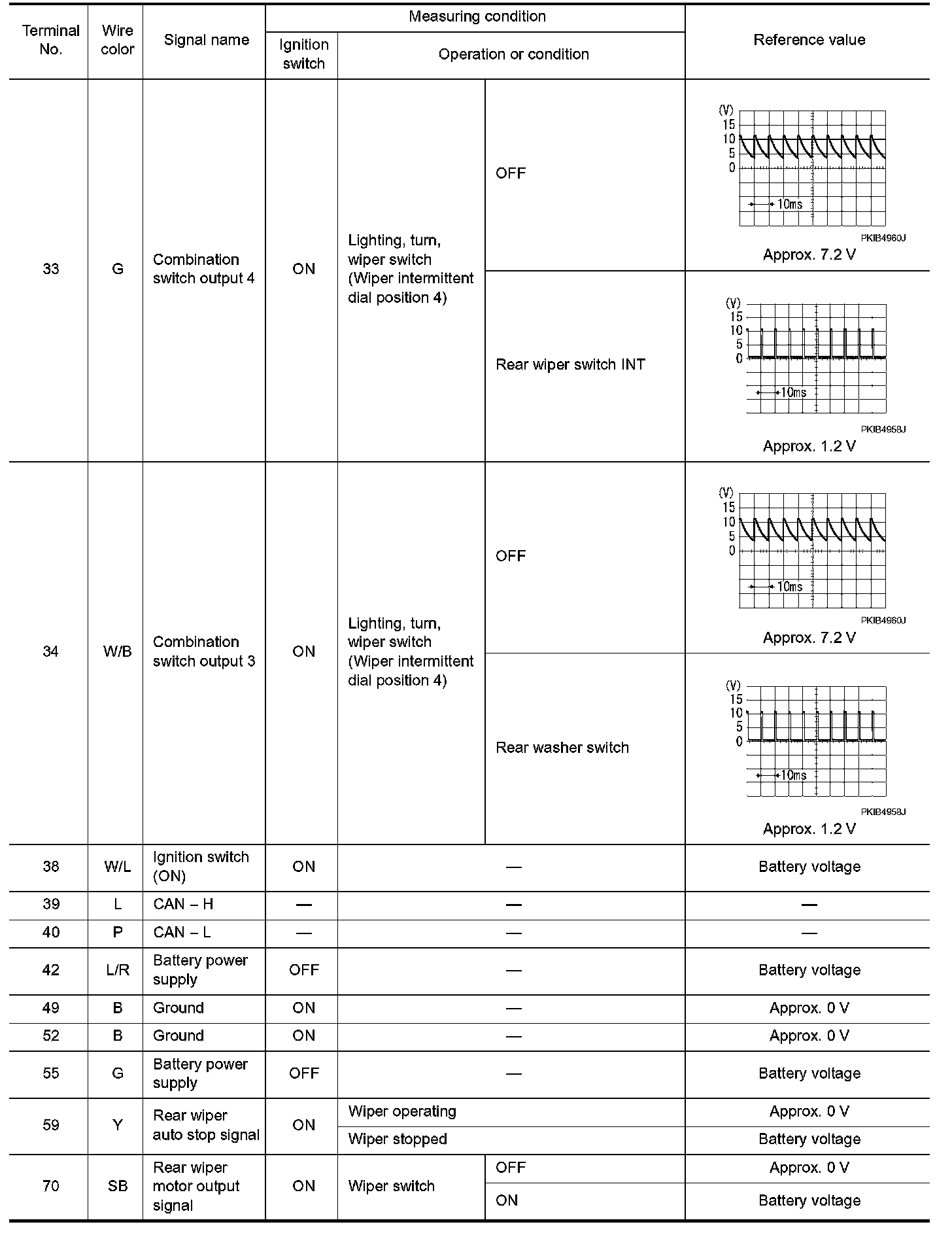

Terminals And Reference Values For BCM Part 2:
Terminals and Reference Values for BCM
CAUTION:
- Check combination switch system terminal waveform under the loaded condition with lighting switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
- Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position. Wiper dial position can be confirmed on CONSULT-II. Refer to LT-119, "DATA MONITOR". Scan Tool Testing and Procedures
