Traction Control Module: Service and Repair

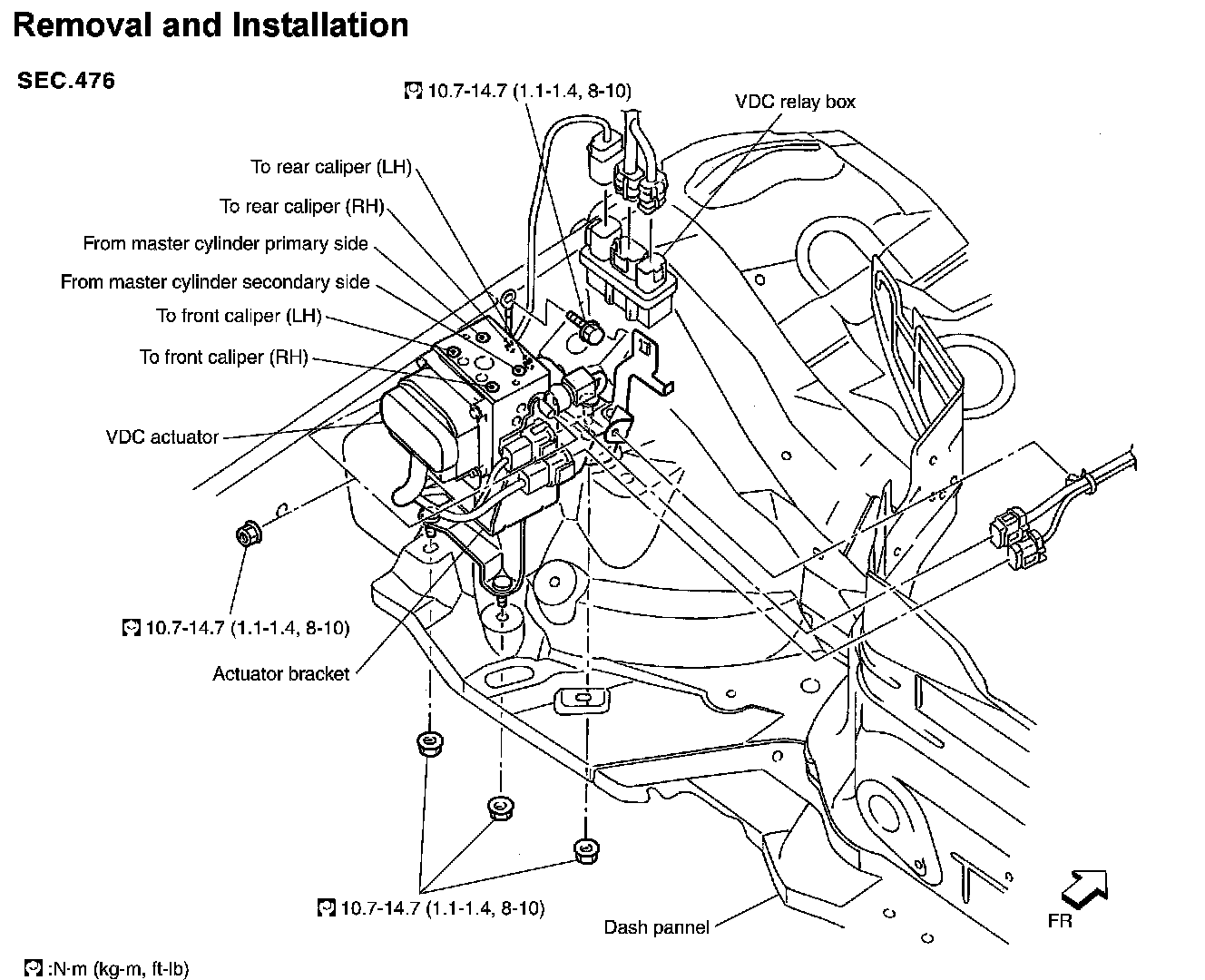

VDC/TCS/ABS ACTUATOR





Pay attention to the following when removing VDC actuator.

CAUTION:
^ Before servicing, disconnect the battery cable from the negative terminal.
^ To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use a flare nut crowfoot and torque wrench (commercial service tool).
^ Do not remove and install VDC actuator by holding harness.
^ After work is completed, bleed air from brake piping.
^ Be sure to securely connect the battery cable to the negative terminal.
