Splash Guard: Service and Repair

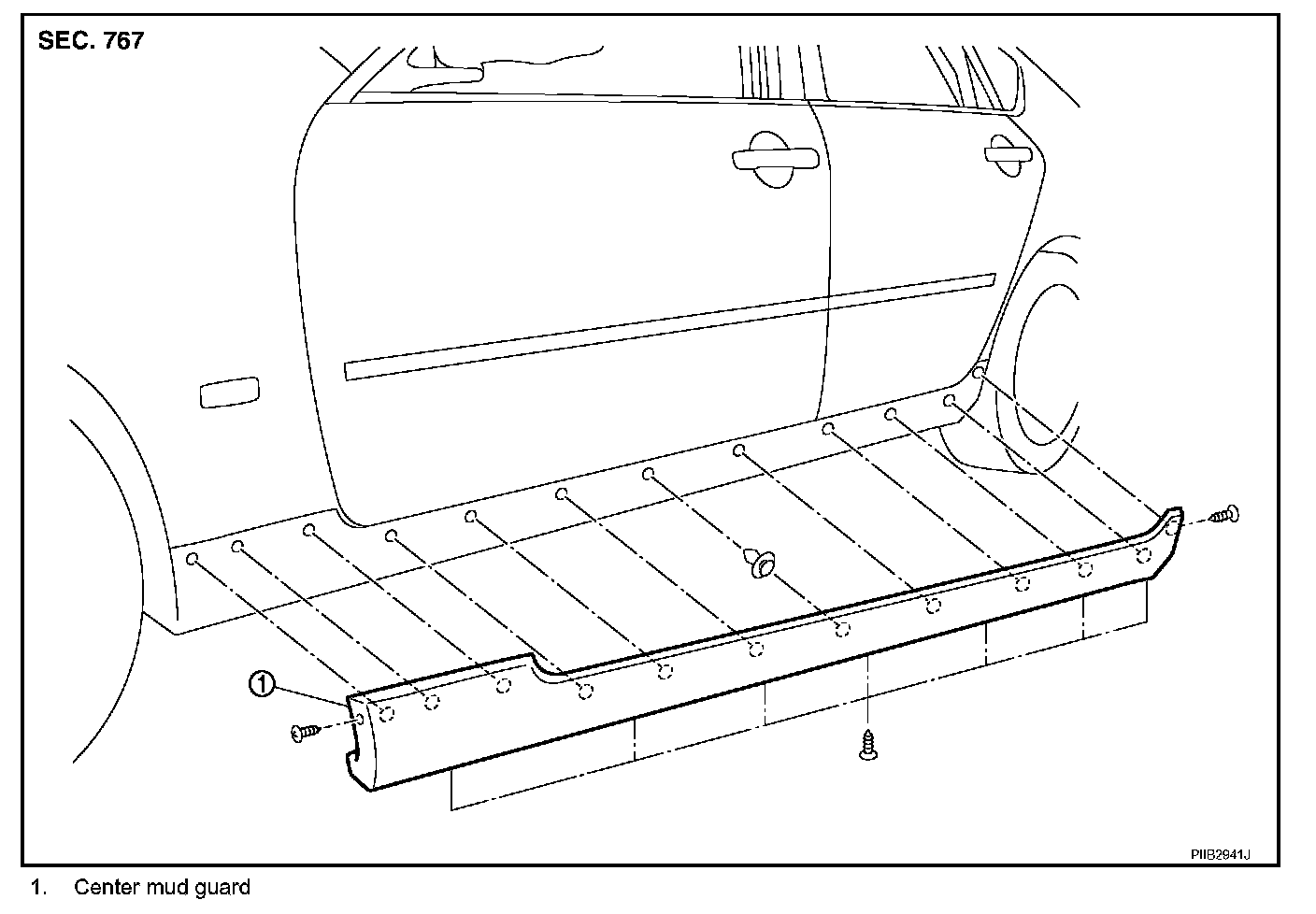

CENTER MUD GUARD




Removal and Installation

REMOVAL




1. Remove screw and nuts of wind deflector and remove wind deflector.
2. Remove screws of mudguard front/rear side.
3. Remove screws of mudguard lower side.
4. Fully open front door and rear door.
5. Remove clips from back of mudguard using clip clamp remover.
6. Remove center mudguard from body side.

INSTALLATION
Install in the reverse order of removal.

CAUTION: When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and then press them in.
