Intake Manifold
Intake Manifold (Lower) Tighten in numerical order as shown in the figure.
<-: Engine front
^
There are two types of mounting bolts. Refer to the following for locating bolts.
M8 x 90 mm (3.54 inch): 7, 8
M8 x 35 mm (1.38 inch): Except the above

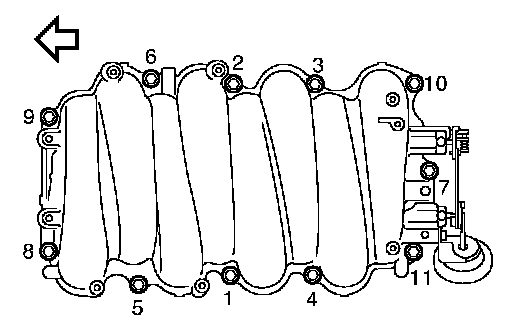

Intake Manifold (Upper) Tighten in numerical order as shown in the figure.
<-: Engine front
