System Specifications

Crankshaft Pulley bolt





Crankshaft pulley bolt torque
Step 1 93.1 Nm (9.5 kg-m, 69 ft. lbs.)

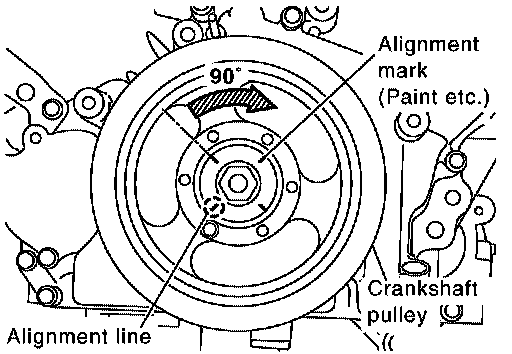

Step additional 90° (angle tightening)
Rotate the crankshaft pulley in normal direction (clockwise when viewed from engine front) to check for parts interference.

Timing Cover
Chain Case cover (left bank) 11.0 Nm (1.1 kg-m, 8 ft. lbs.)
Front cover bolts 152 Nm (15.5 kg-m, 112 ft. lbs.)
Chain Case cover (right bank) 11.0 Nm (1.1 kg-m, 8 ft. lbs.)





Install the front cover as follows:
Install a new O-ring on the cylinder block.





Check again that the timing mating marks on the timing chain and on each sprocket are aligned. Then install the front cover.





Install the bolts in the numerical order shown.
After tightening, re-tighten to the specified torque.

CAUTION: Be sure to wipe off any excessive liquid gasket leaking onto surface mating with oil pan.

M6 x 50 mm (1.97 inches) No. 1, 20, 25, 26, 27
M6 x 80 mm (3.15 inches) No. 4, 5, 7
M6 x 20 mm (0.79 inches) Except the above





Install the chain case cover (right bank) and (left bank).

Chain Tensioner
Chain tensioner (right bank) 6.9 Nm (0.70 kg-m, 61 inch lbs.)
Chain tensioner (left bank) 6.9 Nm (0.70 kg-m, 61 inch lbs.)
