Ignition Coil: Service and Repair

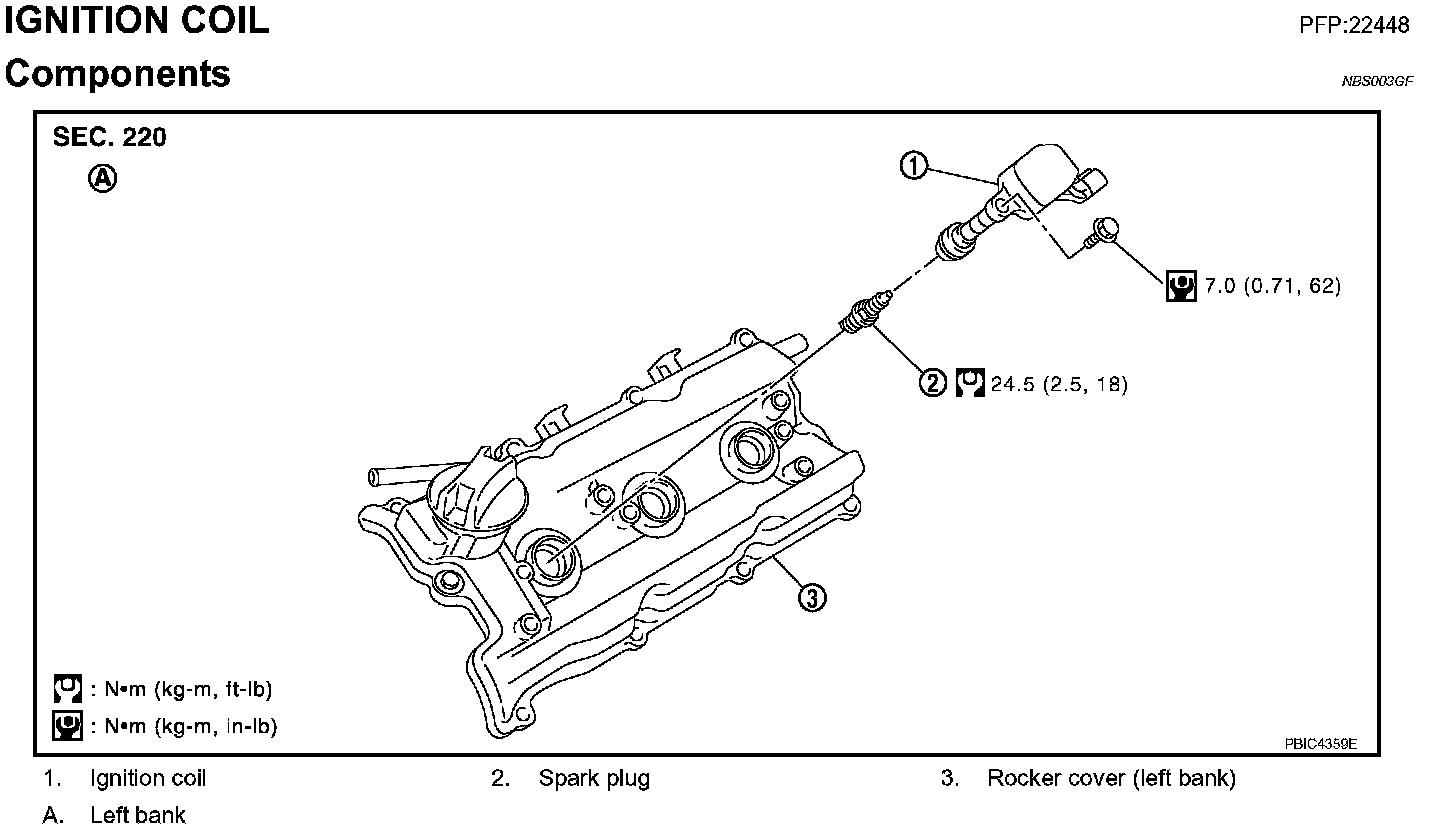

IGNITION COIL





Removal and Installation
REMOVAL
1. Remove engine cover with power tool.
2. Remove air duct (At the left bank side, remove ignition coil).
3. Move aside harness, harness bracket, and hoses located above ignition coil.
4. Disconnect harness connector from ignition coil.
5. Remove ignition coil.

CAUTION: Do not shock it.

INSTALLATION
Installation is the reverse order of removal.
