Distance Sensor: Service and Repair

ON-VEHICLE REPAIR

ICC SENSOR INTEGRATED UNIT

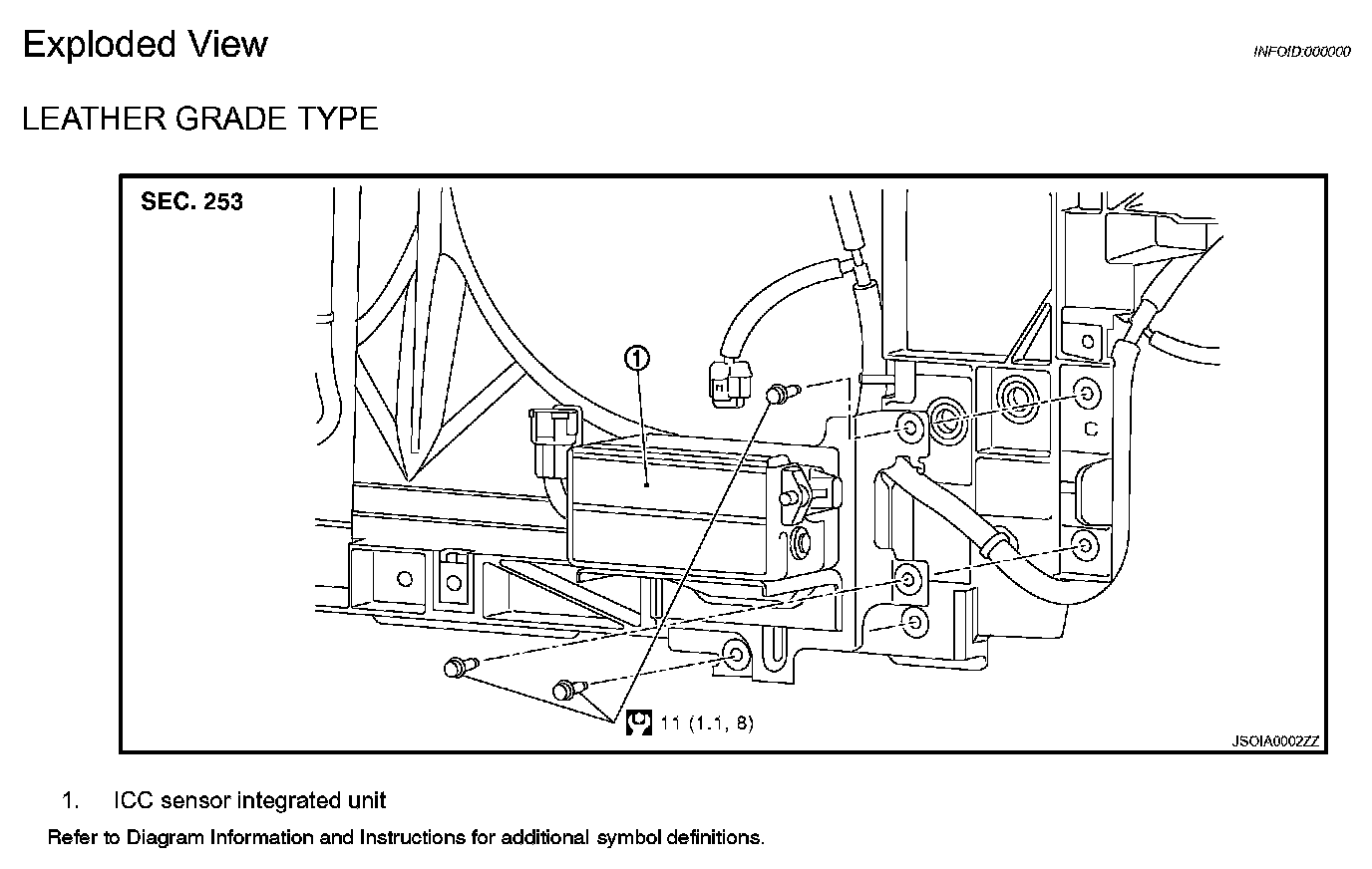

Exploded View CCS-110:

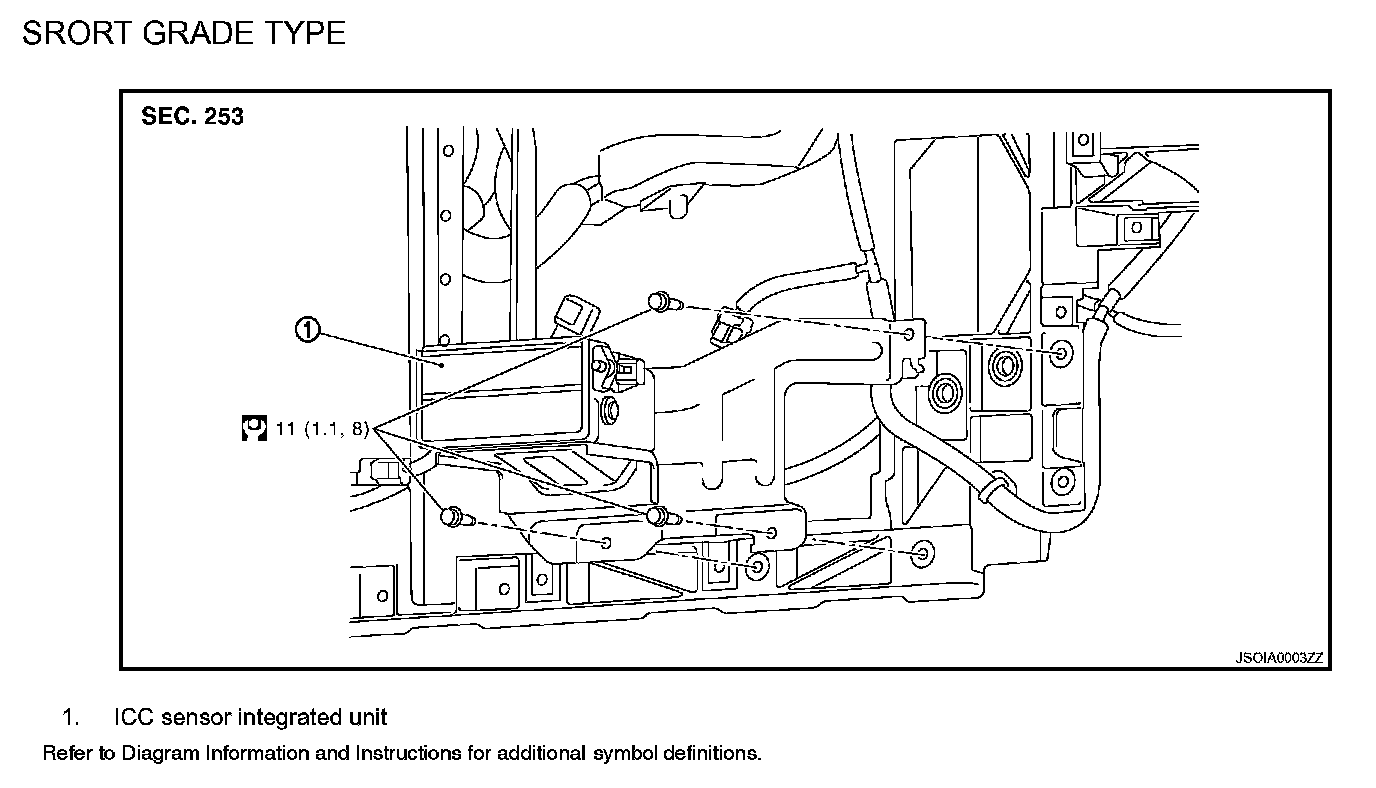

Exploded View CCS-110:

Exploded View

Removal and Installation

REMOVAL
1. Remove the front bumper fascia.
2. Disconnect ICC sensor integrated unit connector.
3. Remove mounting bolts from ICC sensor integrated unit
4. Remove ICC sensor integrated unit.

INSTALLATION
Install in the reverse order of removal.
