Home >> Infiniti >> 2007 >> G35 Sedan V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Module >> With 4WAS >> 4WAS Front Control Unit

4WAS Front Control Unit

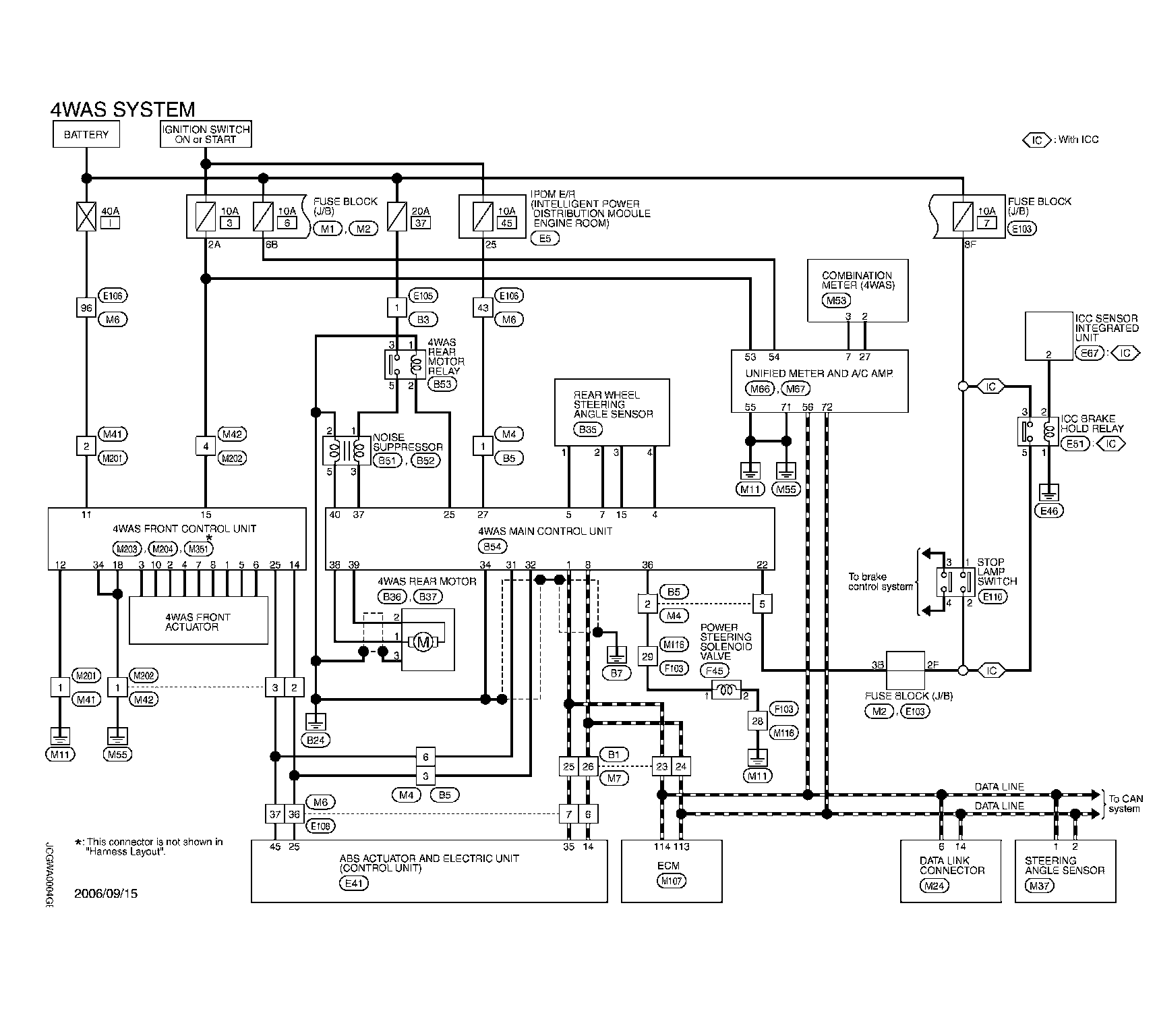

4WAS System:
