With Left and Right Ventilation Temperature Separately Control System

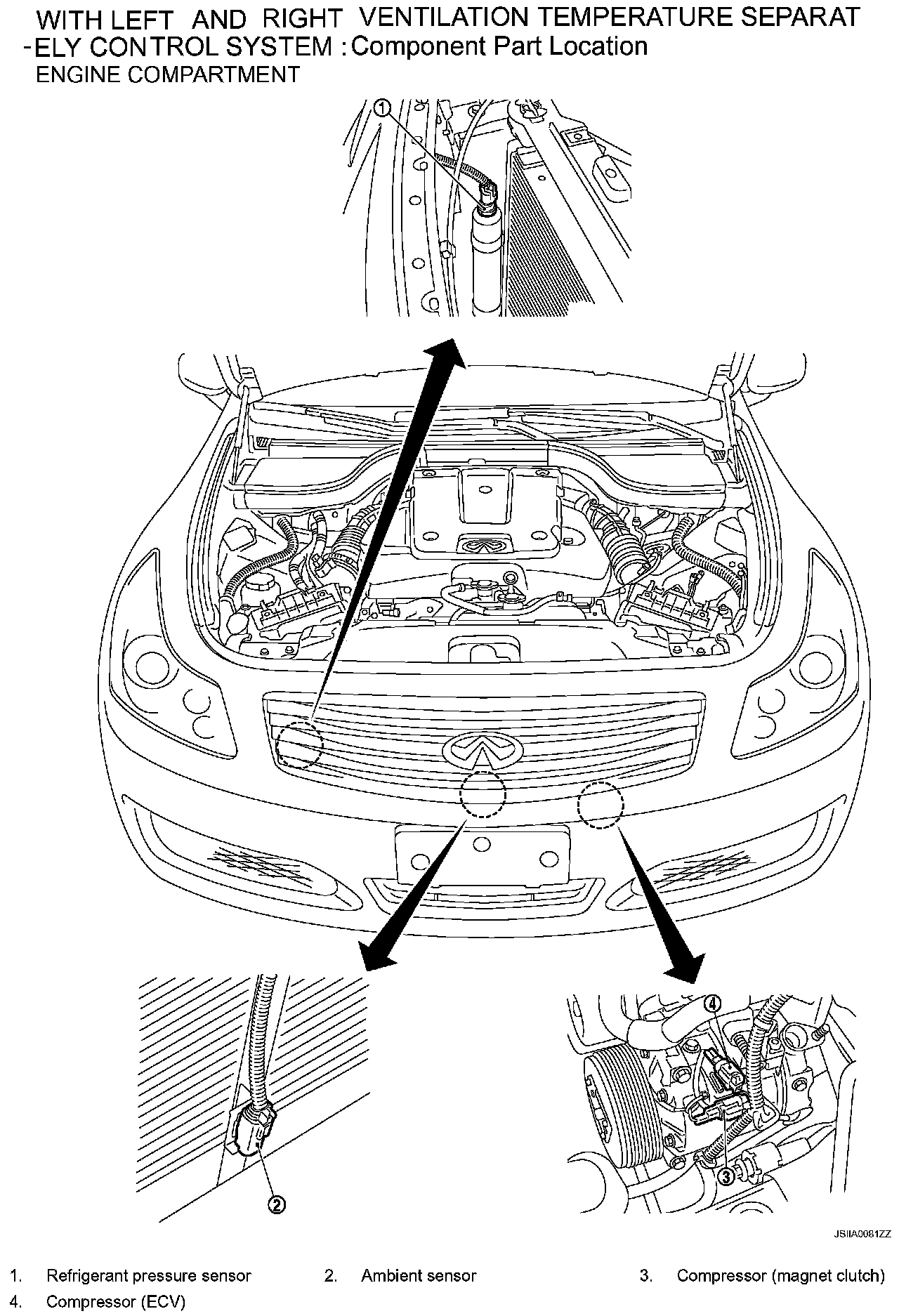

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : Component Part Location

Component Part Location:




ENGINE COMPARTMENT

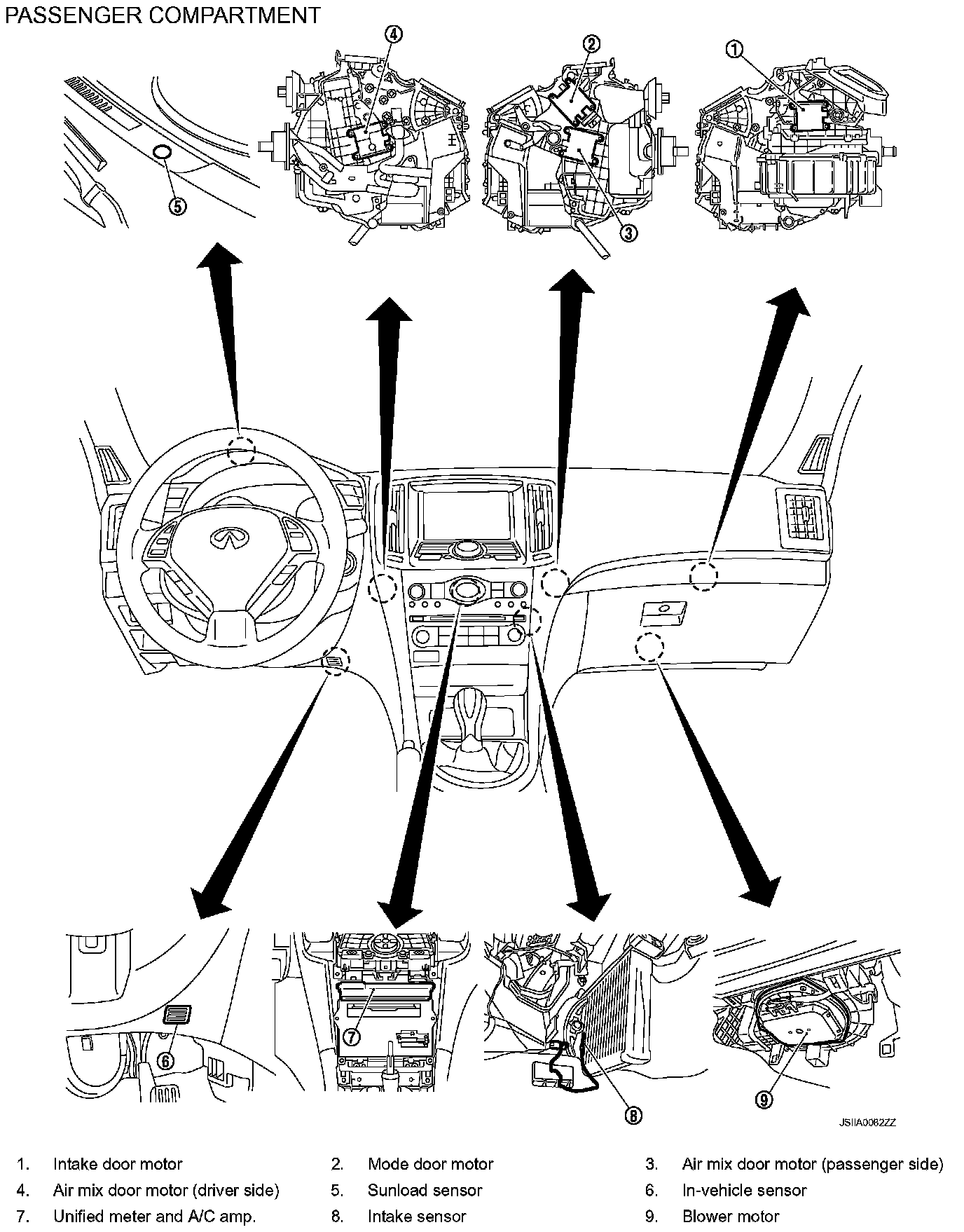

Component Part Location:




PASSENGER COMPARTMENT
