Toe-In

Toe-In

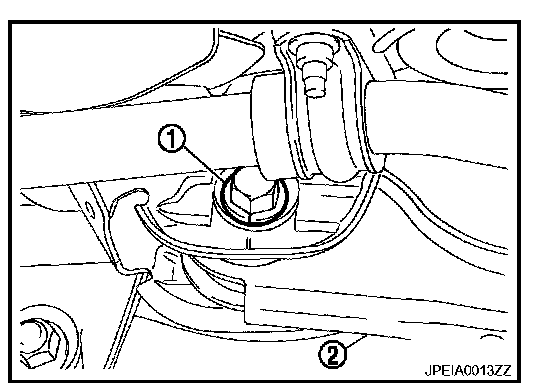

^ If toe-in is not within the specification, adjust with adjusting bolt (1) in rear lower link (2).

CAUTION: Be sure to adjust equally on RH and LH side with adjusting bolt.

- If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
