CAN System Specification Chart

FUNCTION DIAGNOSIS

CAN COMMUNICATION SYSTEM




CAN System Specification Char

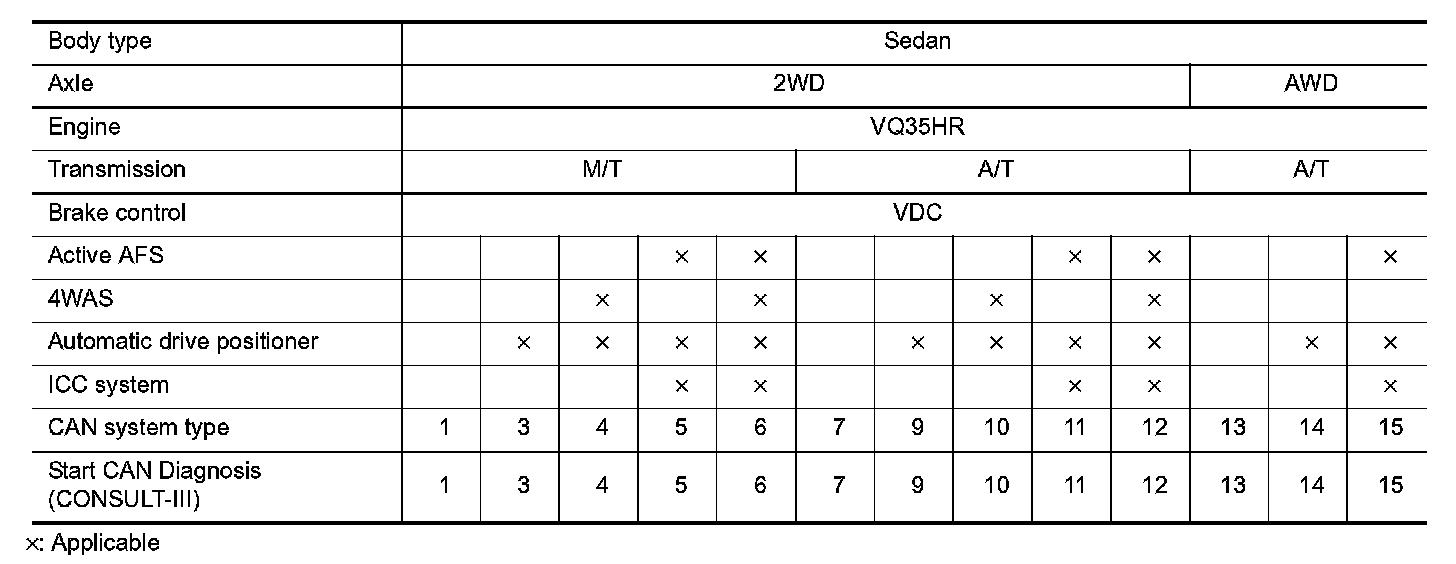

Determine CAN system type from the given specification chart.

NOTE: Refer to Information Bus for how to use CAN system specification chart. Diagnosis and Repair Workflow

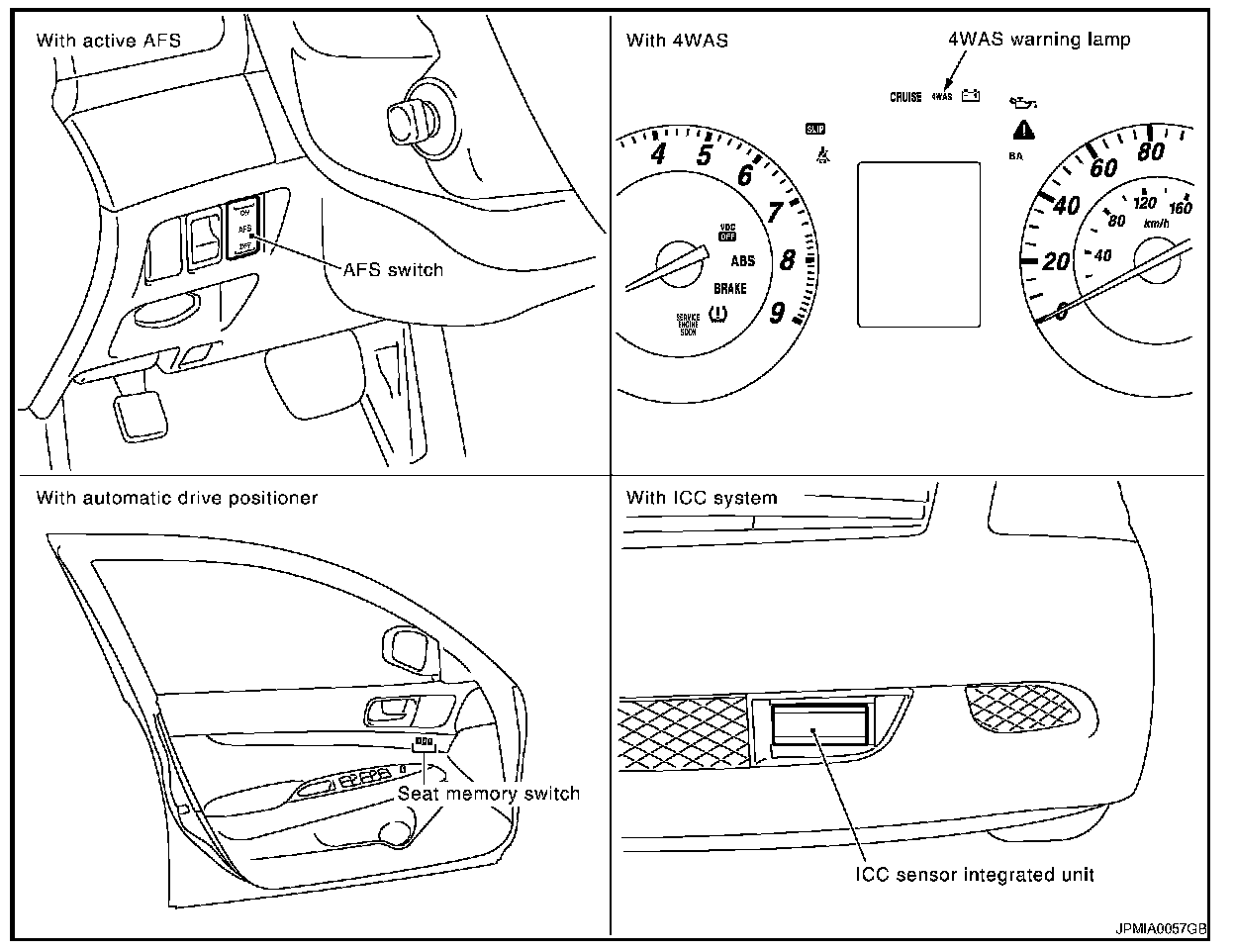

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE: Check CAN system type from the vehicle shape and equipment.
