Home >> Infiniti >> 2007 >> G35 Sedan V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Front Suspension >> Exploded View

Exploded View

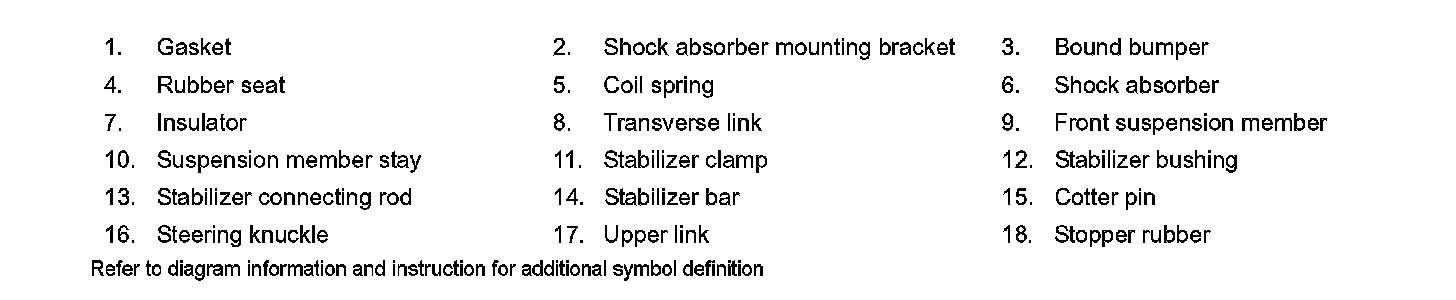

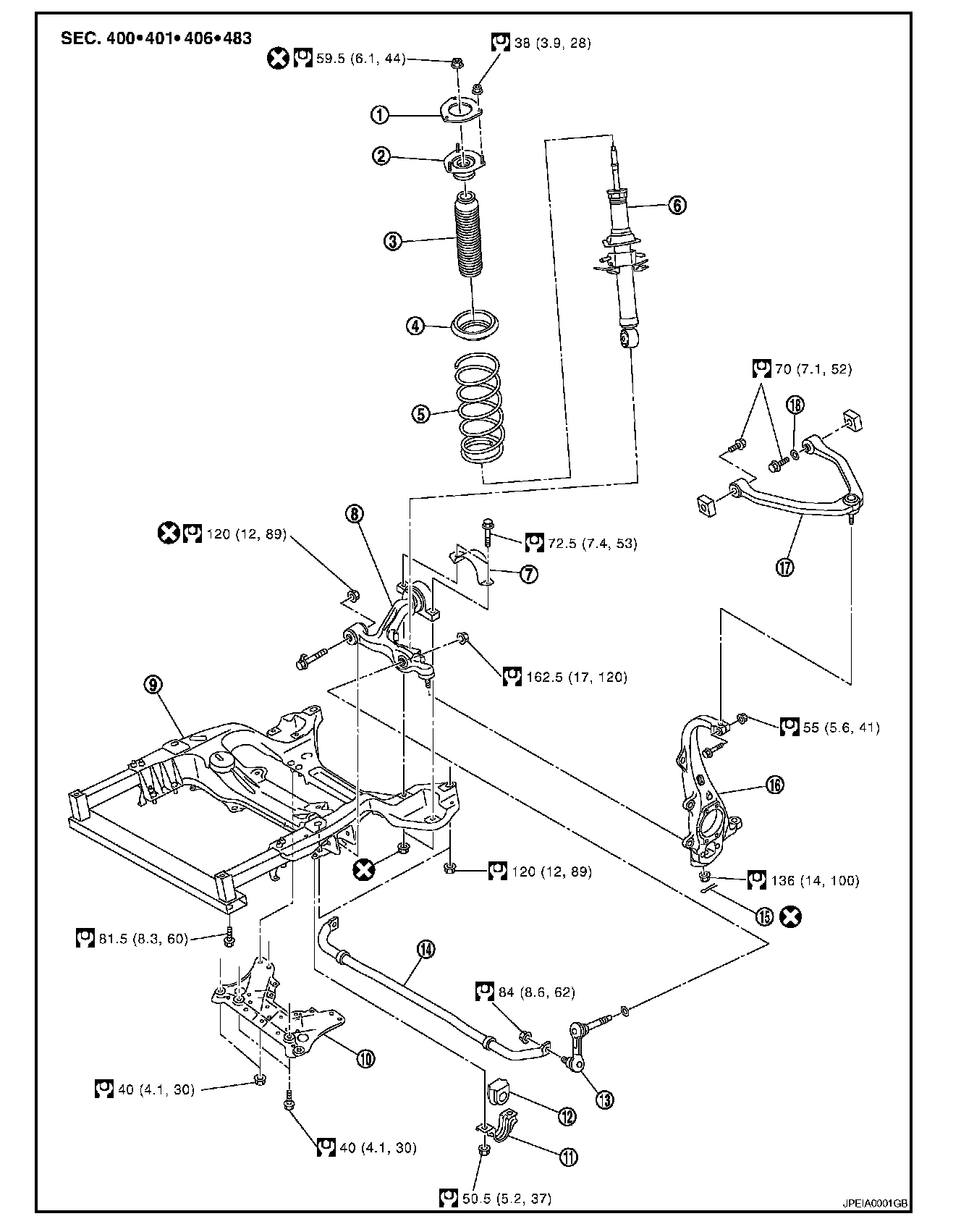

Exploded View FSU-19 (Part 1):



Exploded View FSU-19 (Part 1):
