Access Cover: Service and Repair

ENGINE COVER

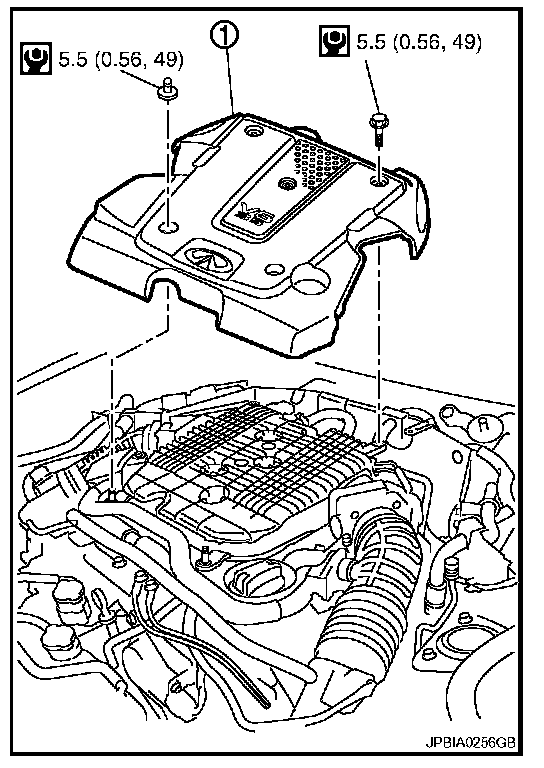

EM-25 Exploded View:





1: Engine cover

Removal and Installation

REMOVAL





Loosen mounting bolts and nuts in the reverse order as shown in the figure, and then remove engine cover.

CAUTION:
Never damage or scratch engine cover when installing or removing.

INSTALLATION





Install engine cover, and then tighten mounting bolts and nuts in numerical order as shown in the figure.

CAUTION:
Never damage or scratch engine cover when installing or removing.
