Welcome Light Function Does Not Operate

WELCOME LIGHT FUNCTION DOES NOT OPERATE

Description

NOTE:
- Before performing the diagnosis following procedure, check "Work Flow". Refer to DLK-7, "Work Flow". Diagnosis and Repair Workflow
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.

CONDITIONS OF VEHICLE (OPERATION CONDITIONS)
- Intelligent Key system (door lock function) is normal.
- All operation conditions are satisfied. Refer to DLK-32, "WELCOME LIGHT FUNCTION : System Description". Welcome Light Function

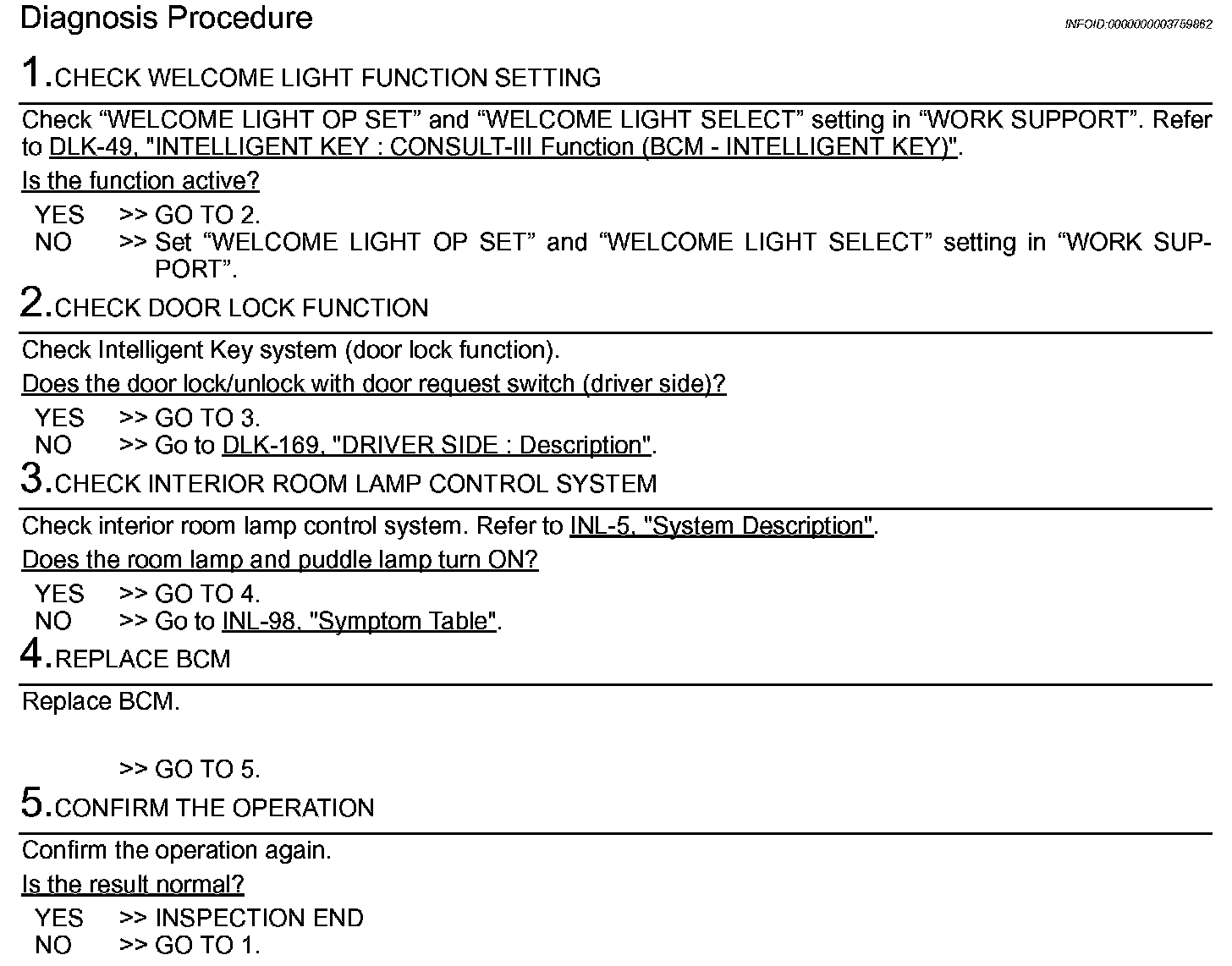

Diagnosis Procedure

Step 1-5:
