Trunk / Liftgate Lock: Service and Repair

BACK DOOR LOCK

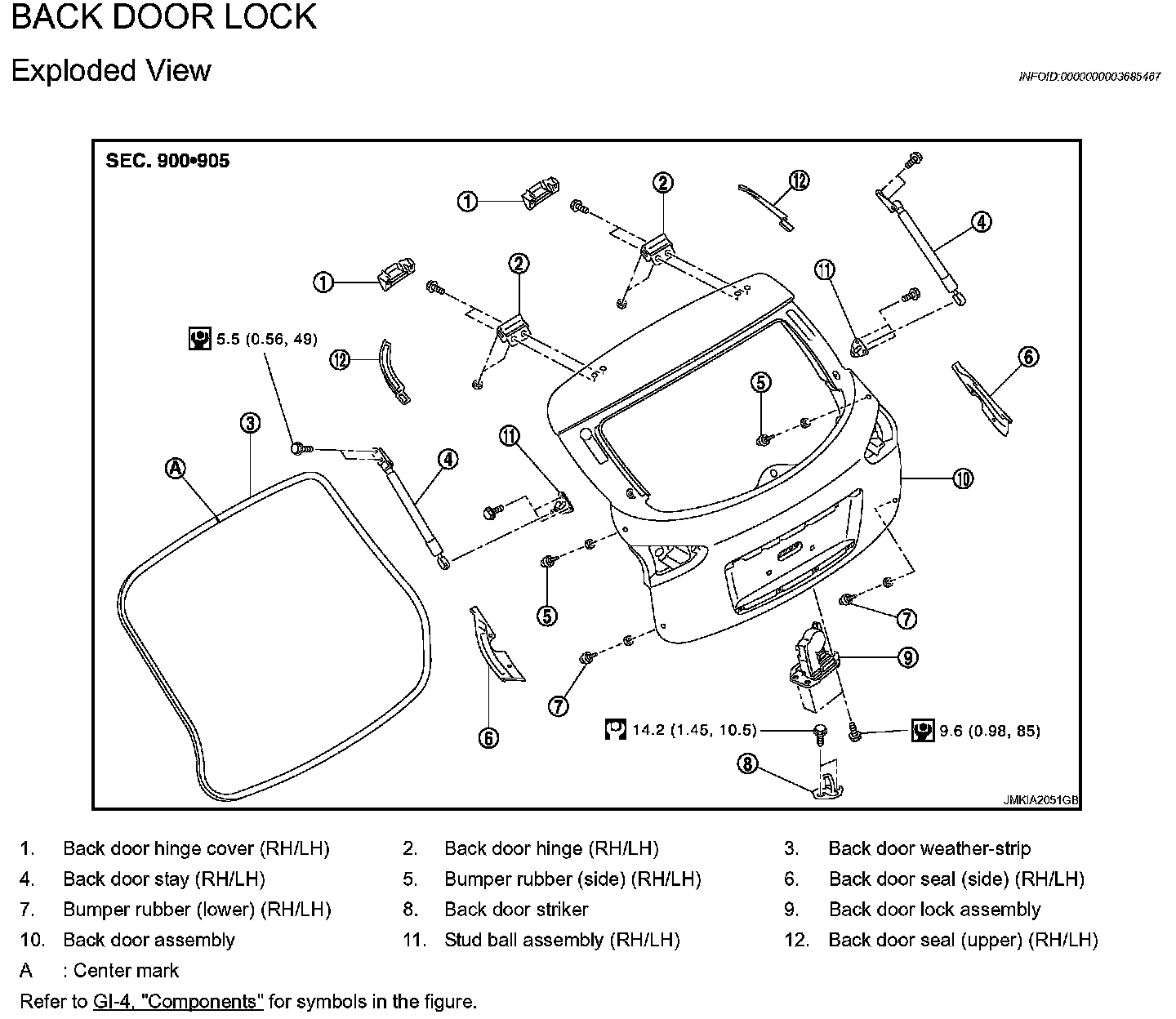

Exploded View

DLK-255 Exploded View:

Removal and Installation

REMOVAL
1. Remove back door finisher inner.
2. Disconnect back door lock assembly and back door opener switch connectors.
3. Remove back door lock mounting bolts, and then remove back door lock assembly.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Check back door open/close, lock/unlock operation after installation.
