Reclining Sensor
RECLINING SENSORDescription -
The reclining motor is installed to the seatback frame.
-
The pulse signal is inputted to the driver seat control unit when the reclining is operated.
-
The driver seat control unit counts the pulse and calculates the reclining amount of the seat.
Component Function CheckStep 1:

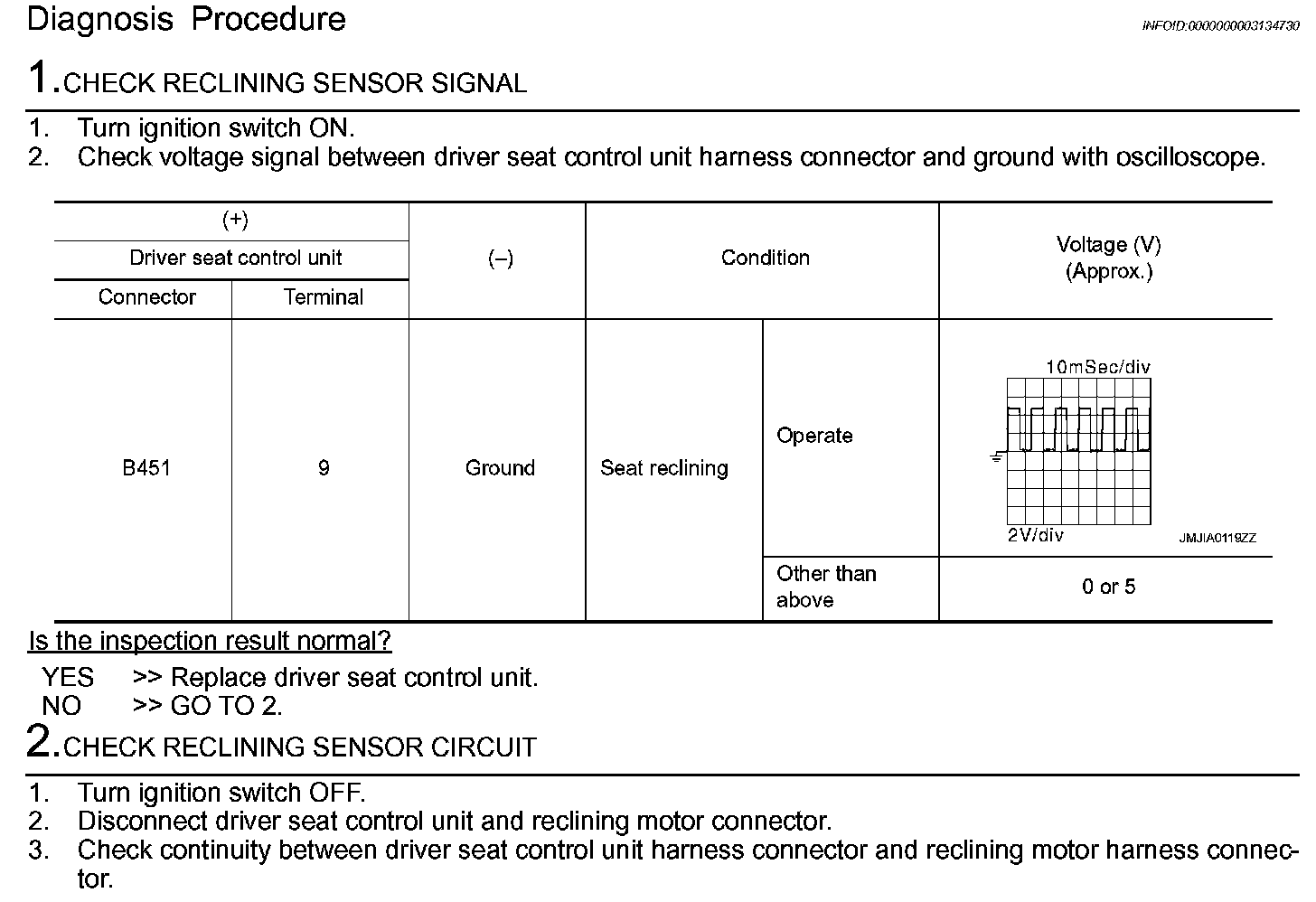

Diagnosis ProcedureStep 1-2:

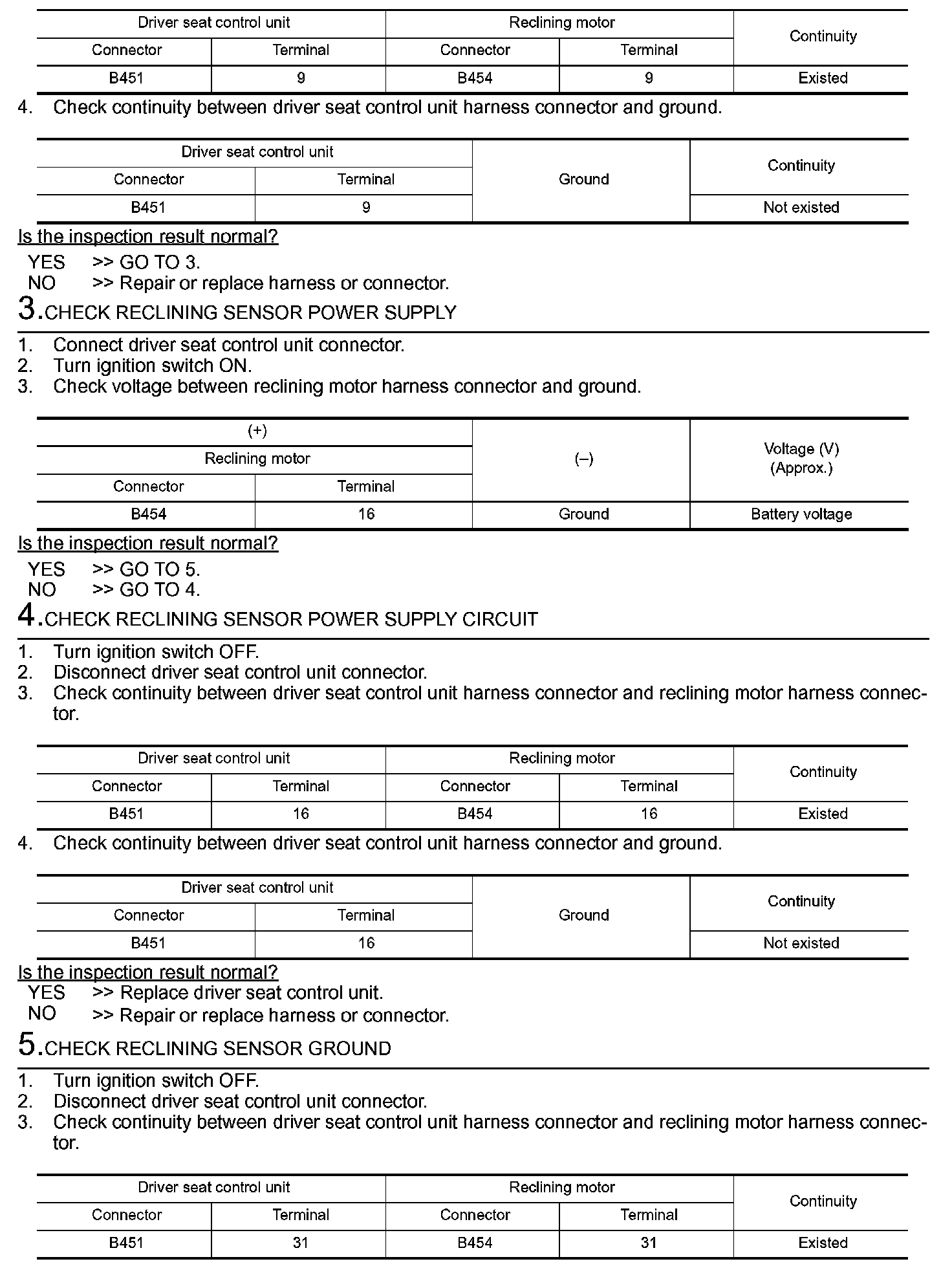

Step 2 (Continued)-5:
Step 5 (Continued):
